LG-RD350 Dicing Machine

The LG-RD350 is a high-performance industrial dicing solution designed by Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD. This machine is specifically engineered for precision cutting of frozen meat and root vegetables, featuring a professional sandblasted surface for enhanced durability and a clean, industrial finish.

• Primary Material: Main body constructed from SUS304 food-grade stainless steel.
• Blade Material: High-strength 440C stainless steel for superior sharpness and longevity.
• Export Classification: Handled under HS Code 8438600000 for international trade.

The following parameters define the operational capabilities of the LG-RD350:

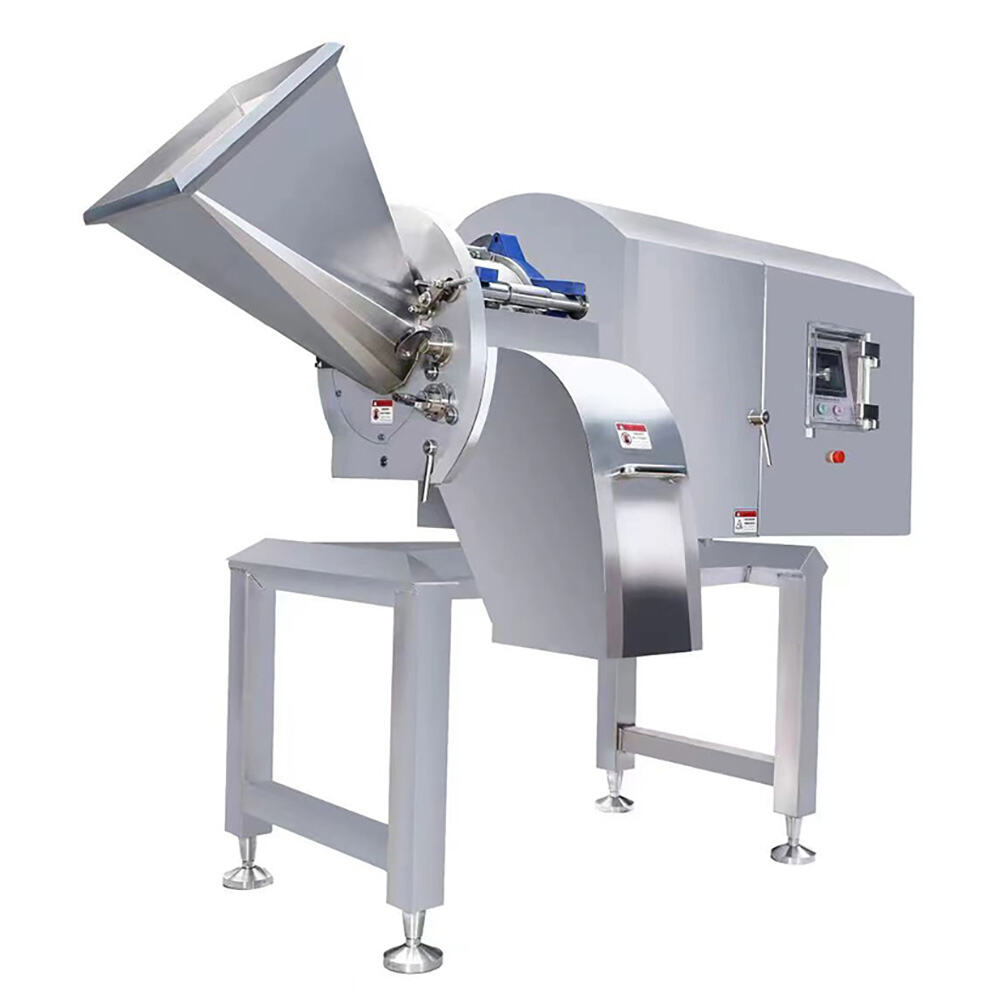

As illustrated in photobank-4.jpg, the LG-RD350 offers a robust design with multi-functional capabilities:

• 3-in-1 Processing: By simply changing the 440C blade sets, this machine can perform three distinct functions:
  • Dicing (Cubes)
  • Stripping (Strips/Fries)
  • Slicing (Slices)
• Blade Configuration: Note that one set of specifications (e.g., 10mm) requires one corresponding set of dedicated tools to ensure maximum cutting uniformity.
• Variable Frequency Control: The 0–50 Hz adjustable frequency allows operators to fine-tune the cutting speed based on the texture and temperature of the raw material.
• Frozen Material Optimization: Specifically calibrated for materials at $-3^{\circ}\text{C}$ to $-10^{\circ}\text{C}$, ensuring clean edges without damaging the product's cellular structure.

• Preparation: Ensure the machine is stabilized on its 450kg base. Check that the 440C blades are installed correctly for the desired output (dice, strip, or slice).
• Startup: Adjust the frequency via the control panel to match the production requirement (up to 1,500 kg/h).
• Sanitation: The SUS304 body and sandblasted surface are designed for easy wash-down. Always disconnect power before cleaning the blade chamber.
• Temperature Control: For best results with frozen meat, maintain the core temperature of the product within the $-3C to $-10C range.

Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD

We provide full technical documentation and support for international exports to Southeast Asia, Pakistan, Vietnam, and beyond. All equipment is built to withstand the rigorous demands of global food processing standards.
