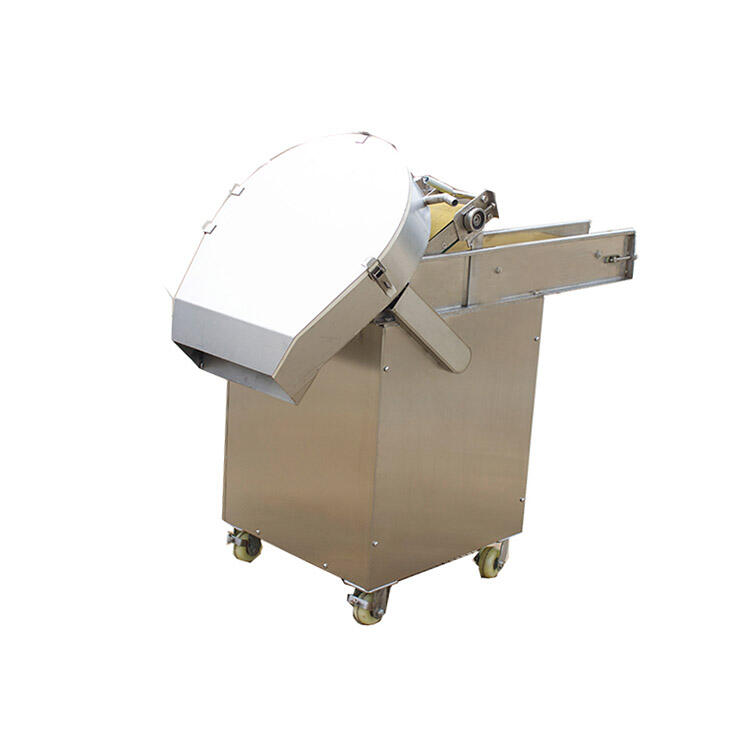

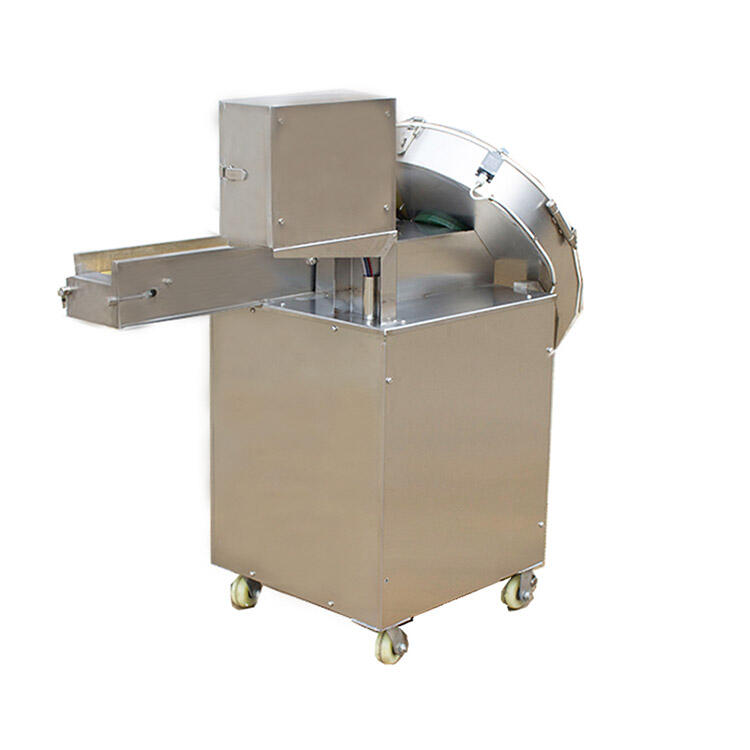

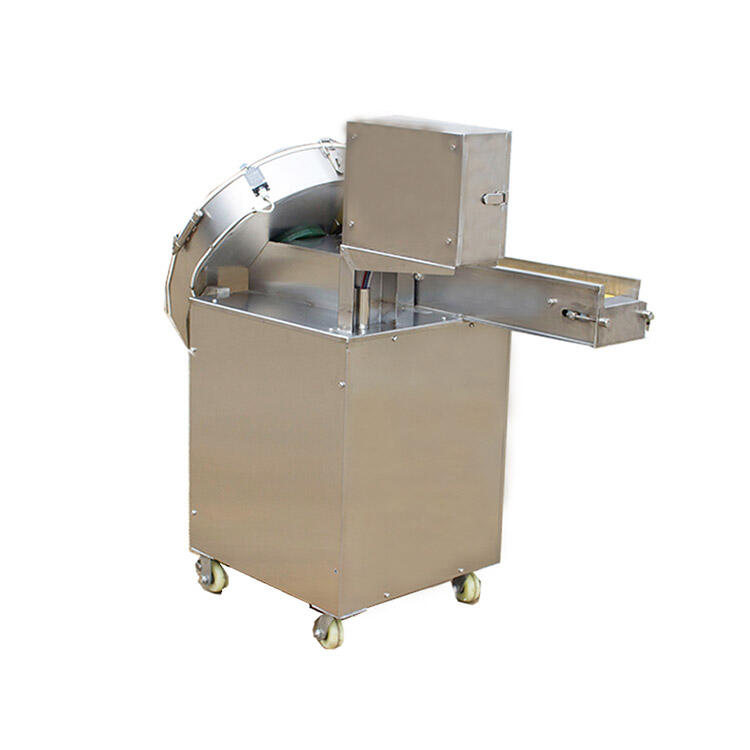

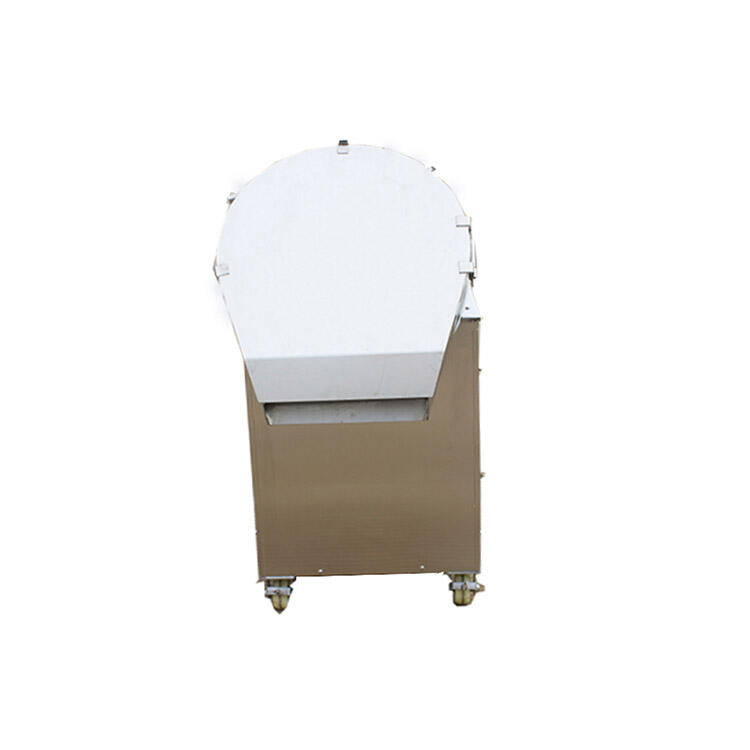

Bevel Cutting Machine LG-550

Product Description

Brief

Introduction

This machine is based on a variety of imported machine in the domestic field use of the shortcomings of the existing, repeatedly improved design and manufacture. Stainless steel and the full rolling bearing structure.

This function can satisfy various requirements of vegetable processing. The minimum damage to the vitamin of vegetables during the cutting process. The stepless speed change of the machine is controlled by the electromagnetic speed regulation motor or inverter. Optional by the customer.

Suitable for processing all kinds of vegetables in the food industry such as dehydration, quick-freezing, fresh-keeping, pickling, etc. , Spinach cut into pieces; yam, bamboo shoots, burdock slices; green and red pepper, onion cut rings; carrot slices, shreds; aloe cuts, strips and so on.

Technical parameters

Alternator Specifications (100% Copper Wires Alternator)

Power : cutting 0.75kw

transmit 0.75kw

Type	Power	Rated voltage	Current
Y802-4	0.75kw	380V	2A
Rated frequency	Rated speed	Power Factor	Efficiency
50HZ	1390rpm	0.76	74.5%
Material Insulation Class	Protection class	Cooling method
B	IP54	IC411

Product information

Dimension (mm)	Cutting size (mm)			Capacity(kg/h)
Dimension (mm)	section	piece	shred	Capacity(kg/h)
12007301350	2-30-60	1010~2525	33~88	1000-3000

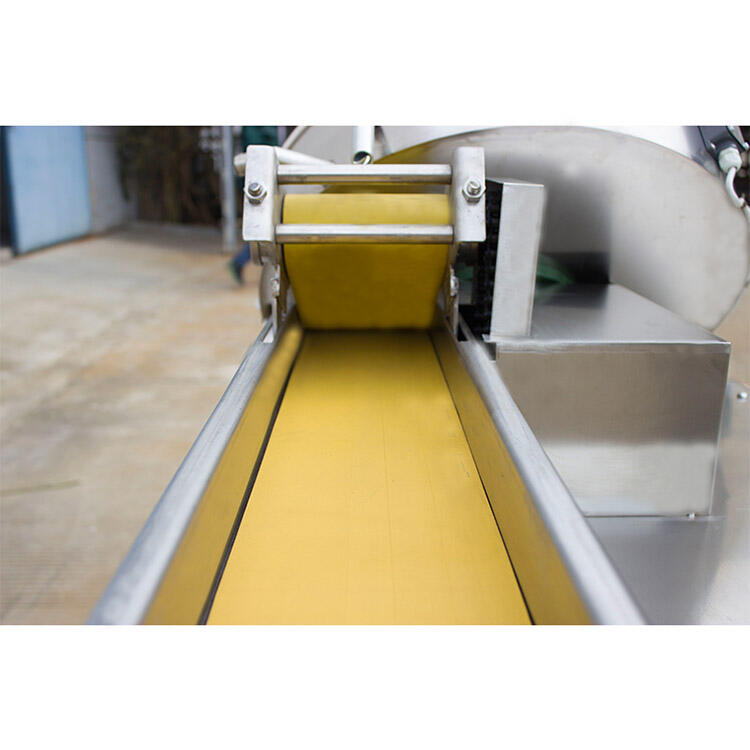

Exit size (mm)	Feed trough (mm)	Rotary diameter of cutter head (mm)	Upper conveyor belt (mm)	Lower conveyor belt (mm)
400100550	200*1000	550	2138700	21381980
Cutter head (kg)	Texture
18	304 stainless steel

Cutting size

1. cutting section: the total cut into the cutting of the stem rod material, section length 30 ~ 10, such as the need to cut section length 2 ~ 60mm, the spindle motor by 0.75kw-4 for 0.75kw-6.

2. pieces: install custom knife disc assembly cut leaf material, block 10 * 10 ~ 25 * 25. To cut more than 20 x 20, install spare knife disk window mask, Meng on a window, only a single window cutting.

3. the replacement of custom knife shred disc assembly, 3 * 3 ~ 8 * 8, less than 30 of the long wire, strip, ding.

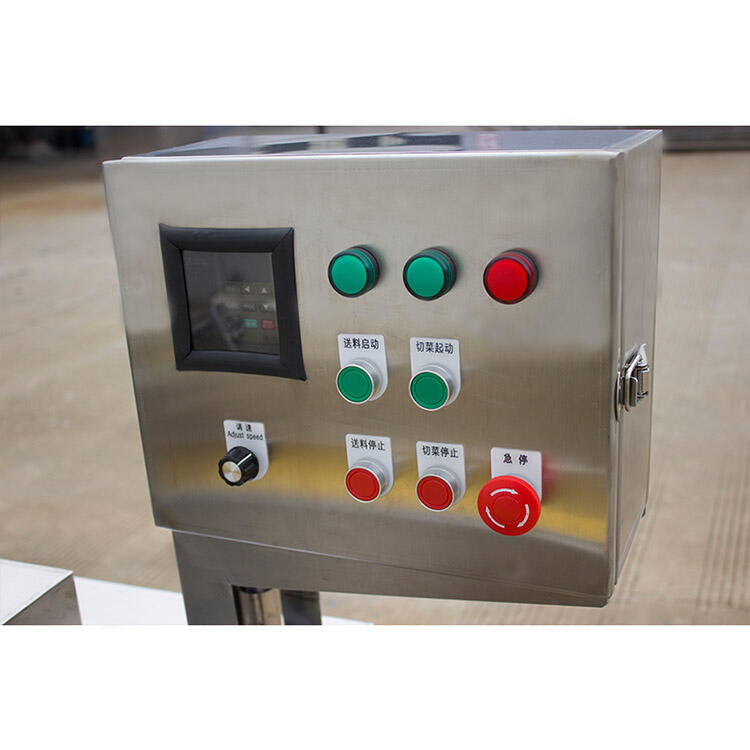

4. cutting material length: the main axis normal 810 / min, feeding trough by 0.75KW electromagnetic speed motor or frequency converter through the 1:8.6 reducer, belt wheel drive. When the operation is only need to hand rotation speed adjustment table knob to get the cutting length.
