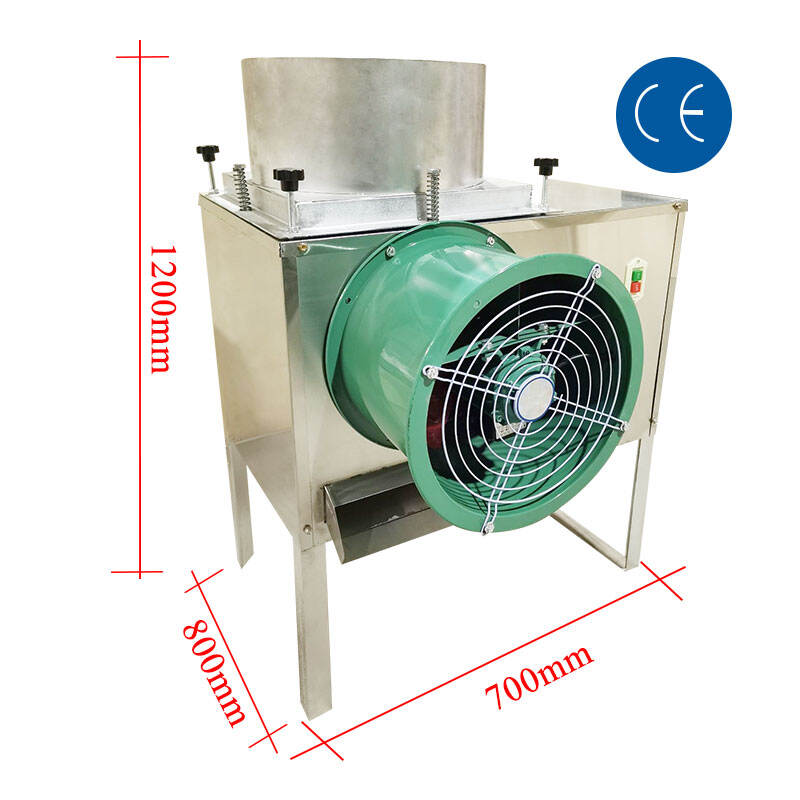

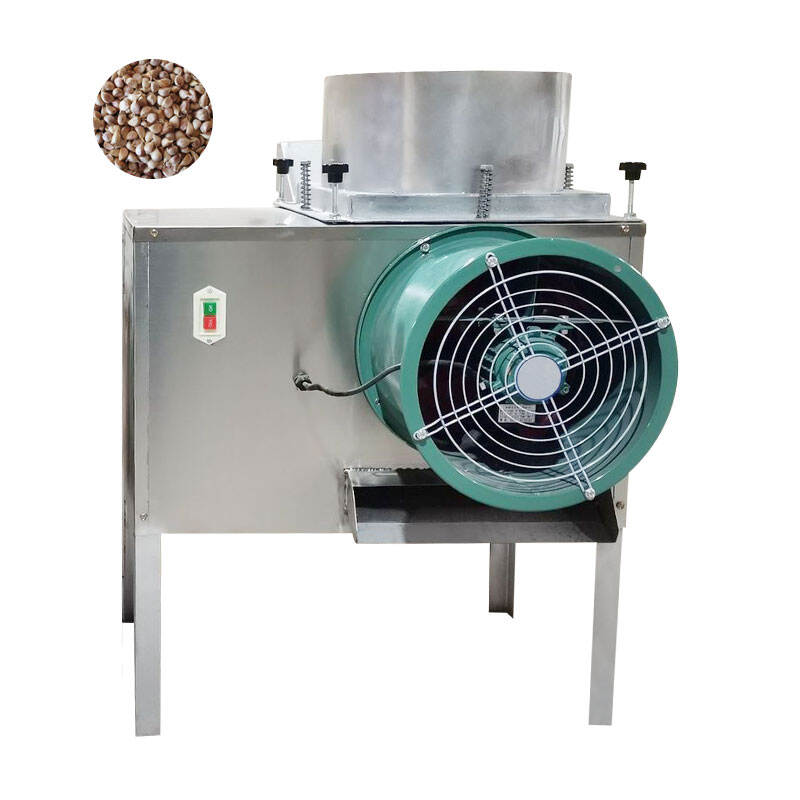

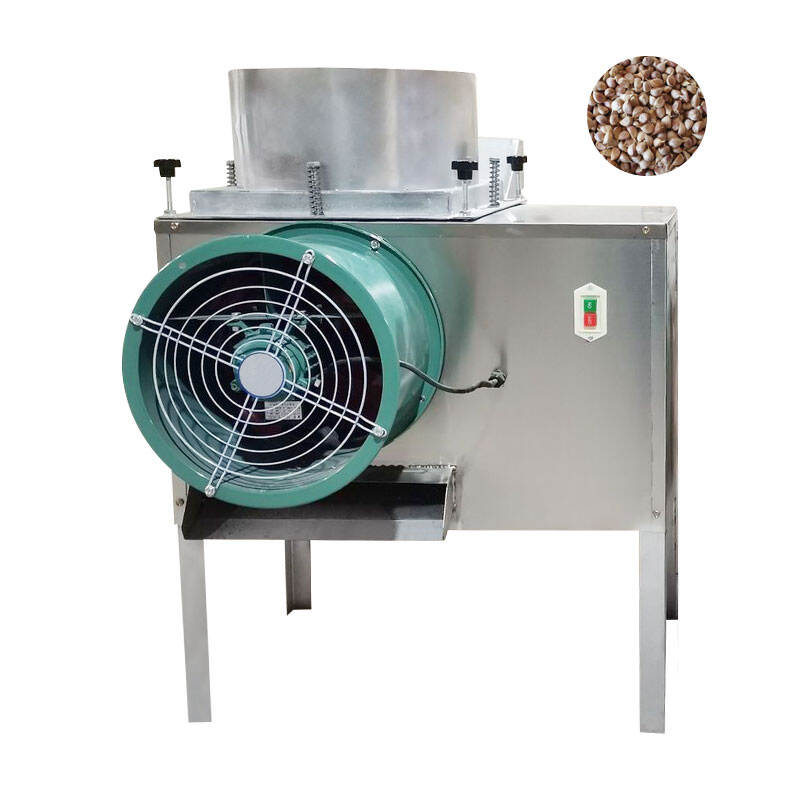

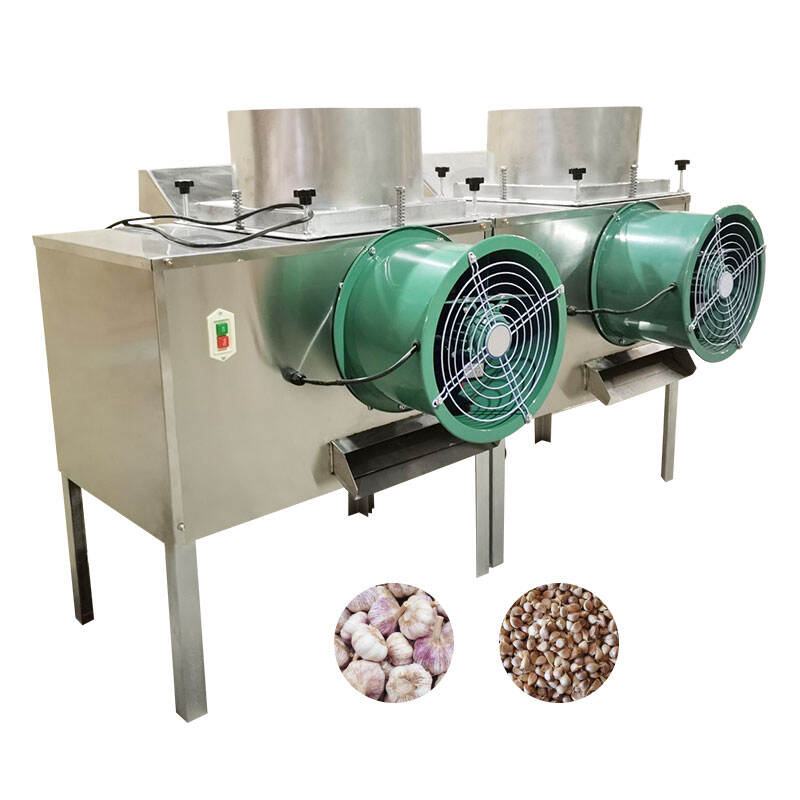

LG-Series High-Efficiency Garlic Breaking Machine

The LG-Series Garlic Breaking Machine, manufactured by Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD, is a professional-grade equipment designed to separate whole garlic bulbs into individual cloves. By utilizing high-elasticity silicone rollers, the machine simulates the manual "rubbing" action to achieve a high separation rate while ensuring the garlic cloves remain undamaged and intact.

• Primary Application: Essential pre-processing equipment for garlic peeling lines, dehydrated garlic production, and deep processing plants.
• Core Material: Constructed with a heavy-duty stainless steel frame and food-grade silicone components to meet international food safety standards.

• Feeding: Whole, dried garlic bulbs are fed into the large stainless steel top hopper.
• Separation: The bulbs pass between sets of high-speed rotating silicone rollers. The gap between these rollers is adjustable to accommodate different garlic sizes.
• Simulation: The centrifugal rubbing action gently breaks the bulb structure without bruising the cloves.

Blowing & Cleaning: The integrated high-power fan (the green blower unit) generates a strong air current to blow away garlic skins and stems, discharging clean cloves through the front outlet.

High Separation Rate: Achieves a separation rate of over 95% with minimal damage to the garlic cloves.

Integrated Blower System: The powerful external fan ensures that light skins and debris are separated immediately during the breaking process.

Adjustable Gap: The distance between the internal rollers can be easily adjusted using the top tension knobs to handle various bulb diameters.

Compact & Efficient: Designed with a space-saving vertical structure, making it easy to integrate into existing production lines.

Preparation: Ensure the machine is placed on a level surface. Verify that the power connection is secure and the fan is rotating in the correct direction.

Adjustment: Adjust the top pressure knobs based on the size of your garlic bulbs. If the breaking rate is too low, tighten the knobs; if the damage rate is too high, loosen them.

Feeding: Start the machine and the fan first, then continuously feed the garlic bulbs into the hopper.

Cleanup: After the operation, turn off the power and remove any remaining stems or skins from the internal chamber.

Daily Inspection: Check the condition of the silicone rollers regularly. Replace them if they show signs of significant wear to maintain a high separation rate.

Hygiene: The stainless steel frame and hopper should be wiped down daily. Ensure no water enters the motor or control switches.

Safety: Do not reach into the hopper or the discharge chute while the machine is running. Keep fingers away from the rotating fan blades.
