Brief Introduction |

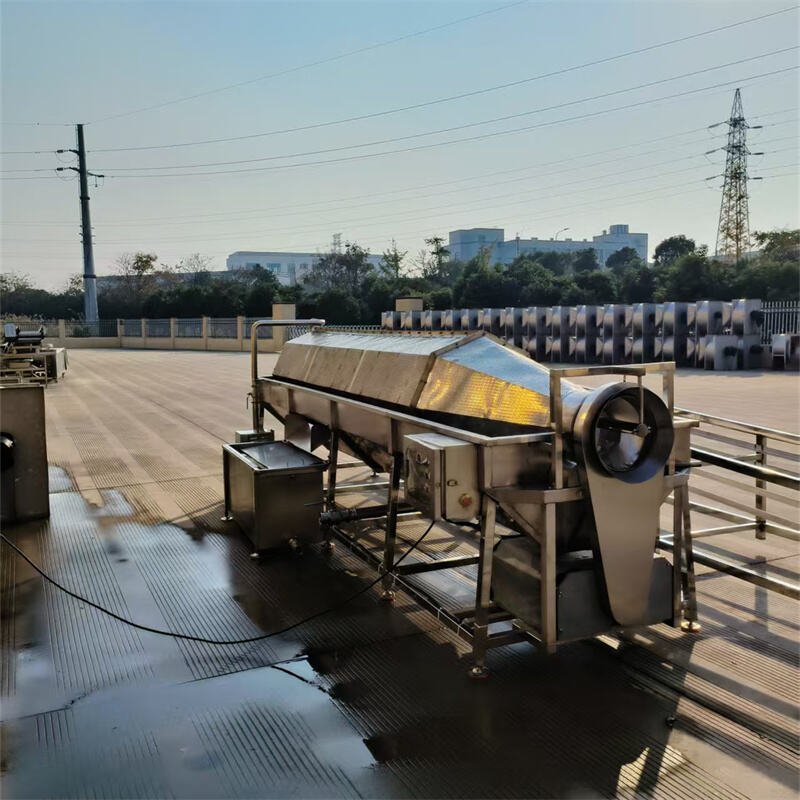

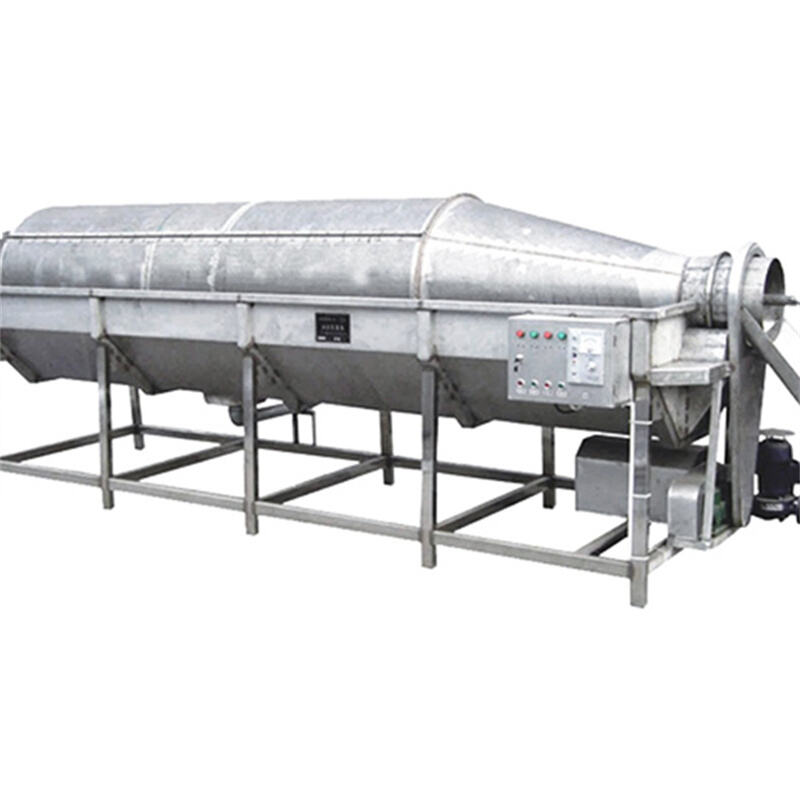

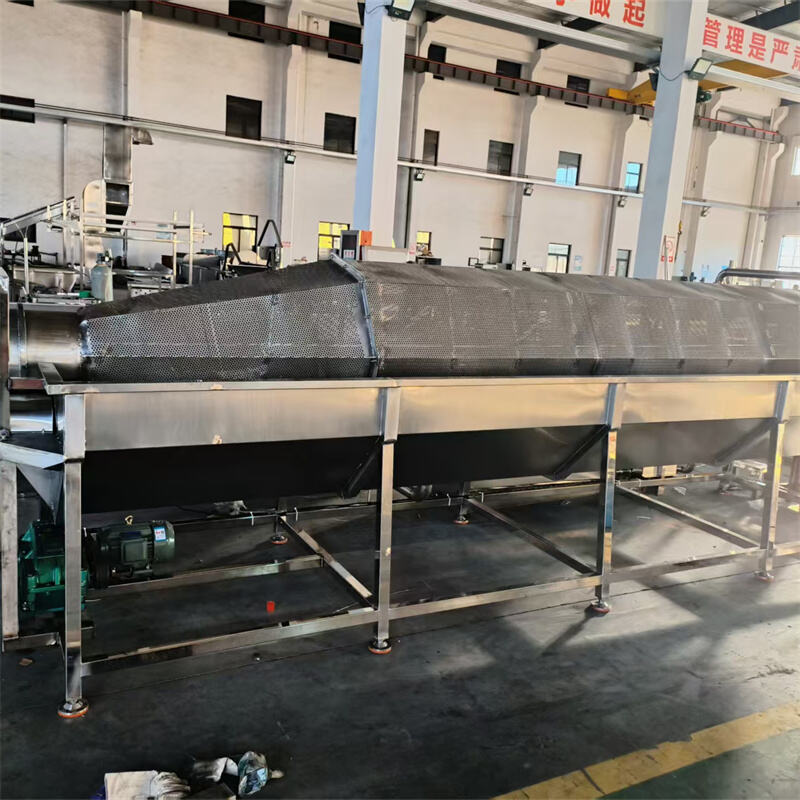

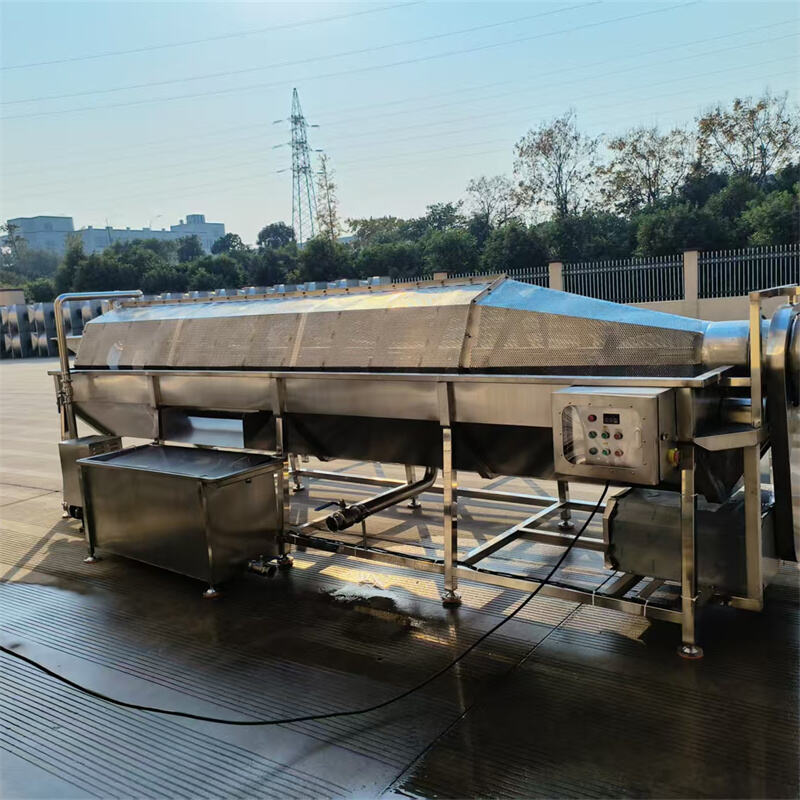

The circular drum washing machine is widely used in the vegetable processing industry due to its unique cleaning function. It has the characteristics of simple structure, clean cleaning, convenient operation and maintenance. the principle: The material enters the rotating drum through the hoist, and is driven by the spiral drive. The high-pressure spray pipe is continuously sprayed throughout the entire process, and the washed material automatically flows into the next process. Yield, time, and effect are controlled by the electromagnetic speed control motor and the amount of feeding according to the type of material and the degree of cleaning. If disinfection is required, a certain concentration of disinfection solution can be prepared for filtering and recycling.
|
|||
The circular drum washing machine is widely used in the vegetable processing industry due to its unique cleaning function. It has the characteristics of simple structure, clean cleaning, convenient operation and maintenance.
The material enters the rotating drum through the hoist, and is driven by the spiral drive. The high-pressure spray pipe is continuously sprayed throughout the entire process, and the washed material automatically flows into the next process.
Yield, time, and effect are controlled by the electromagnetic speed control motor and the amount of feeding according to the type of material and the degree of cleaning. If disinfection is required, a certain concentration of disinfection solution can be prepared for filtering and recycling.e.
|
Dimension (mm) |
Water pumps (kw) |
Power (kw) |
Material retention time |
|
6300*2100*2100 |
2.2 5sets |
16.6 |
40 seconds-3 minutes |
|
Capacity (kg/h) |
Roller diameter (mm) |
Texture |
|
|
1000-4000 |
Φ1000 |
304 stainless steel |
1. The feeding should be uniform, and the speed and the amount of feeding should be adjusted reasonably according to the types of materials and cleaning requirements.
2. Keep the inside and outside clean. If necessary, open the Huff for cleaning and maintenanc
Introduction:
The circular drum washing machine is widely used in the vegetable processing industry due to its unique cleaning function. It has the characteristics of simple structure, clean cleaning, convenient operation and maintenance.
The principle:
The material enters the rotating drum through the hoist, and is driven by the spiral drive. The high-pressure spray pipe is continuously sprayed throughout the entire process, and the washed material automatically flows into the next process.
Yield, time, and effect are controlled by the electromagnetic speed control motor and the amount of feeding according to the type of material and the degree of cleaning. If disinfection is required, a certain concentration of disinfection solution can be prepared for filtering and recycling.e.
