Brief Introduction |

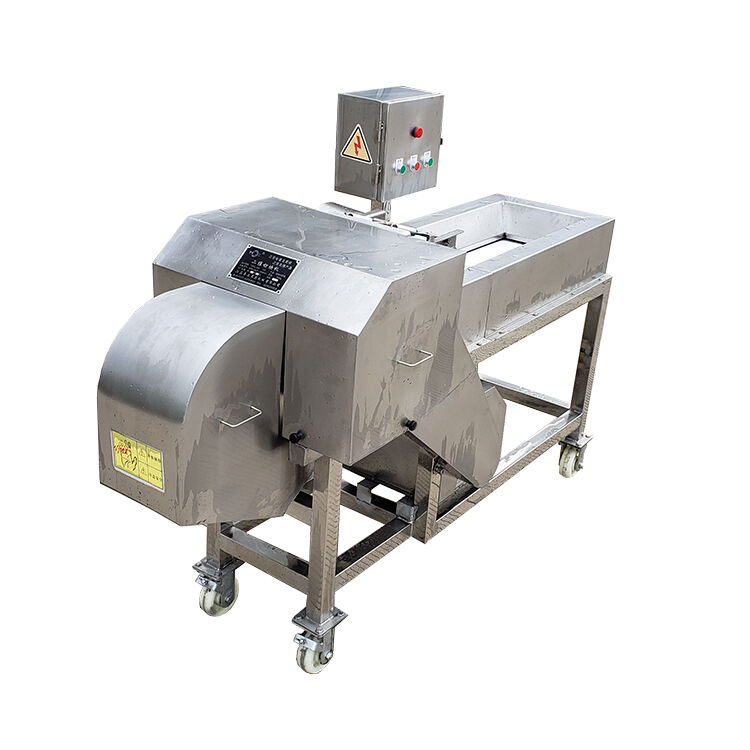

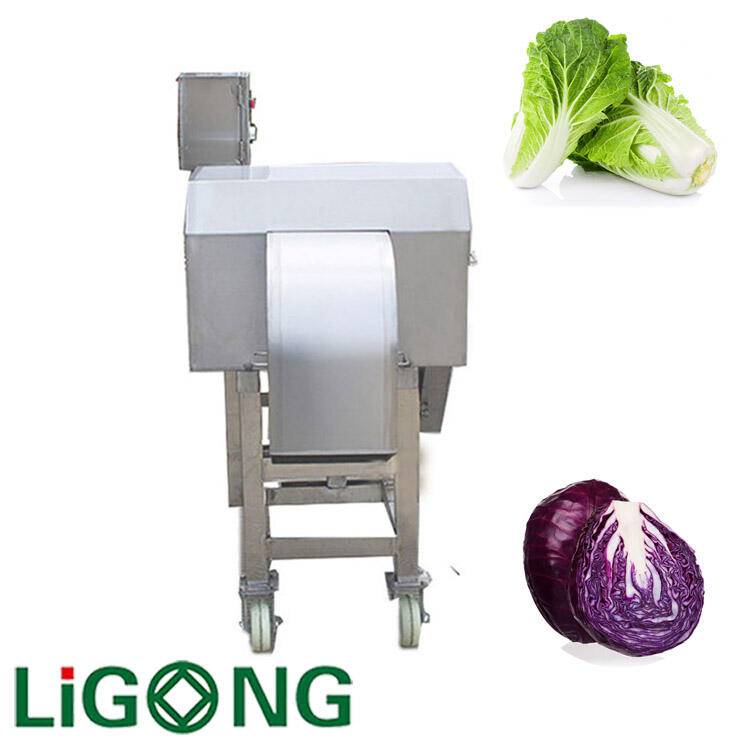

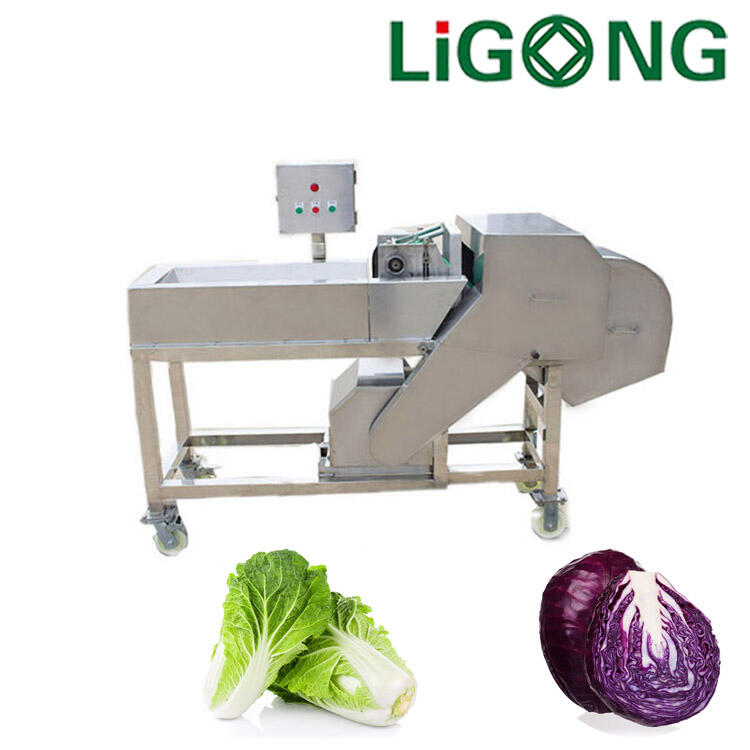

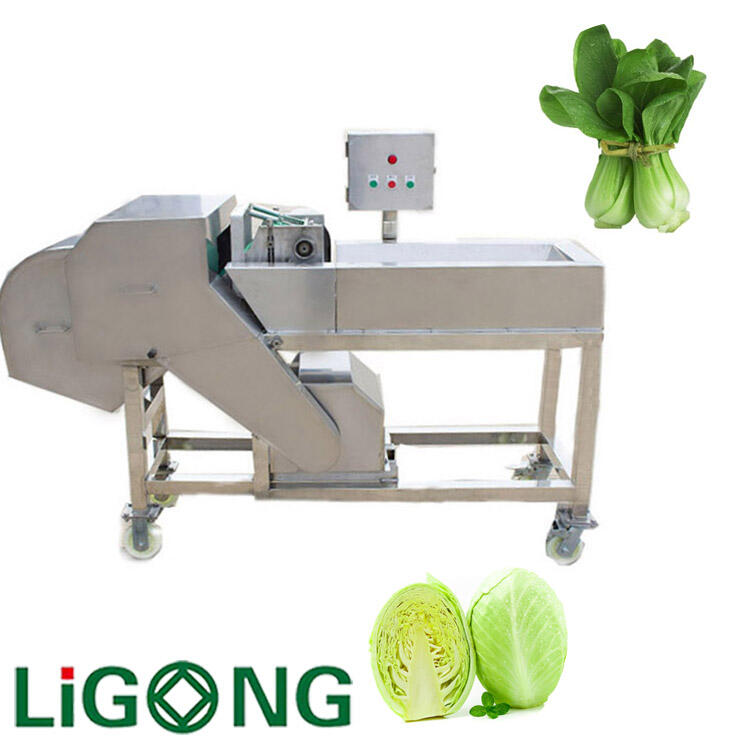

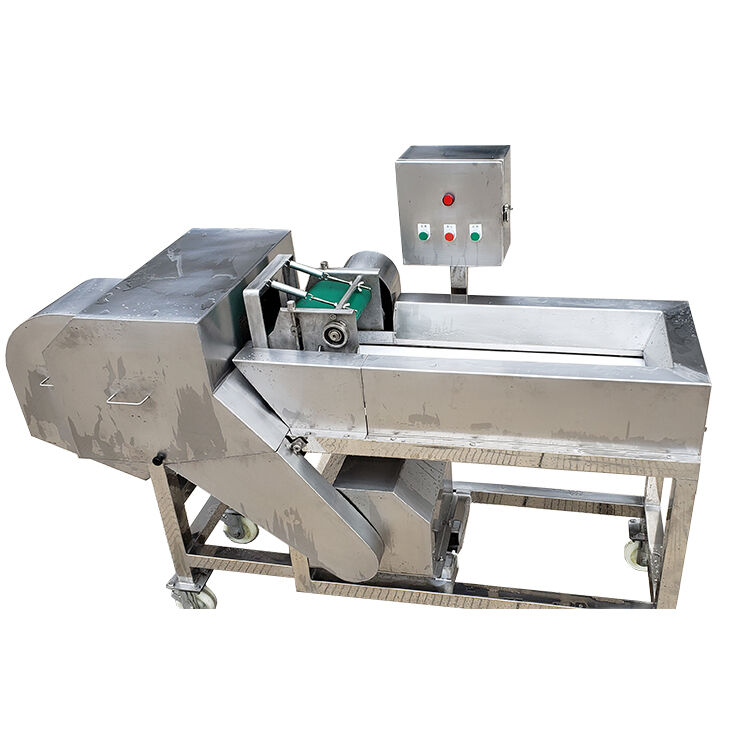

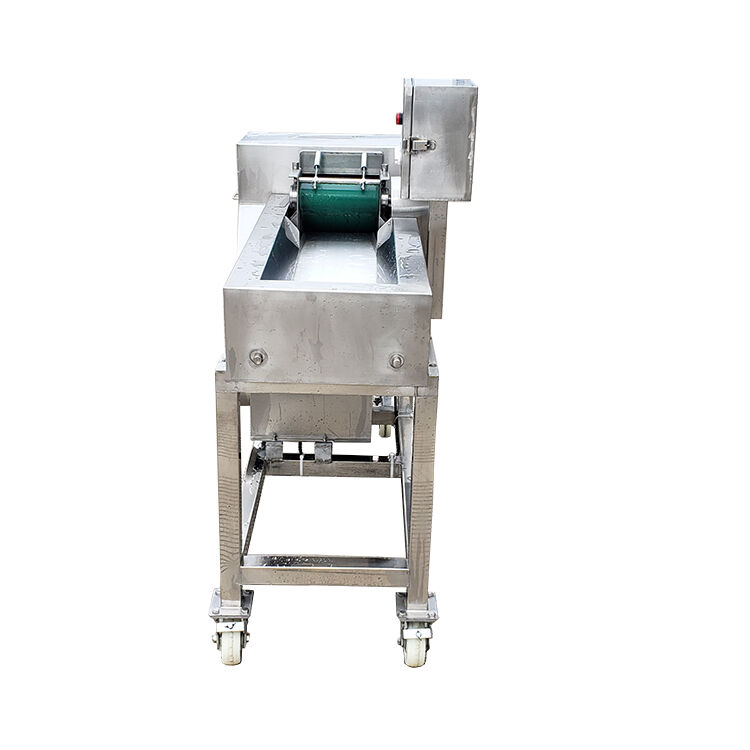

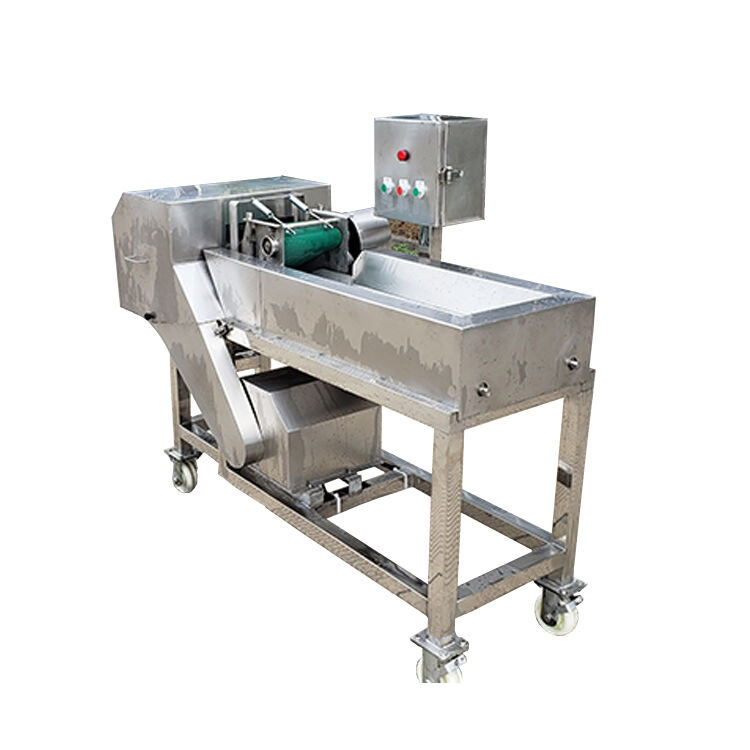

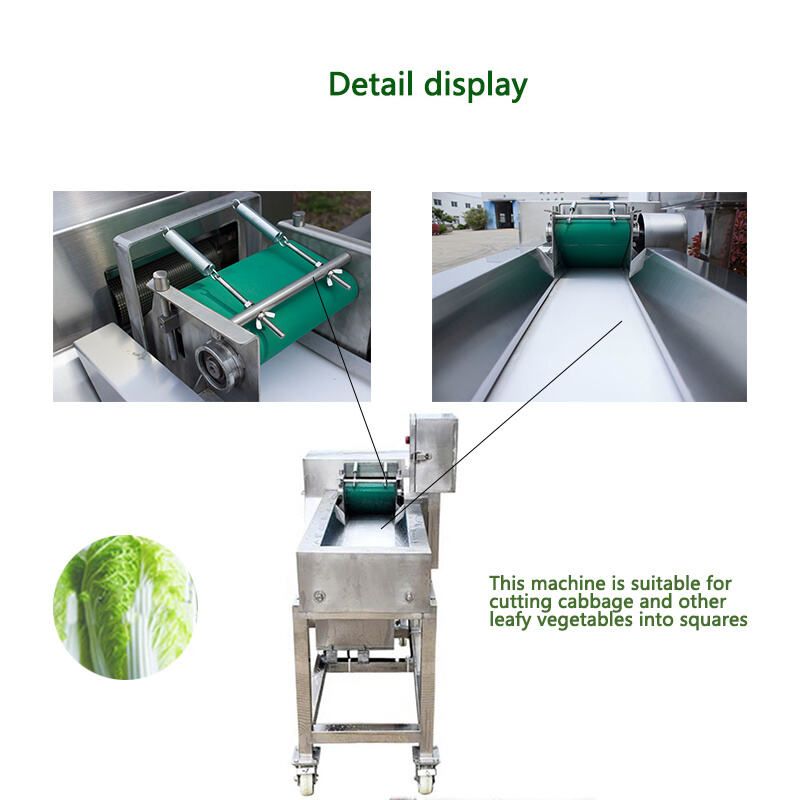

This machine is optimized for the needs of cutting large leafy vegetables such as spherical cabbage (cabbage) and Chinese cabbage into squares or long squares after repeated experiments. Compared with similar products, the main advantage of this machine is that the material will not stay in the gap between the disc knife and the cross-cutting knife, which meets the food hygiene requirements. working principle The material travels forward on the conveyor belt of the feeding trough. After being clamped and compressed by the upper pressure belt, the upper and lower auxiliary feeding rollers are relatively rotated and sent to the disc cutter to cut into long strips. The cutter is cut into squares or rectangles and is thrown out of the discharge port under the action of centrifugal force |
||||
Technical parameters
Alternator Specifications
(100% Copper Wires Alternator)
Type |
Power |
Rated voltage |
Current |
Y112M-6 |
2.2kw |
380V |
5.6A |
Rated frequency |
Rated speed |
Power Factor |
Efficiency |
50HZ |
940rpm |
0.74 |
80.5% |
Material Insulation Class |
Protection class |
Cooling method |
|
B |
IP54 |
IC411 |

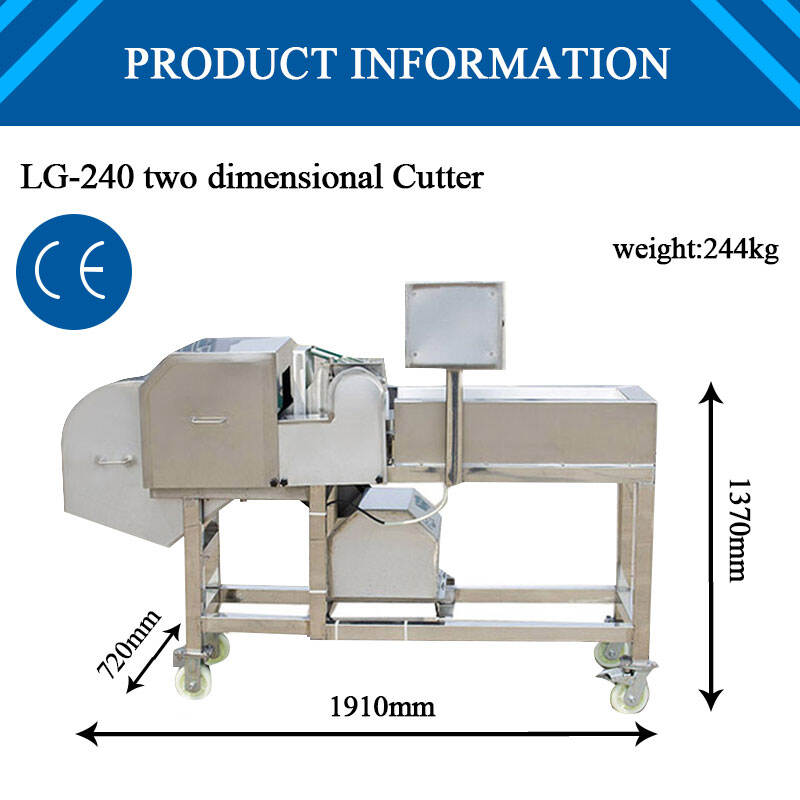

Product information
Dimension (mm) |
Cut specification (mm) |
Capacity (kg/h) |
Cutter head (kg) |
1910*720*1370 |
10*10~40*40 |
500-2000 |
10 |
Exit size (mm) |
Feed trough (mm) |
Feeding thickness |
Texture |
350*255*490 |
300*950 |
less than 50mm |
304 stainless steel |

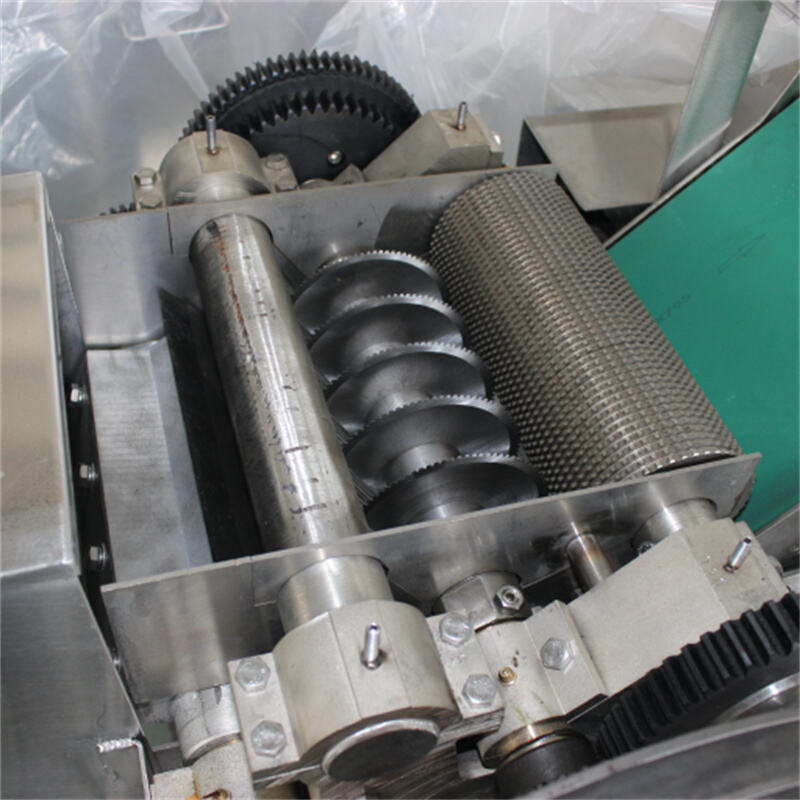

Replacing the disc knife assembly, that is, changing the distance between the disc knife, can cut strips of different specifications.
Changing the meshing gear between the disc cutter shaft and the cross cutter shaft or replacing the cross cutter assembly (that is, changing the number of cross cutters) can cut blocks of different specifications (users specify when ordering).
Cut specification : 20*20、30*30，custom-made 10*10、25*25、40*40
