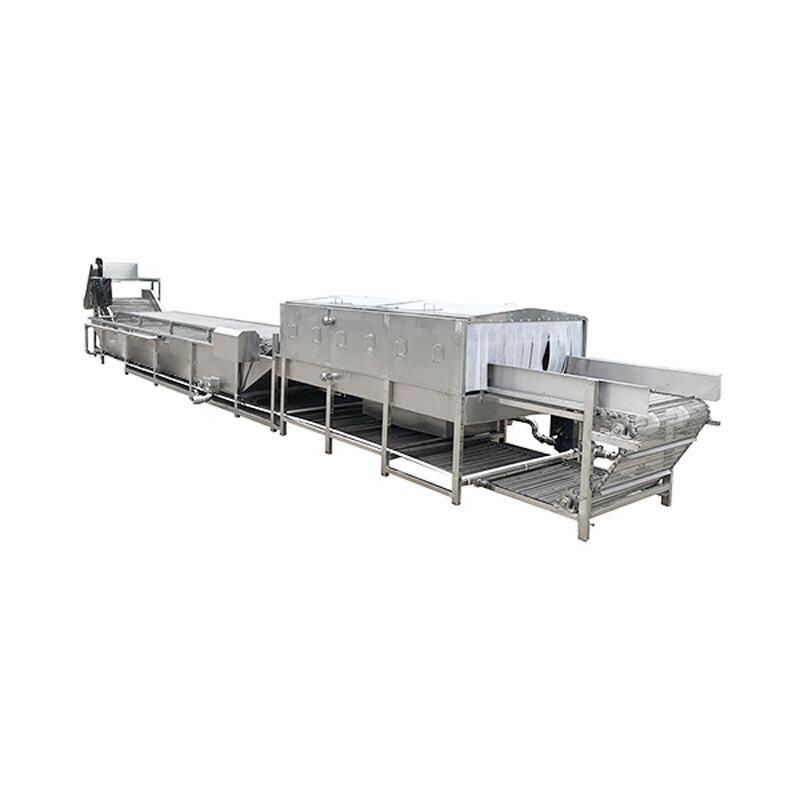

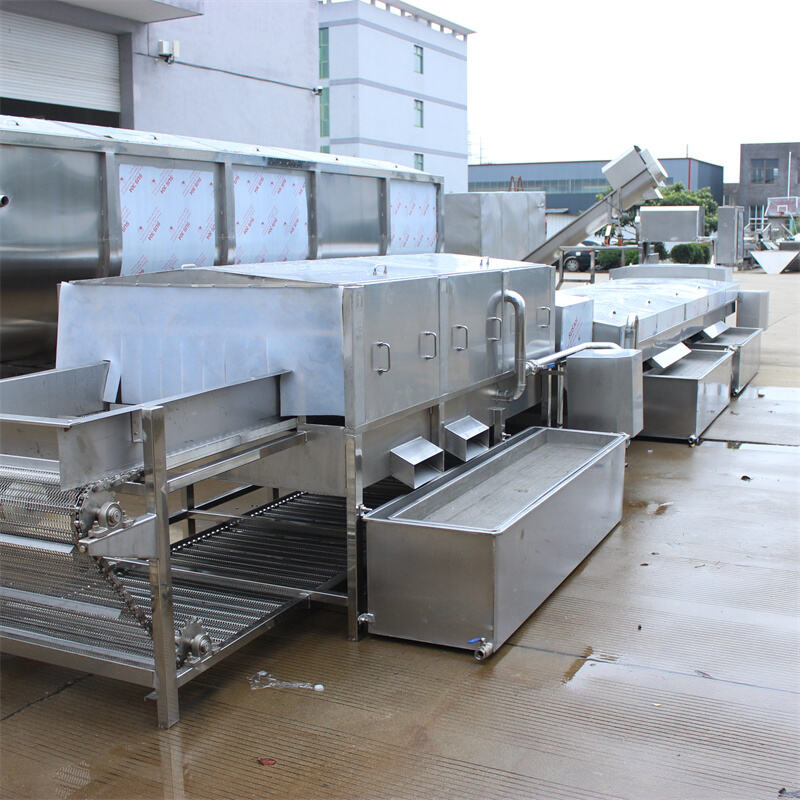

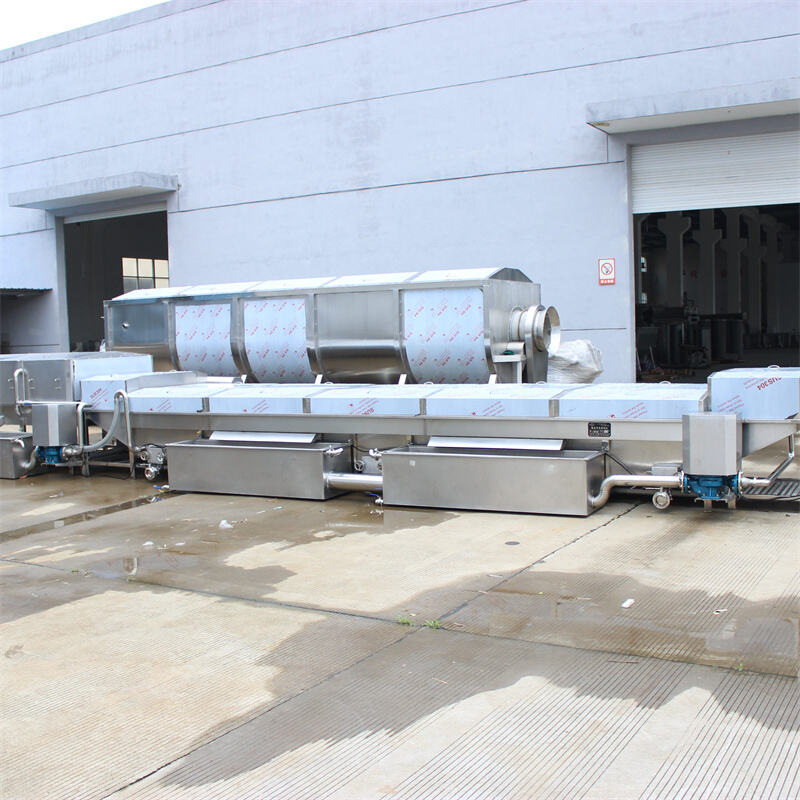

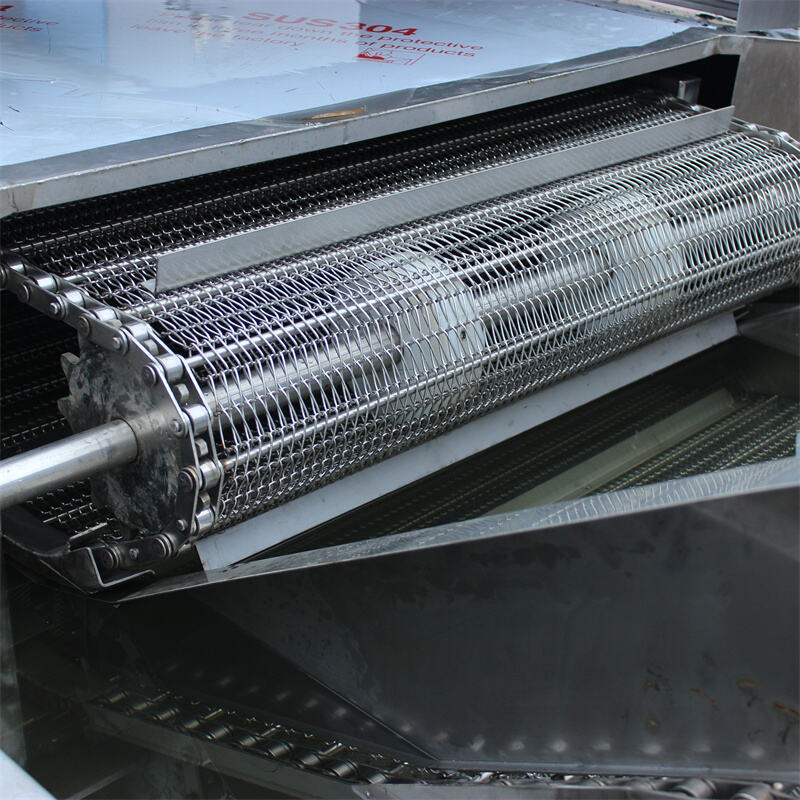

The Industrial Double-layer Mesh Belt Bubble Washing Machine is professionally designed for high-capacity, continuous washing of various fruits, vegetables, and agricultural products. This system combined with a double-layer belt design ensures thorough soil and impurity removal while protecting delicate materials from damage, making it ideal for large-scale food processing factories and vegetable dehydration lines.

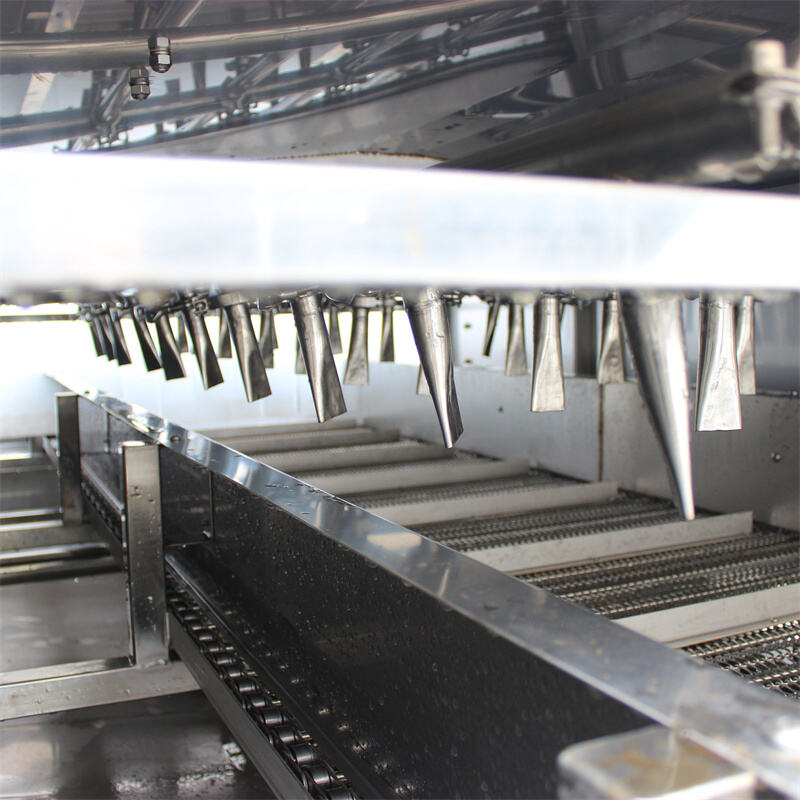

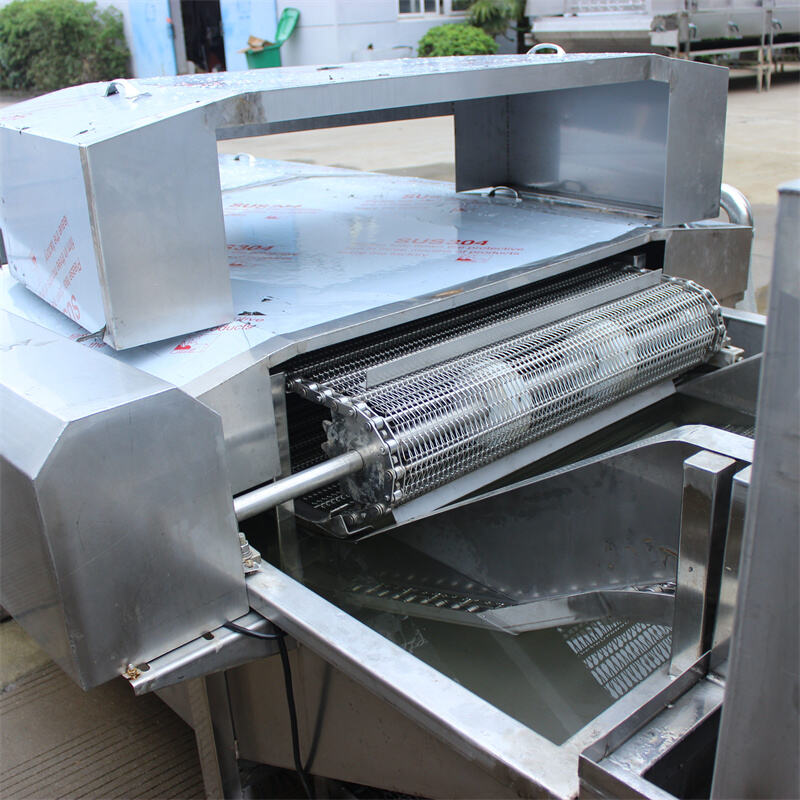

Double-Action Cleaning Technology: The machine utilizes a high-pressure vortex inflatable oxygen generator to create dense bubbles at the bottom of the tank, simulating a gentle yet powerful scrubbing action. Simultaneously, a high-pressure spray system mounted on top provides an intensive rinse. The materials are continuously advanced by the continuous flow and the double-layer mesh belt to achieve an all-round cleaning outcome.

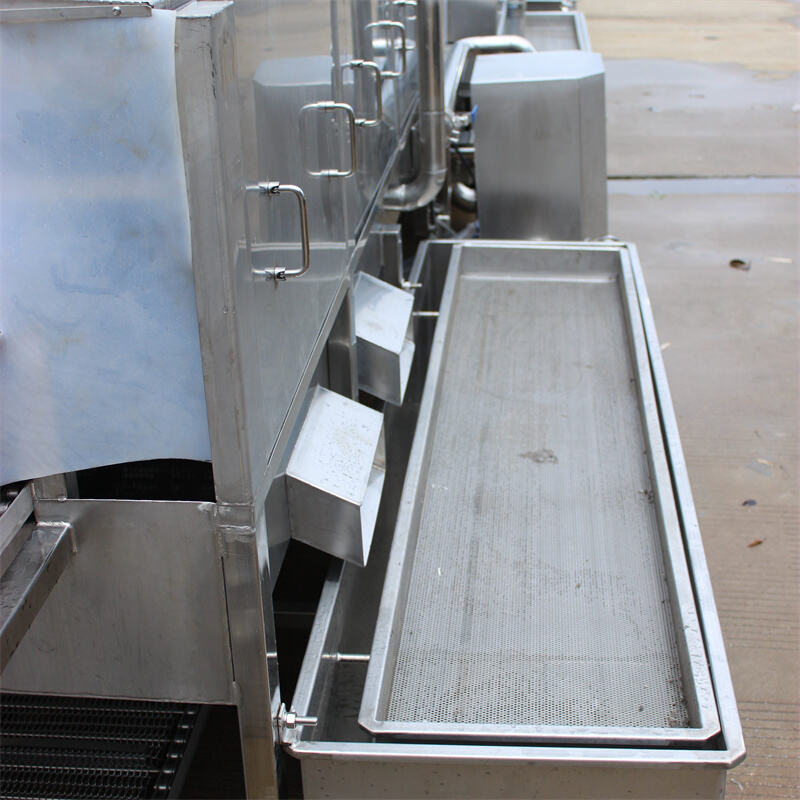

Circulating Water & Filtration System: To reduce operational costs and environmental impact, the machine is equipped with a stainless steel circulating water tank and an integrated filtration screen at the bottom. Impurities are captured efficiently, allowing clean water to be recycled back into the washing cycle.
|
Parameter Item |
Technical Specification |
|
Model Category |
Double-layer Mesh Belt Bubble Washing Machine |
|
Overall Dimensions |
$L10000 \times W1450 \times H1800 \text{ mm}$ |
|
Mesh Belt Width |
$1200 \text{ mm}$ |
|
Production Capacity |
$3,000 - 5,000 \text{ kg/hour}$ |
|
Washing Tank Capacity |
$2.24 \text{ CBM}$ (Cubic Meters) |
|
Water Consumption |
$2 \text{ Tons/hour}$ (Freshwater replenishment) |
|
Total Power Supply |
$380\text{V} / 50\text{Hz}$ / 3-Phase (Customizable) |
Air Bubble System: $2.2 \text{ kW}$ Vortex Inflatable Oxygen Generator (High-volume aeration)
High-Pressure Spray: $2.2 \text{ kW}$ Heavy-duty Pipeline Pump
Transmission System: $1.5 \text{ kW}$ Motor equipped with Variable Frequency Drive (VFD) for adjustable conveyor speed control.
Motor Protection: All motors feature advanced dustproof and waterproof capabilities, fully protected by heavy-duty stainless steel covers.

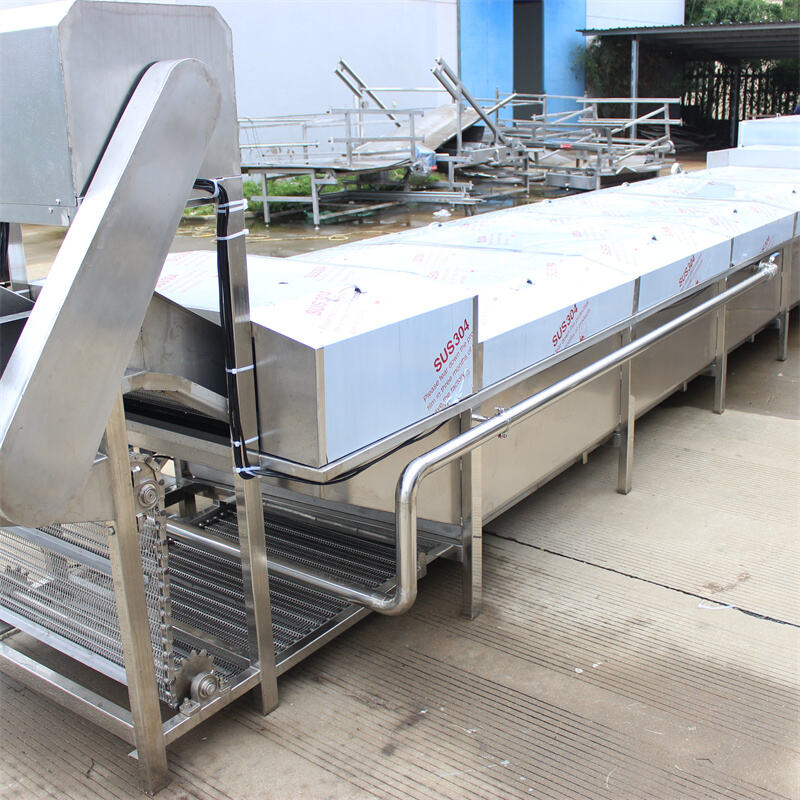

Premium SUS304 Construction: Except for standard commercial components such as the speed reducer and electrical parts, all parts of the machine are fabricated from high-grade SUS304 food-grade stainless steel.
Heavy-duty Body Plates: The main body and tank structure utilize stainless steel plates with a thickness of 1.5 - 2mm, ensuring outstanding rigidity and long-term corrosion resistance.
Robust Bottom Frame: Supported by a premium stainless steel square pipe frame to eliminate structural vibration and deformation during high-capacity continuous operation.

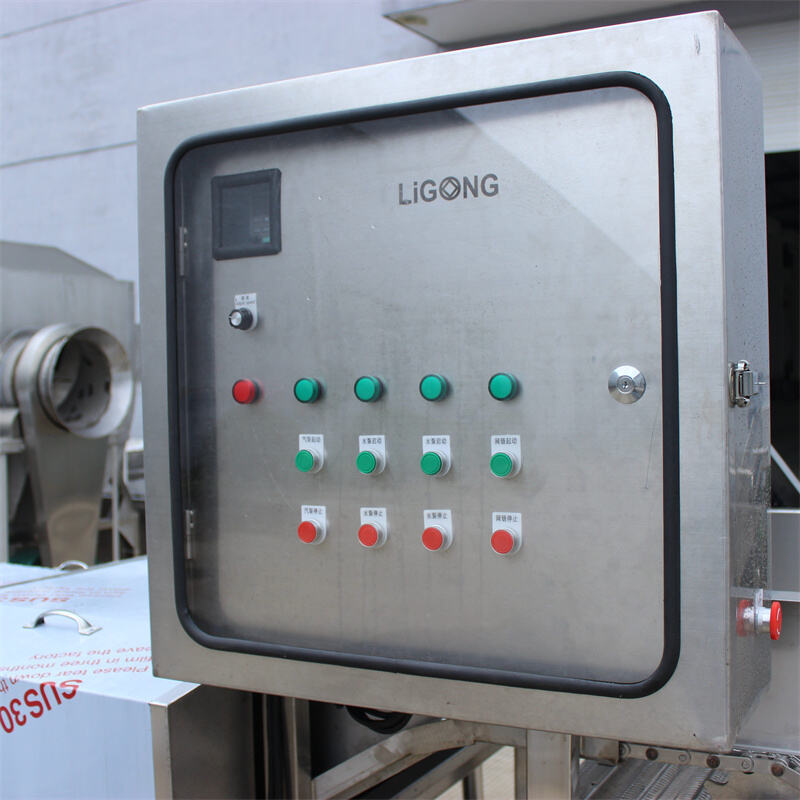

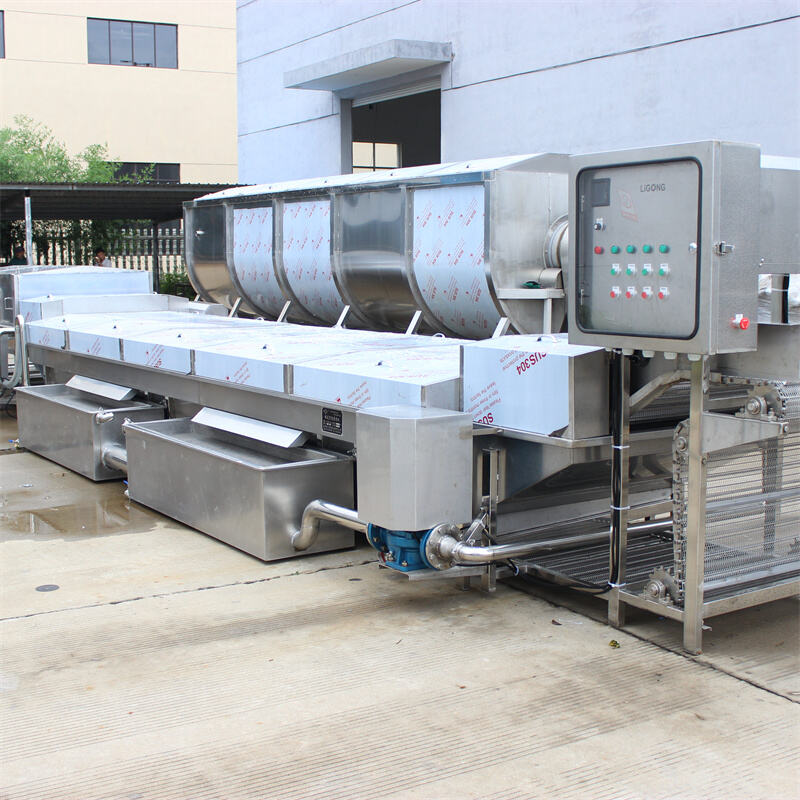

Central Control Panel: The machine includes an integrated, centralized control panel that provides clear adjustments and monitoring for all key operational parameters (such as conveyor speed, bubble intensity, and pump operation), ensuring ease of use and maximum operator safety.
Conceptual General Layout Drawing: (Please refer to the conceptual engineering layout drawing attached in the appendix for specific piping entrances, water inlet/outlet positions, and spacing configurations).
