The Industrial Carrot Rotary Drum Brush Washing Machine is specially engineered for continuous, heavy-duty washing, soil removal, and polishing of carrots, radishes, and various root vegetables. By combining a rotating drum mechanism with heavy-duty cylindrical brushes and high-pressure water sprays, it ensures $360^\circ$ thorough cleaning while maintaining high efficiency and excellent product presentation for fresh-cut processing or dehydration lines.

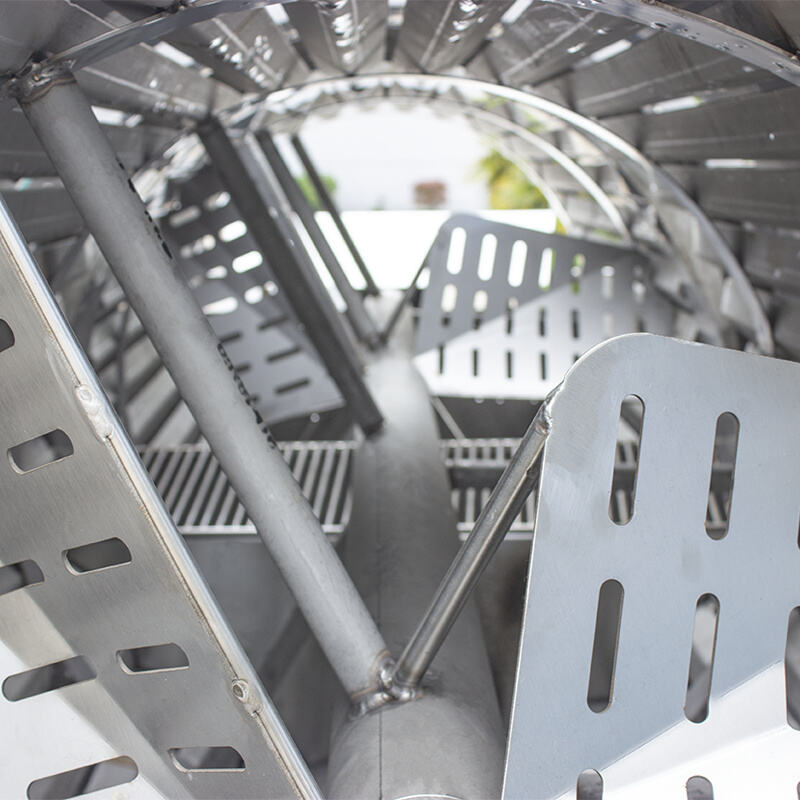

Rotary Cylindrical Brush Cleaning System: The core cleaning chamber features a heavy-duty Rotary Cylindrical Brush System. As the carrots tumble smoothly inside the continuous rotating drum, the specialized bristles frictionally sweep away stubborn mud, soil, and surface imperfections without damaging the product flesh.
Continuous High-Pressure Spraying: Integrated internal water pipelines continuously spray fresh water over the tumbling carrots, ensuring that washed-off soil is flushed instantly to the bottom, preventing cross-contamination.
|
Technical Parameter Item |
Operational Specification |
|
Model Category |
Carrot Rotary Drum Brush Washing Machine |
|

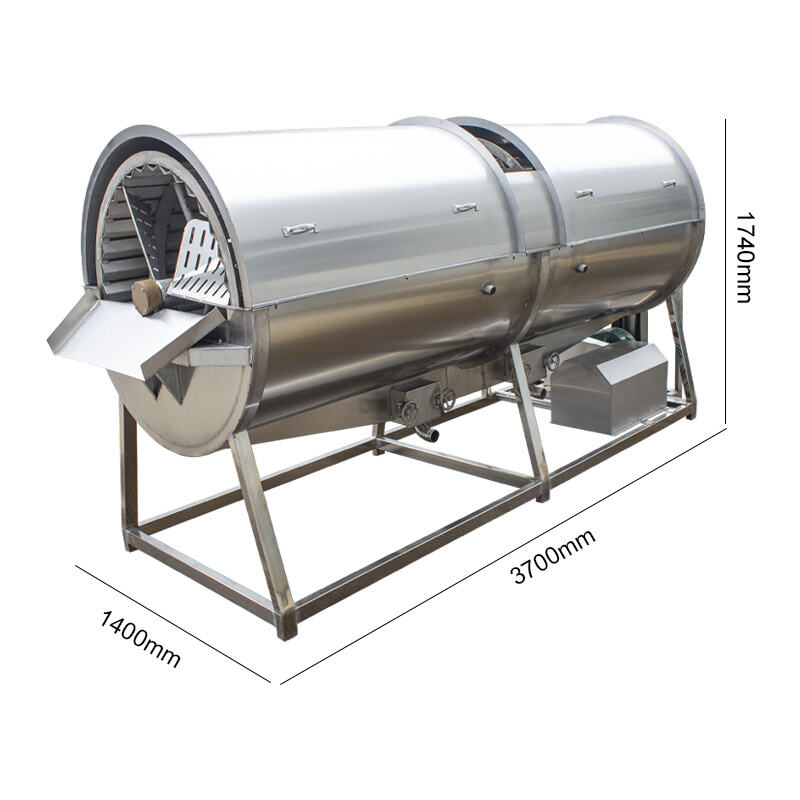

Overall Dimensions ($L \times W \times H$) |
$3700 \times 1400 \times 1740 \text{ mm}$ |
|
Drum Length |
$3600 \text{ mm}$ ($\pm 100 \text{ mm}$) |
|
Drum Effective Width |
$1200 \text{ mm}$ ($\pm 100 \text{ mm}$) |
|
Inlet/Import Feeding Hopper Size |
$850 \times 850 \times 1373 \text{ mm}$ ($L \times W \times \text{Discharge Height}$) |
|
Outlet/Export Discharge Chute Size |
$700 \times 700 \times 960 \text{ mm}$ ($L \times W \times \text{Discharge Height}$) |
|
Production Capacity |
$3,000 - 5,000 \text{ kg/hour}$ ($3 - 5 \text{ Tons/h}$) |
|
Water Consumption |
From $1.0 \text{ Ton/hour}$ (Adjustable based on soil conditions) |
|
Installed Power |
$3.0 \text{ kW}$ |
|
Total Net Weight |
$794 \text{ kg}$ |
Premium Stainless Steel Structure: To guarantee maximum longevity, corrosion resistance, and food safety standards (CE/FDA), all primary metal parts are fabricated from premium, heavy-duty food-grade Stainless Steel (SUS304).
Chassis Rigidity & Structural Thickness: * Main Housing/Case Thickness: Up to $2.0 \text{ mm}$ maximum, preventing structural flexing under heavy continuous load.
Drum Plate/Perforated Sheet Thickness: Up to $1.2 \text{ mm}$ maximum, optimizing the balance between structural strength and efficient waste-water drainage.
Industrial Motor Protection: The $3\text{kW}$ main drive motor is fully protected by a waterproof, stainless steel enclosure shield, preventing damage from water splashes and humidity in wet washdown environments.
1.Leveling: Ensure the machine is placed on a flat, solid industrial floor. Adjust the heavy-duty feet to ensure proper gravitational drainage incline toward the outlet.
2.Feeding: For optimal cleaning outcomes, maintain a continuous and steady flow of carrots into the $850\text{mm}$ inlet hopper rather than dumping massive batches all at once.
3.Maintenance: After daily production, run the empty drum and flash the internal brush system with a high-pressure water gun to clear out remaining fibers or mud residue.
