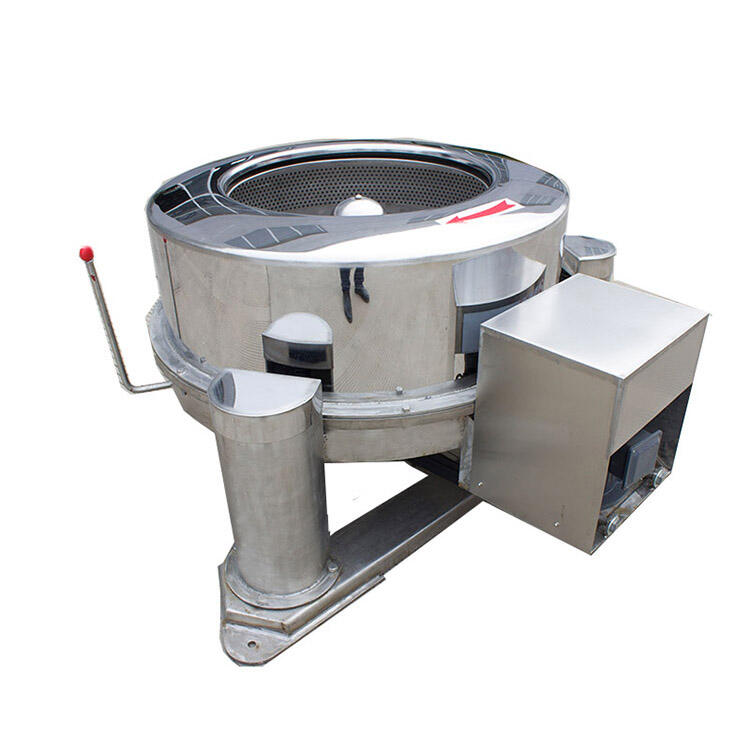

The LG-Series Three-Legged Centrifugal Dehydrator is a high-performance industrial machine designed for the rapid removal of surface moisture from vegetables, fruits, and various food products. Utilizing the principle of centrifugal force, this machine effectively extracts water from processed materials, significantly improving efficiency in food production lines.
High-Efficiency Dehydration: Engineered for high-speed operation to ensure maximum water extraction in short cycles.

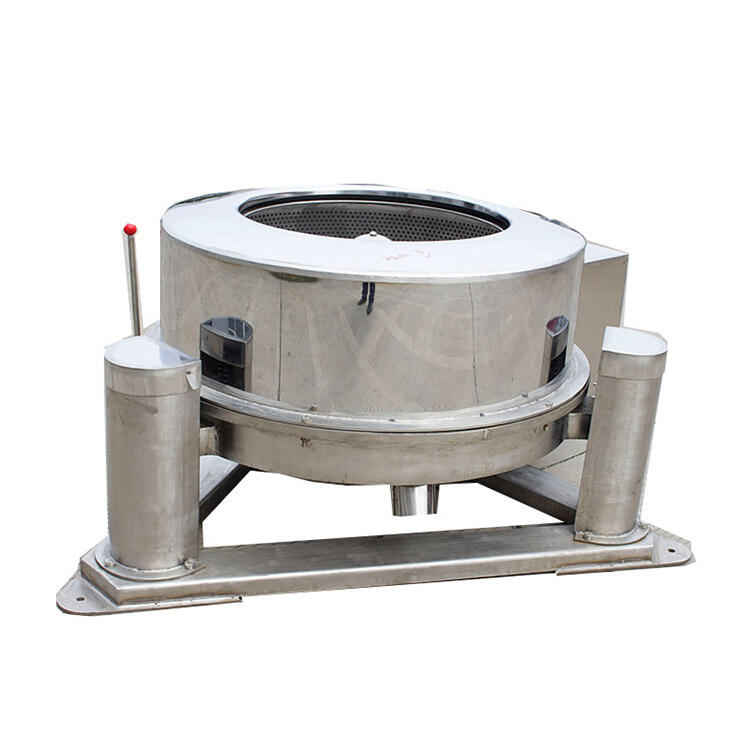

Stable Three-Legged Design: The classic three-legged support structure provides excellent stability and vibration absorption during high-speed rotation.
Food-Safe Design: All components in contact with food are made of high-quality stainless steel, complying with international food safety standards.
User-Friendly Operation: Simplified control mechanism for consistent performance across different batches.
|
Item |
Specification |
|
Overall Dimensions |
$1400 \times 820\text{ mm}$ |
|
Drum Diameter |
$\phi 800\text{ mm}$ |
|
Drum Speed |
$910\text{ r/min}$ |
|
Load Capacity |
$80\text{ kg/batch}$ |
|
Motor Power |
$4\text{ kW}$ |
|
Total Weight |
$500\text{ kg}$ |
|
Material |
Full SUS 304 Stainless Steel |
Placement: Install the machine on a level, solid concrete floor. Ensure all three legs are securely anchored to maintain balance.
Loading: Evenly distribute the washed materials inside the drum. Do not exceed the rated capacity of 80 kg per batch to ensure proper balance and prevent excessive vibration.
Operation: Close the safety cover securely. Start the motor and allow the drum to reach the operating speed of 910 r/min.
Completion: Once the dehydration cycle is complete, allow the machine to come to a full stop before opening the lid to unload the materials.
Sanitization: Wash the internal drum and external stainless steel surfaces with water and food-grade detergent after every use.
Daily Inspection: Check the belt tension and ensure the machine is free of debris.
Safety Warning: Never open the lid while the drum is rotating. Ensure the machine is disconnected from the power source before performing any internal cleaning or maintenance.
