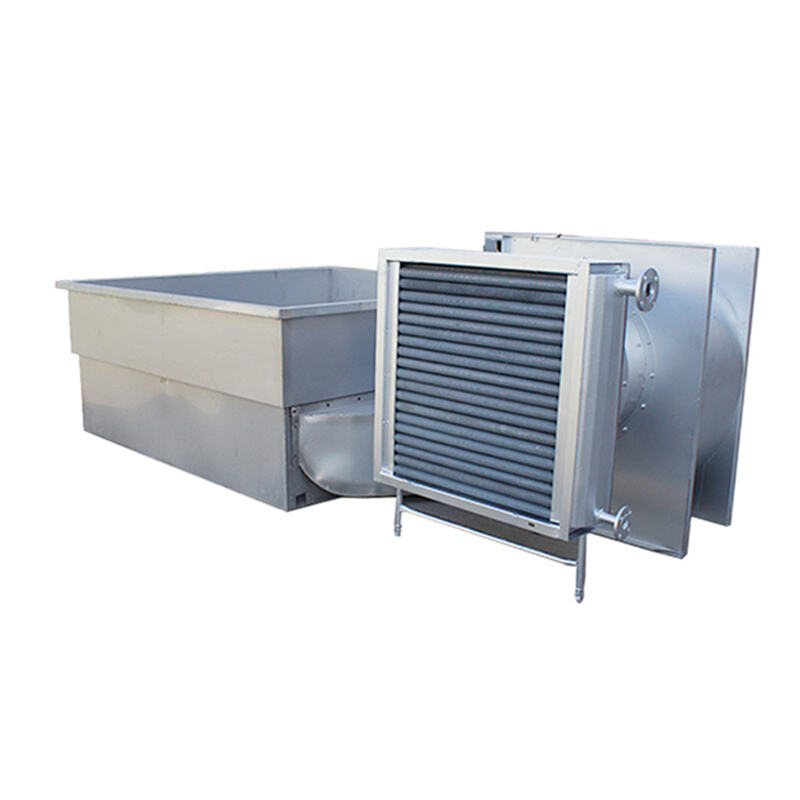

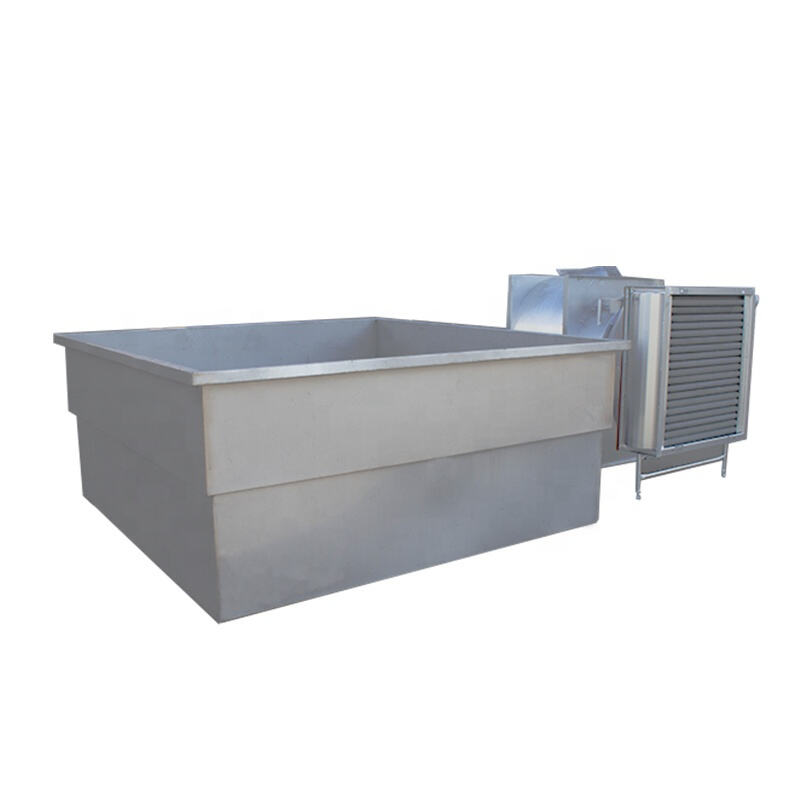

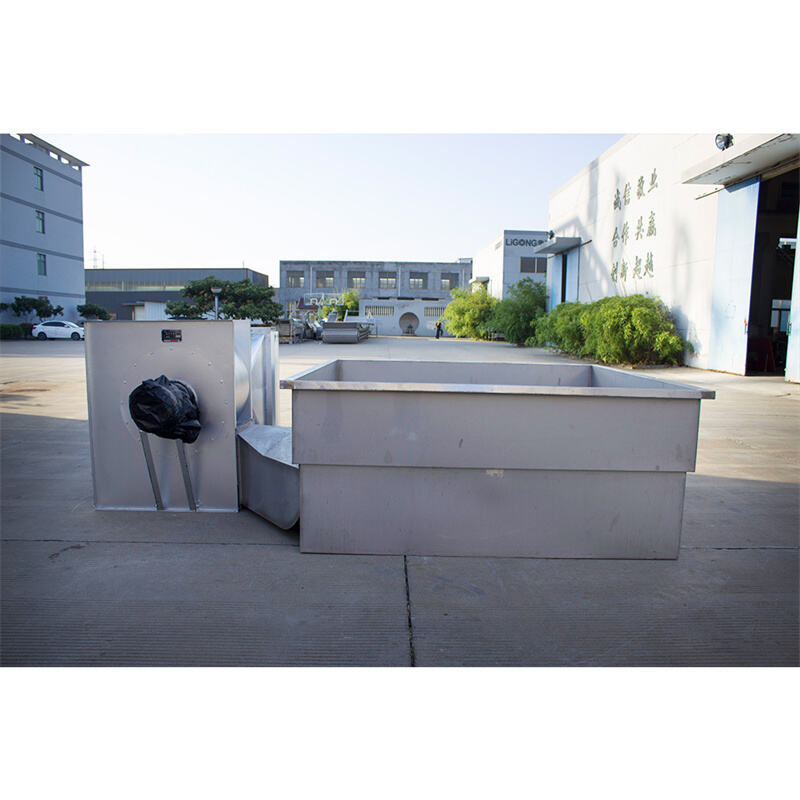

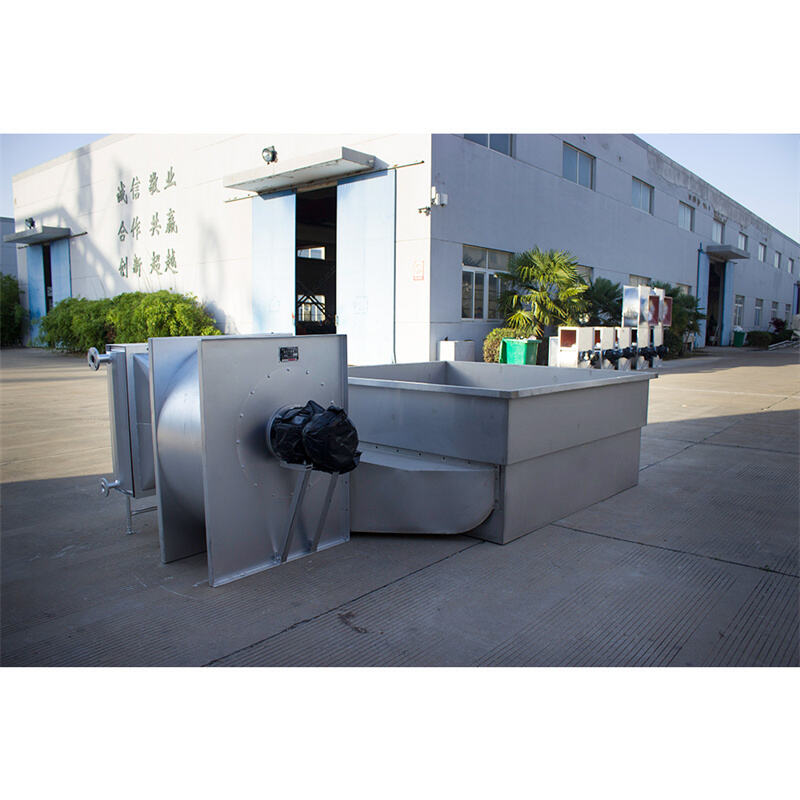

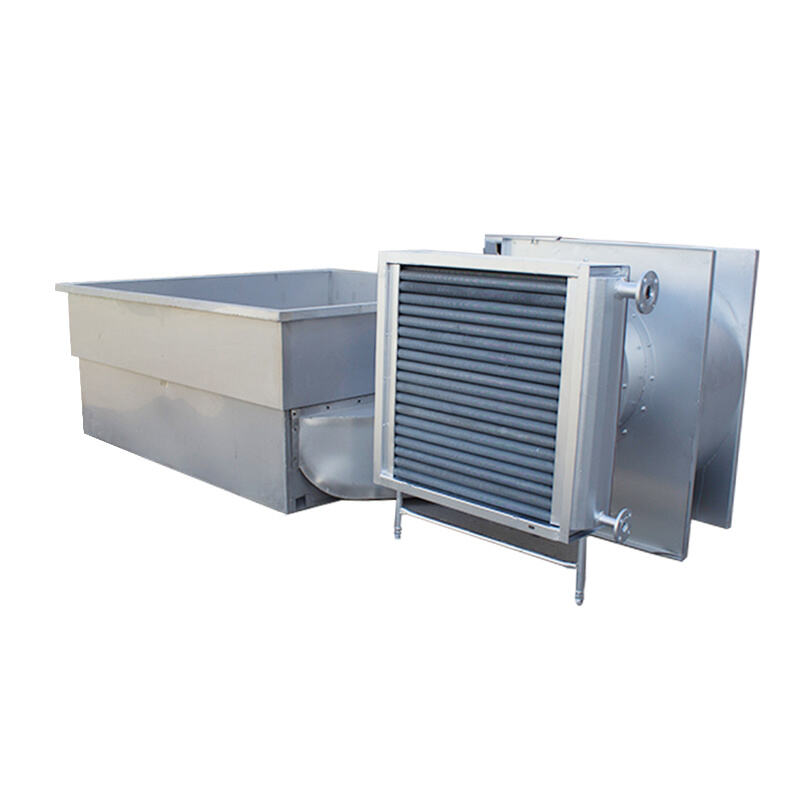

Box Dryer machine

Model

Dimension

(mm)

Motor

(kw)

Capacity
kg/batch

Weight

(kg)

Box Dryer

3800*2100*1510

5.5

200

300

Brief

Introduction

The oven is based on the actual use of many varities of ovens in many domestic dehydration plants, The existing deficiencies have been improved.it is suitable for dry and dehydrated vegetables and foods.

The machine has large air volume,high strength,reasonable process structuer and opreation.Features such as easy maintenance.Split Universal and all stainless steel square

and rectangular varieties are available.The user needs to order.

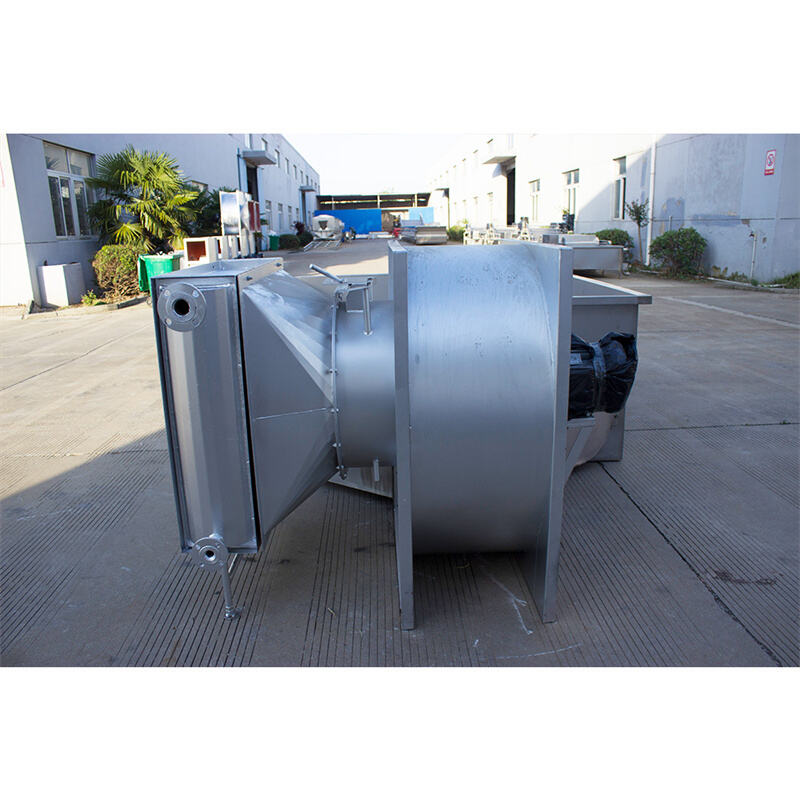

Fan information

(1) Select 4-72 6A-4KW-4. Slightly improved on the original basis.Flow6677-13353m3 / h full pressure 724Pa(2) Select 11-62 type A low-noise more-airfoil centrifugal fan 11-62-5A-5.5KW-6Flow 9800-19300m3 / h full pressure

Owen

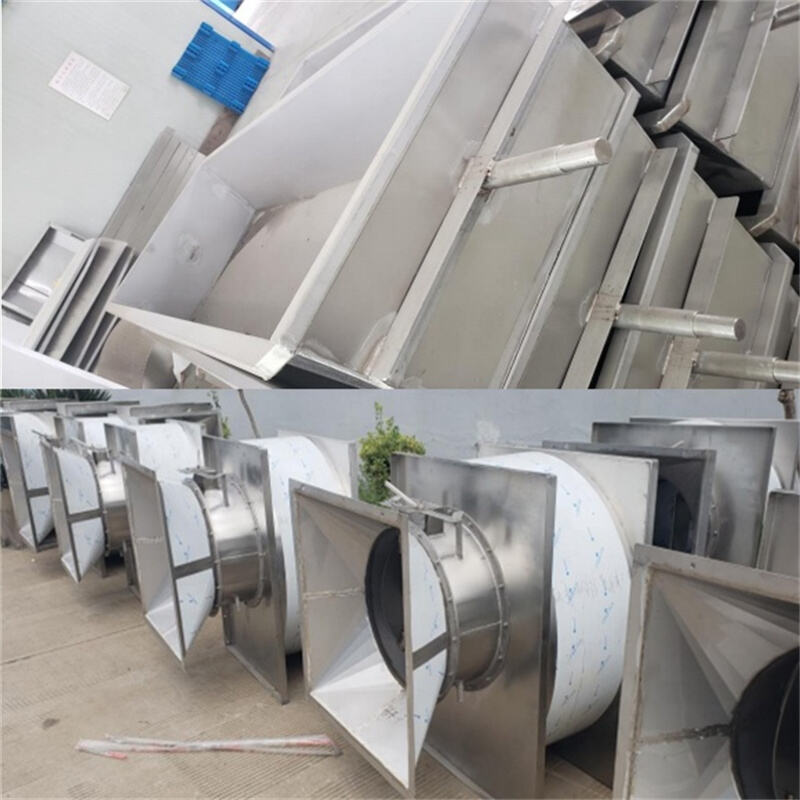

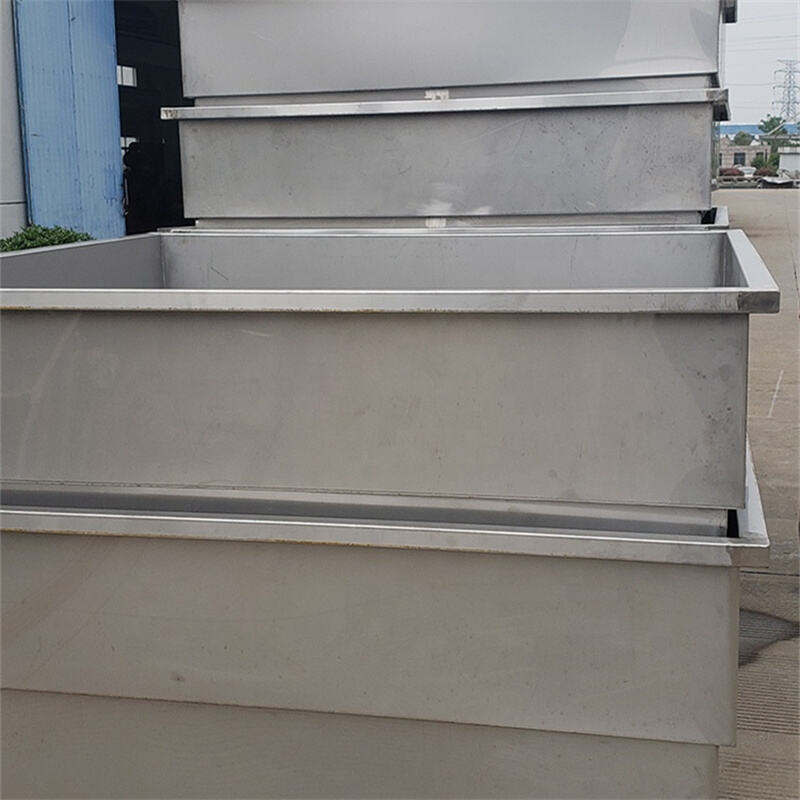

The box body is welded with all stainless steel plates. The box body and sieve are 1.5mm thick. The frame is welded with stainless steel profiles to form a square frame. It has high strength, no deformation, no air leakage, and no water leakage. It is easy to clean and solves the accumulation of materials. The formation of charcoal and drying dead corner improves the sanitary conditions and guarantees the quality of drying.Effective size of the oven: (1) 2 × 2 meters = 4m2; (2) 3 × 1.5 meters = 4.5m2

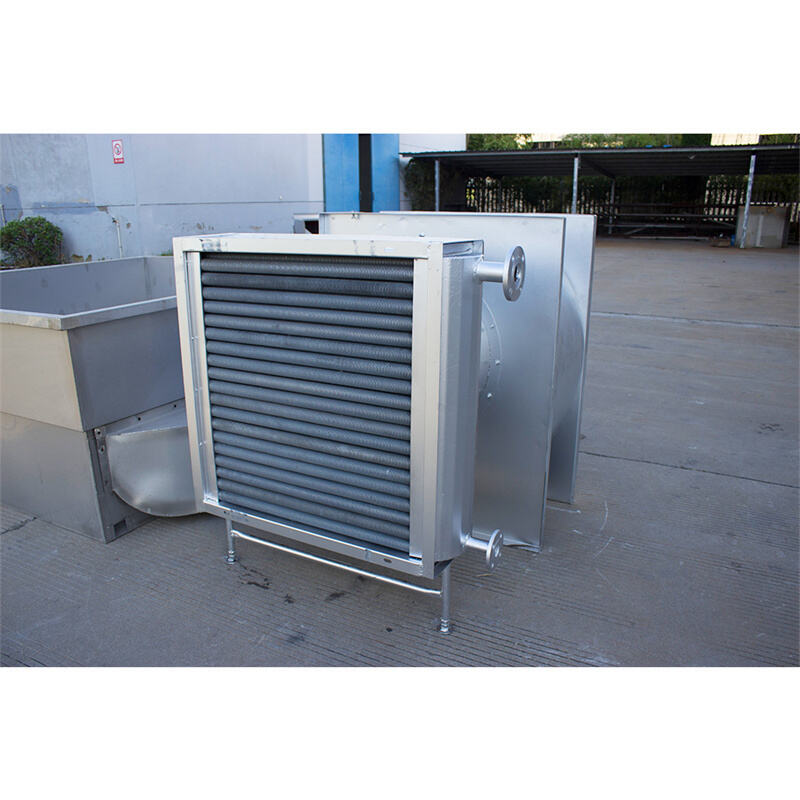

Heat Sink

• 4 rows of 76 Φ16 × 1 purple steel pipes and copper strips;

(2) It consists of 5-6 rows of Φ18 × 2 seamless steel tube aluminum ties, and the installation size is 880 × 880mm.
