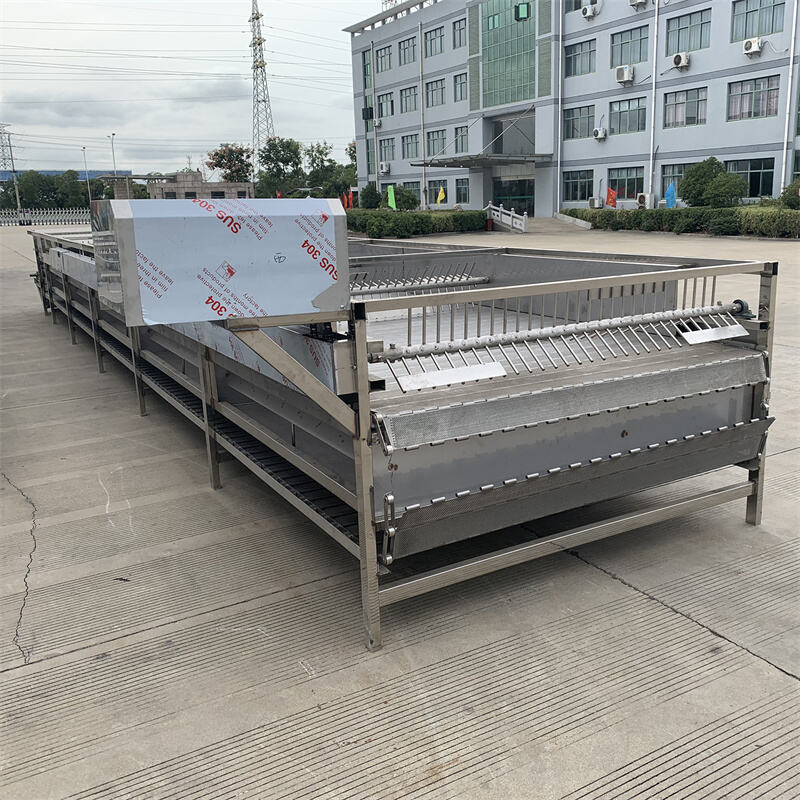

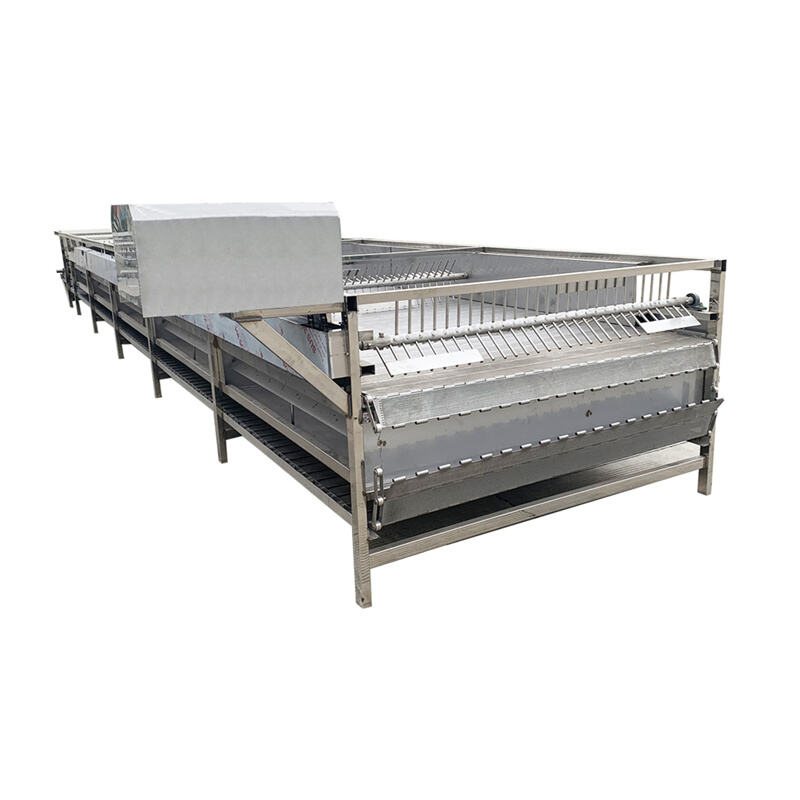

The LG-Series Open-Style Single-Layer Belt Drying Machine is a heavy-duty, high-capacity dehydration system designed for large-scale industrial food processing. This machine features an open-style configuration for high-efficiency airflow and mass throughput, making it ideal for the continuous drying of large volumes of agricultural produce. It is fully integrated with an automated washing and material handling system to ensure both product quality and production efficiency.
Primary Application: Continuous drying of fruits, vegetables, and food ingredients.
Core Material: The conveyor system utilizes food-grade SUS304 Stainless Steel for safety and hygiene.
|
Item |
Specification |
|
Dimensions (L × W × H) |
$18000 \times 2300 \times 1500\text{ mm}$ |
|
Effective Drying Length |
$18\text{ meters}$ |
|
Total Gas Consumption |
$2\text{ Tons/hour}$ |
|
Conveyor Motor |
$3\text{ kW/set}$ (2 sets total), Variable Frequency Control |
|
Mixing System |
$5\text{ sets}$, each $0.75\text{ kW}$ |
|
Fan Configuration |
$8\text{ sets}$ ($5.5\text{ kW/set}$) |
|
Heat Exchangers |
$8\text{ sets}$ |
|
Belt Specification |

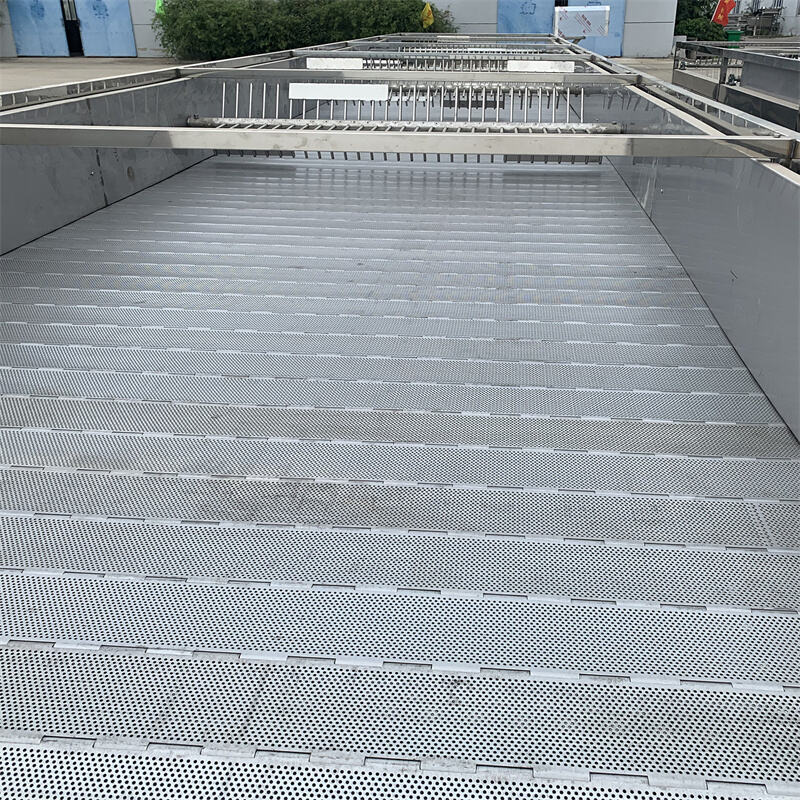

$2\text{m}$ width, SUS304 punched plate belt |

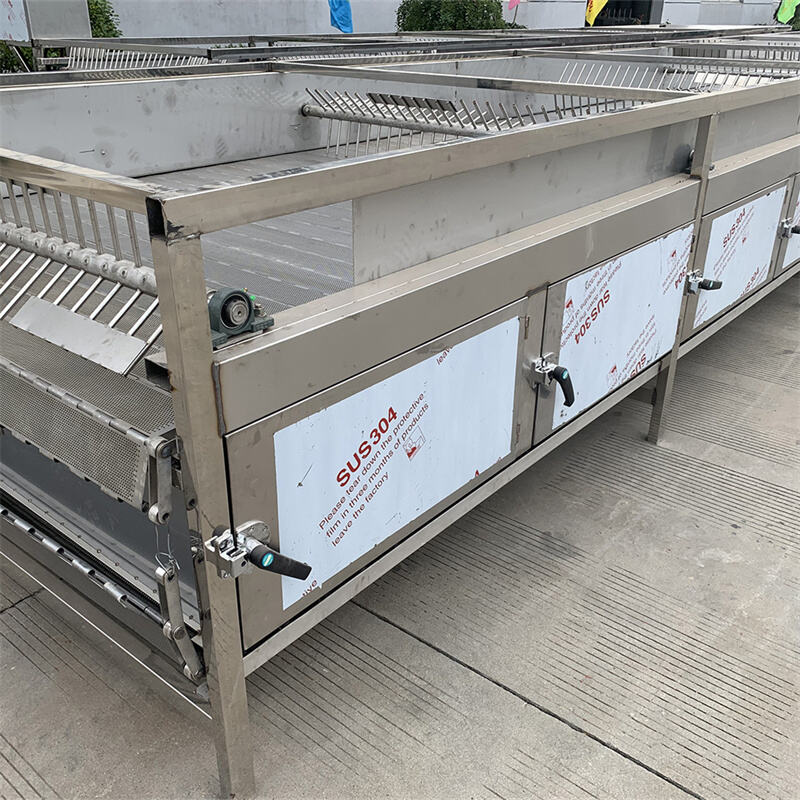

Reinforced Construction: To ensure long-term structural reliability, all materials meet a minimum thickness of $1.5\text{ mm}$. The support bracket is built at $3.0\text{ mm}$ thickness, while door panels and air chambers are $1.5\text{ mm}$ with integrated insulation.
Material Diversity:
Conveyor & Panels: High-grade SUS304 Stainless Steel.
Piping: SUS201 Stainless Steel.
Fans: Heavy-duty Carbon Steel for maximum durability.
Control System: Equipped with a Vertical Electrical Control Box that supports flexible installation in any position relative to the equipment. The conveyor motors feature Variable Frequency Speed Regulation for precise drying time control.
Discharge Mechanism: The discharge port is equipped with a high-efficiency shovel screw conveyor for consistent material output.
Cleaning Station: The lower section includes an integrated washing water tank ($\approx 3\text{ meters}$ long) featuring two brush scraping devices to ensure the belt remains clean during continuous operation.
Operation: The conveyor speed should be adjusted via the variable frequency controller according to the moisture content and volume of the material.
Safety: Always verify the electrical grounding of the vertical control box before operation. Ensure the brush scraping devices are clear of obstacles during maintenance checks.
Maintenance:
Regularly inspect the $8\text{ sets}$ of radiators for dust buildup to maintain heat transfer efficiency.
Periodically check the tension of the $2\text{m}$ wide punched plate belt to prevent slippage.
Clean the lower washing tank and brush rollers daily to maintain sanitary conditions.
