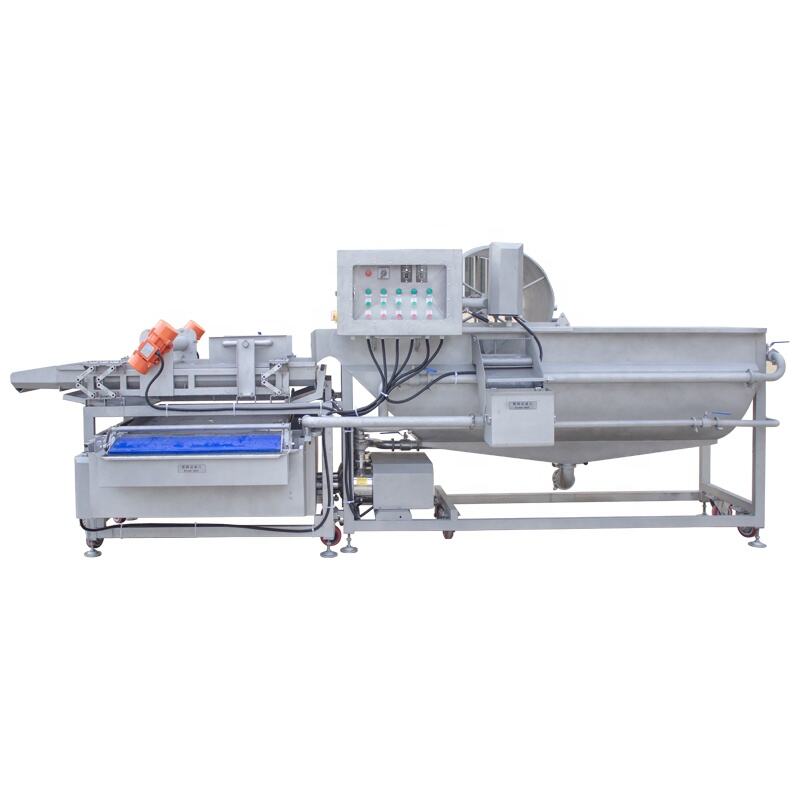

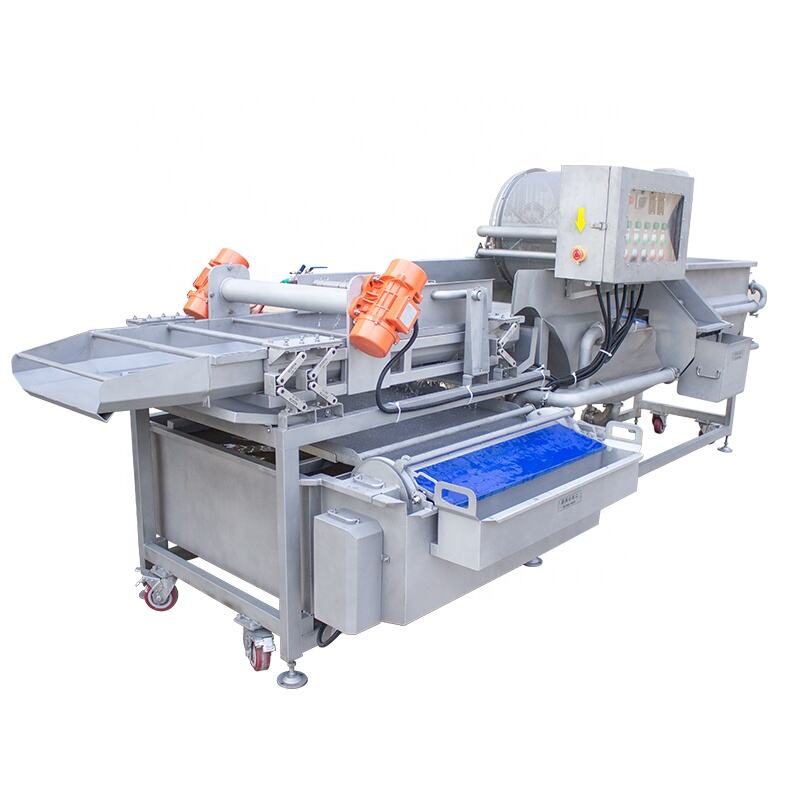

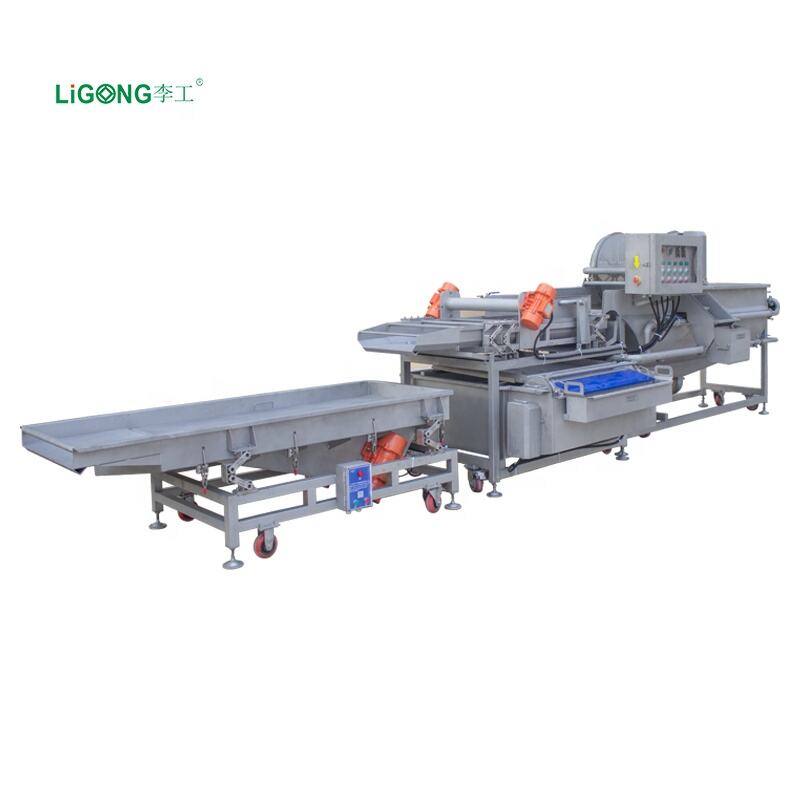

The Industrial Vortex Washing Machine is engineered for the high-efficiency, continuous cleaning of vegetables, fruits, and agricultural products. It effectively removes dirt, impurities, and surface residues while perfectly preserving the integrity of the material.
Vortex Cleaning Technology: The inlet and both sides of the tank body are equipped with specialized spray pipes driven by a high-pressure water pump. Under the action of these high-pressure sprays, the water inside the tank generates a powerful, continuous rotating vortex state. The products are rotated and advanced smoothly by the force of the water flow, achieving a $360^\circ$ thorough and damage-free cleaning process.
Optimal Vibration Balance:
The discharge end features a heavy-duty vibrating screen. The front end of the vibrating screen is equipped with a double vibration spring, and the back end is equipped with a single vibration spring. This precise mechanical configuration ensures uniform vibration frequency, maximizing water separation and efficiently screening out minor impurities to guarantee the cleanliness of the final product.
|
Parameter Item |
Technical Specification |
|
Overall Dimensions |
$4500 \times 1400 \times 2100 \text{ mm}$ ($L \times W \times H$) |
|
Installed Power |
$5.2 \text{ kW}$ |
|
Power Supply |
$380\text{V} / 50\text{Hz}$ / 3-Phase (Customizable) |
|
Main Material |
SUS304 Food-grade Stainless Steel |
|
Application |
Leafy/Root Vegetables, Fruits, Pet Food Ingredients |
Full SUS304 Construction: The entire machine, including the main body, tank, and internal components, is constructed from high-quality SUS304 food-grade stainless steel, ensuring outstanding corrosion resistance and compliance with international food safety standards (CE/FDA).
Heavy-Duty Bottom Frame: Built with robust stainless steel square pipes to provide superior structural stability, preventing deformation under long-term, heavy-load operations.
Industrial Motor Protection: The motor features advanced dustproof and waterproof capabilities, fully enclosed within a stainless steel protective cover to extend its service life in wet workshop environments.
Integrated Water Tray: The bottom of the machine is equipped with a SUS304 stainless steel water collection tray to prevent wastewater from splashing, keeping your factory floor clean and dry.
Safety Guards: The roller system is fully enclosed with a SUS304 stainless steel protective cover to ensure the utmost safety for operators.
Daily Inspection: Ensure the high-pressure pump water inlet is free of blockage before starting.
Sanitization: Thanks to the open design and SUS304 material, the tank can be directly washed down with a high-pressure water gun after shifts.
Spring Maintenance: Check the double and single vibration springs monthly for optimal tension and balance.
