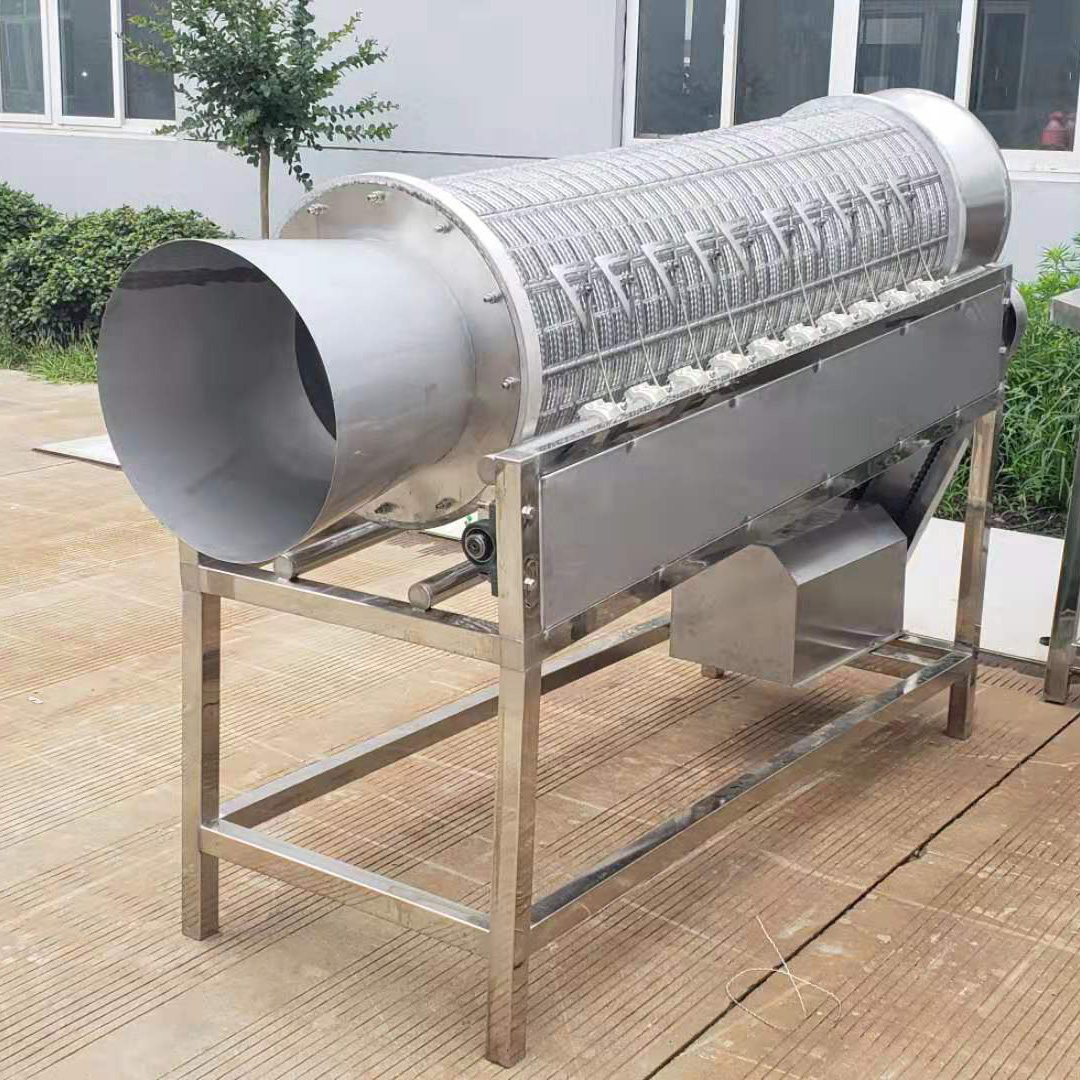

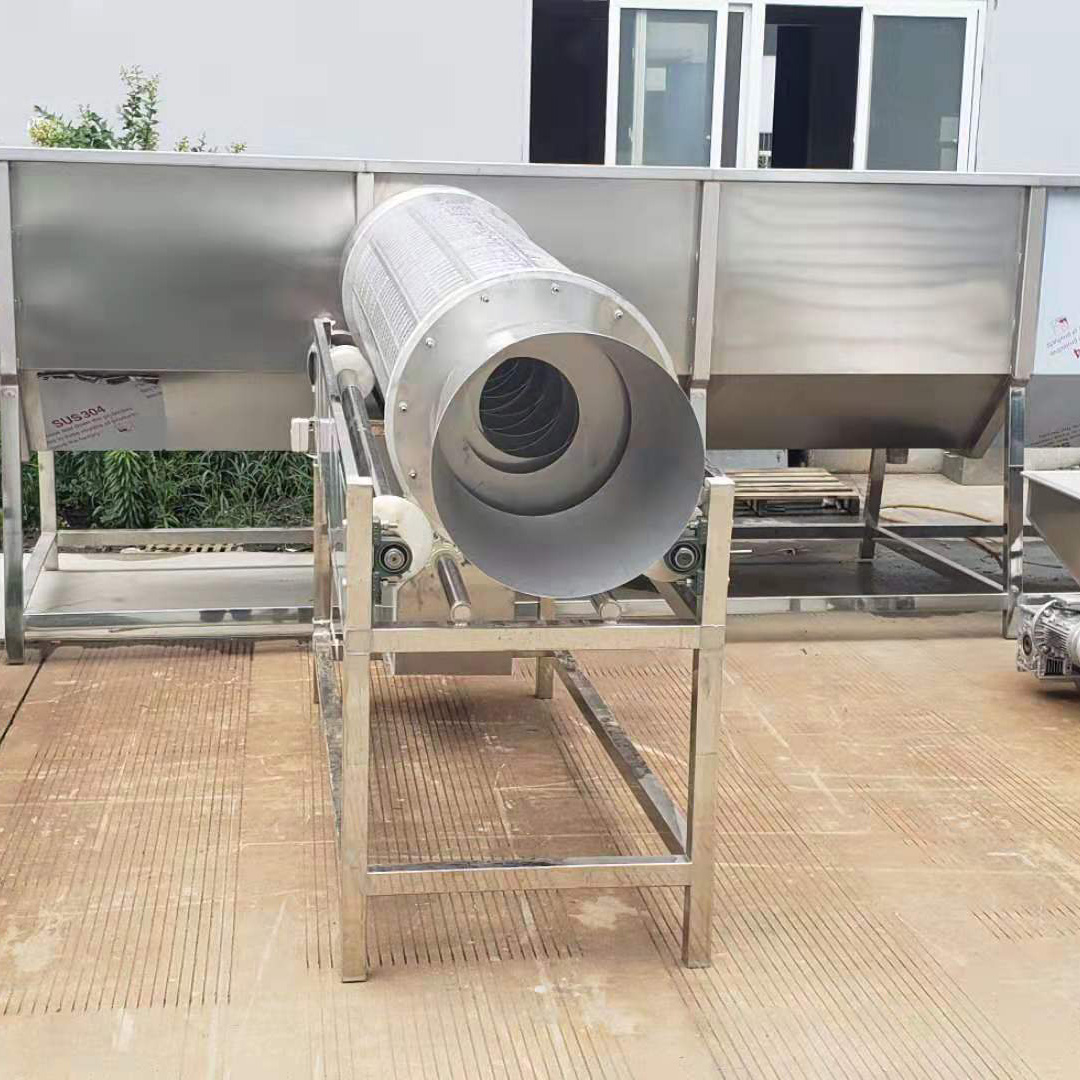

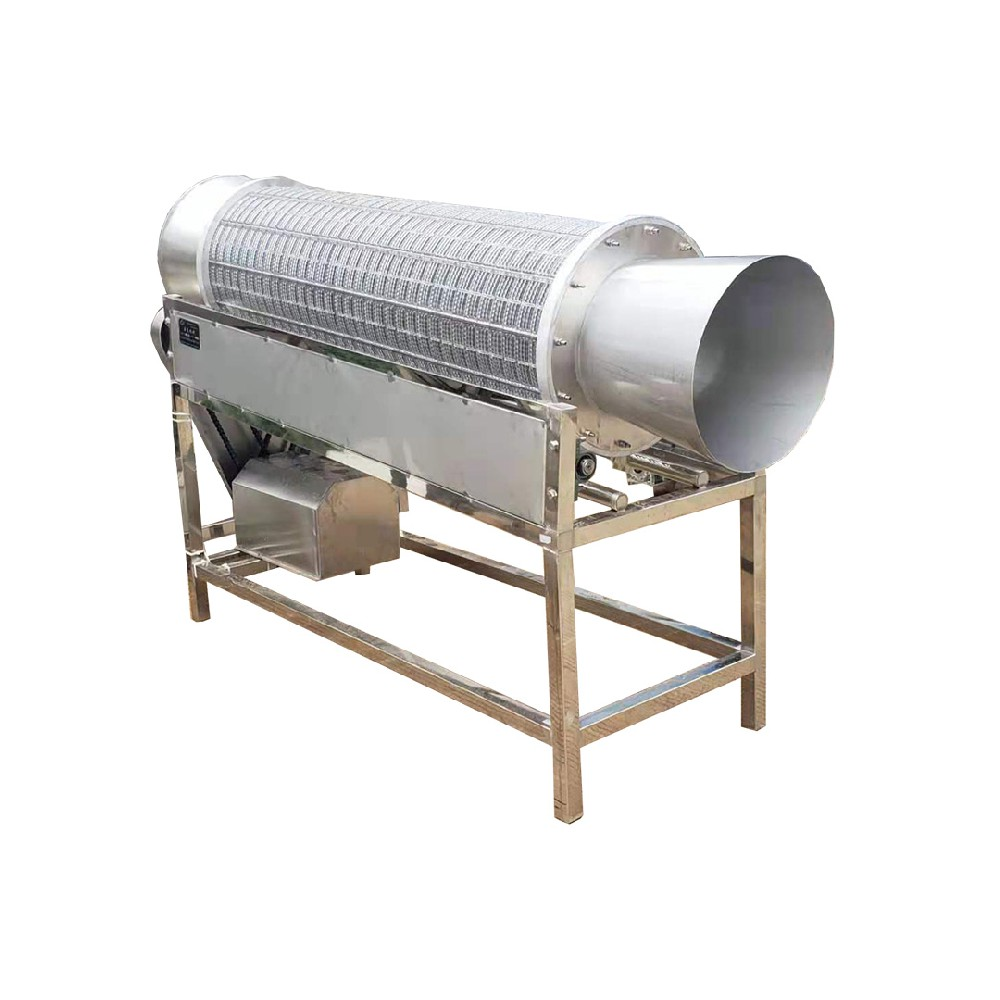

Rotary Green Bean Snipper

The LG Series Rotary Green Bean Snipper is a specialized high-efficiency machine designed by Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD for the automatic removal of heads and tails from green beans (string beans). This machine replaces labor-intensive manual trimming, ensuring high processing capacity and uniform cutting quality for the global food processing industry.

• Primary Application: Green beans, wax beans, and similar elongated vegetables.
• Core Material: Fully constructed from SUS 304 food-grade stainless steel for maximum hygiene and durability in wet environments.

The machine utilizes a rotating drum mechanism:

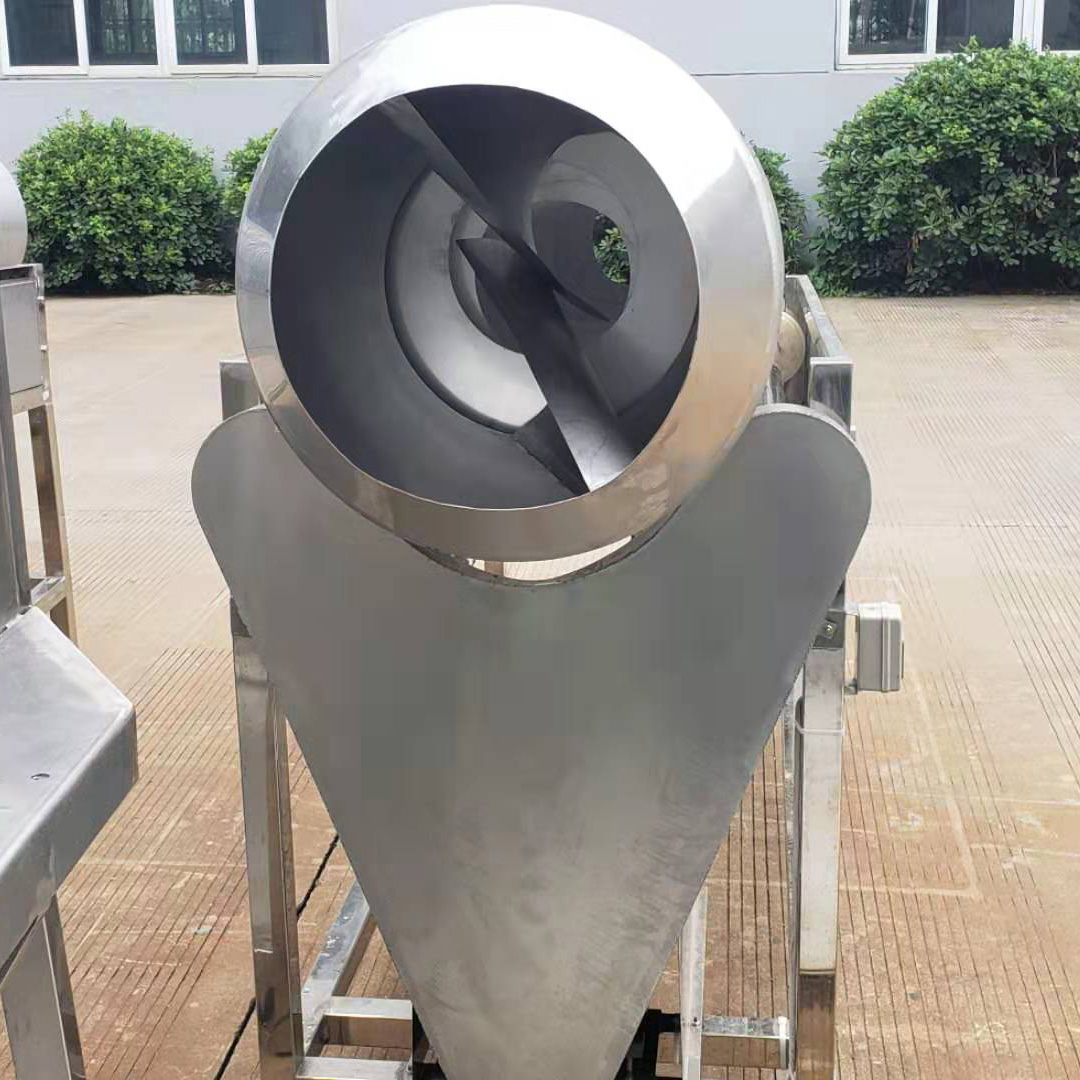

• Feeding: Raw beans are introduced through the large stainless steel intake hopper.
• Orientation: As the drum rotates, the beans tumble. The ends of the beans naturally stick out through the precision-engineered slots in the drum wall.
• Trimming: Fixed external blades precisely snip the protruding heads and tails as the drum passes them.
• Discharge: The processed beans are continuously moved toward the discharge outlet at the end of the drum.

High Efficiency: Capable of processing large volumes continuously, significantly reducing labor costs.

Superior Material: The SUS 304 stainless steel frame and drum ensure compliance with international food safety standards and ease of sanitization.

Gentle Processing: The drum design is optimized to prevent bruising or damage to the beans during the tumbling process.

Stable Construction: Features a robust industrial frame with a raised base for easy integration into existing production lines.

Note: Dimensions and processing capacities can be customized to meet your specific facility requirements.

System Check: Before startup, ensure the drum is clear of debris and the trimming blades are sharp and properly aligned.

Startup: Turn on the main power. Adjust the drum rotation speed if equipped with a frequency inverter.

Feeding: Introduce pre-washed beans into the intake hopper. For best results, maintain a steady feed rate.

Collection: Snipped ends will fall into the waste collection area beneath the drum, while finished beans exit through the front discharge chute.

Daily Cleaning: After each shift, use high-pressure water and food-grade sanitizers to wash the drum slots and internal chamber. The SUS 304 surfaces are designed for easy wash-down.

Blade Inspection: Regularly check the fixed blades for sharpness. Dull blades can result in ragged cuts and reduced yield.

Bearing Lubrication: Periodically apply food-grade lubricant to the drum’s drive bearings to ensure smooth, low-noise operation.
