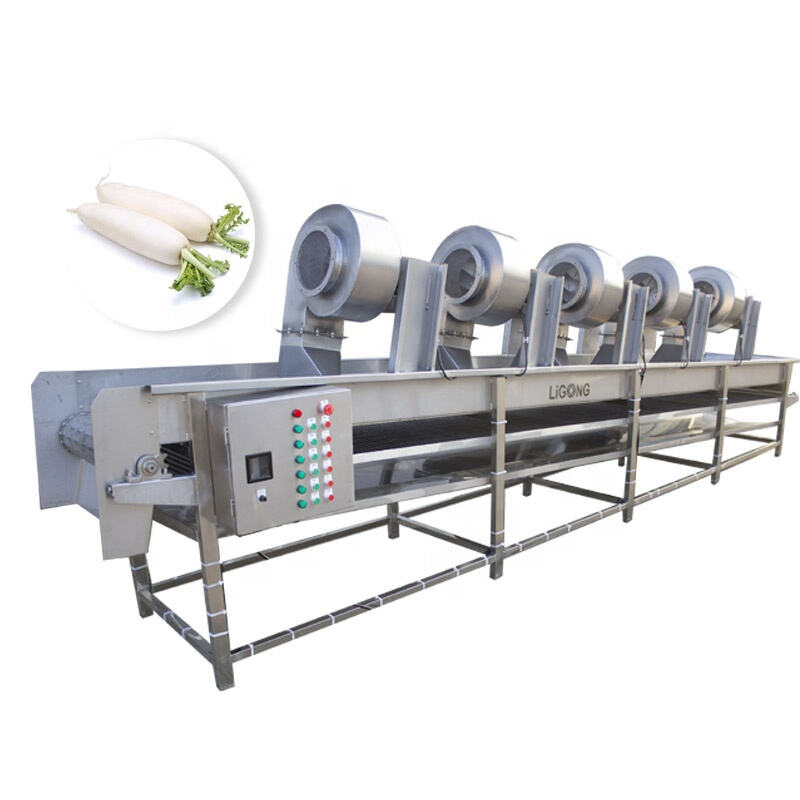

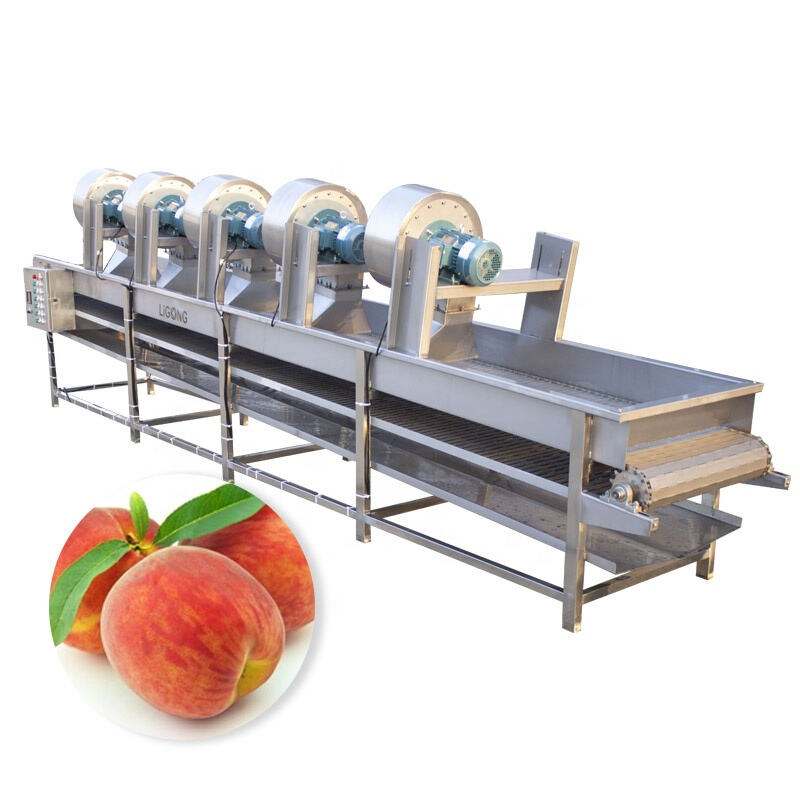

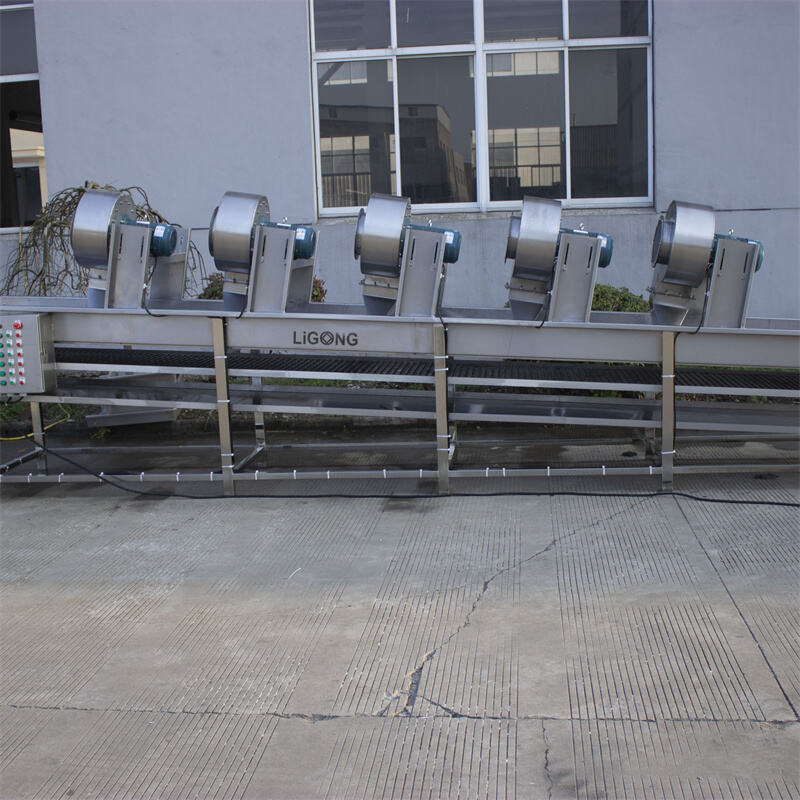

The LG-Series Industrial Air Dryer is a high-efficiency dewatering solution designed by Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD. It is specifically engineered to remove surface moisture from vegetables, fruits, and food products after the washing process. By utilizing powerful air-knife technology, it ensures products are dried thoroughly without heat damage, preparing them for immediate packaging or storage.
|
Item |
Specification |
|
Model |
LG-Series Air Dryer |
|
Dimensions (L × W × H) |
$3000 \times 800 \times 1300\text{ mm}$ |
|
Total Weight |
$320\text{ kg}$ |
|
Effective Belt Width |
$400\text{ mm}$ |
|
Blower System |
3 Sets of high-efficiency fans |
|
Production Capacity |
$1000\text{ kg/h}$ |
|
Total Power |
$9\text{ kW}$ |
|
Electrical Standards |
$380\text{ V}$, $50\text{ Hz}$, 3-Phase |
|
Construction Material |
Full SUS 304 Stainless Steel (excluding standard electrical parts/reducers) |

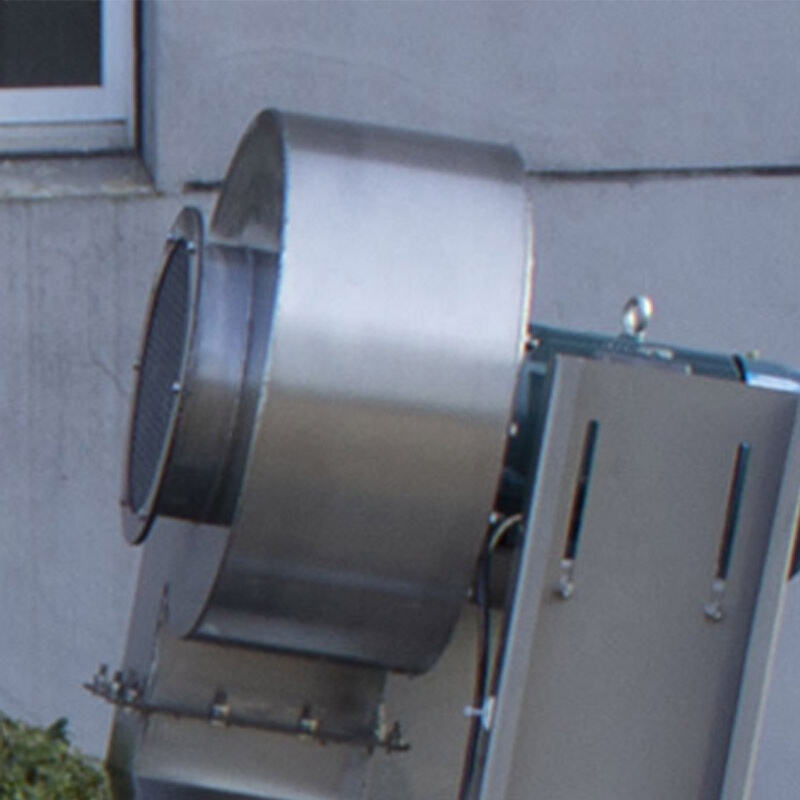

Rapid Surface Drying: The 3-set fan configuration produces concentrated, high-velocity air streams that efficiently blow away surface water droplets from the product.
Superior Durability: The stainless steel frame and components are designed for continuous, reliable operation in humid food processing environments.
Integrated Control: Features an easy-to-use electrical control panel that allows operators to manage the blower system and conveyor speed seamlessly.
Sanitary Design: The open-frame design facilitates quick cleaning and sanitization, meeting international food safety standards.
Setup: Place the machine on a level surface. Ensure the conveyor belt is correctly tensioned and clear of any foreign objects.
Connection: Connect the machine to a $380\text{V}$ 3-phase power source by a certified electrician.
Operation:
Turn on the conveyor system first.
Engage the 3-set blower system.
Feed washed products evenly onto the $400\text{mm}$ wide belt to ensure uniform drying.
Shutdown: After processing is complete, turn off the blowers followed by the conveyor belt.
Daily Cleaning: Use low-pressure water to wash the stainless steel belt and frame after each shift.
Inspection: Regularly inspect the fan intakes to ensure they are free of debris to maintain optimal air volume.
Safety Warning: Always ensure the machine is disconnected from the main power source before performing any internal maintenance or cleaning of the motor/fan components.
Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD Professional Solutions for Global Food Processing.
