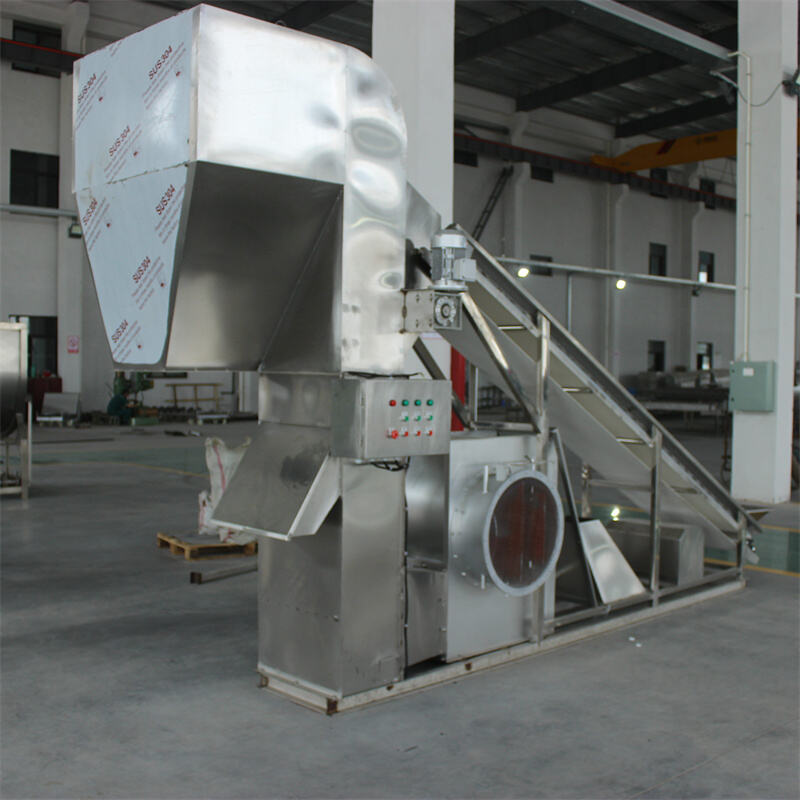

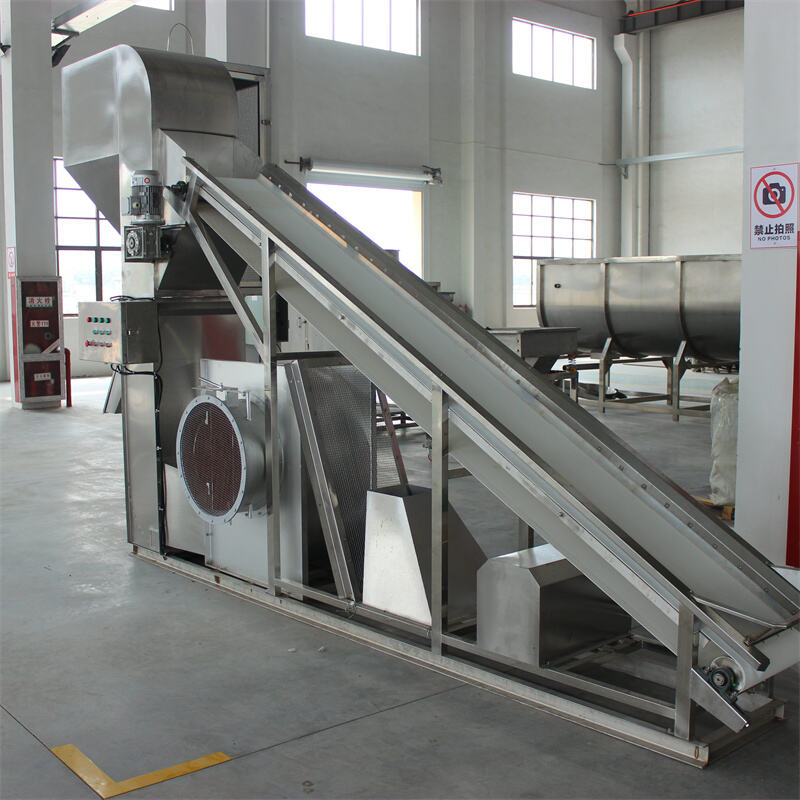

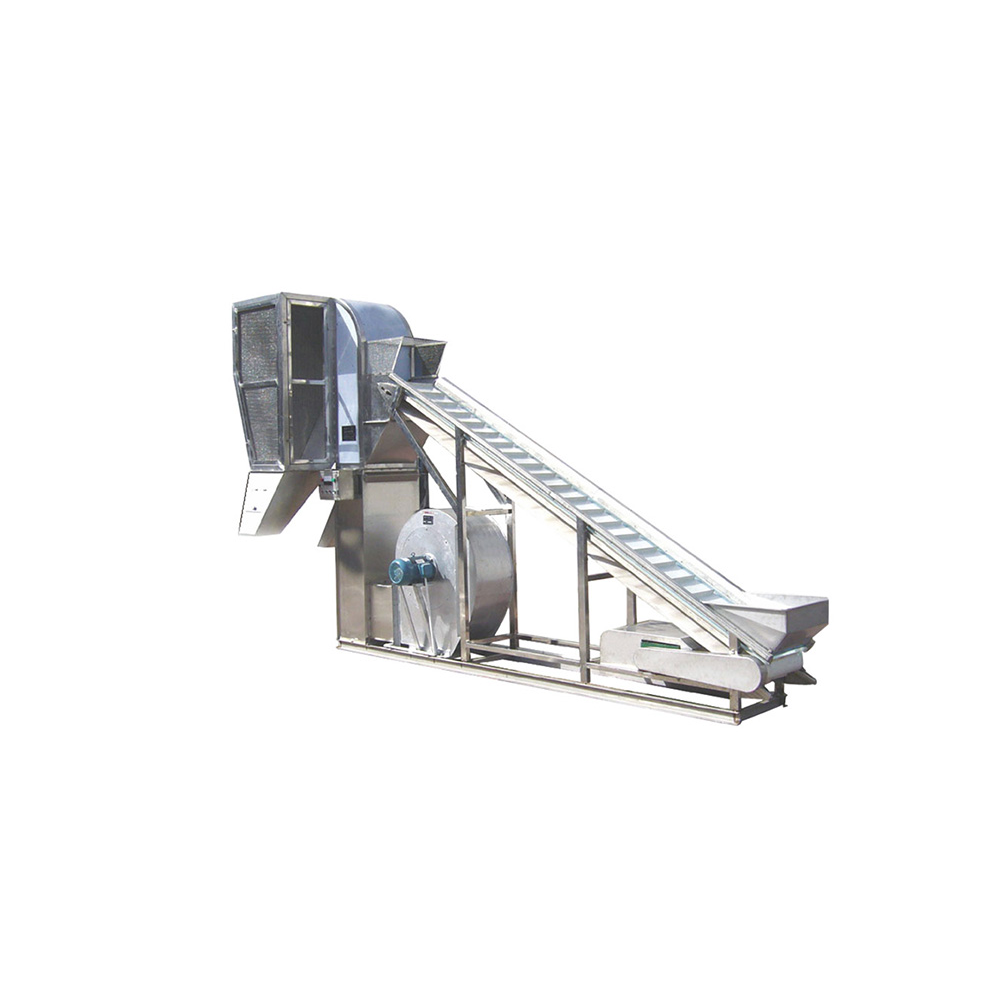

The LG-Series Leaf & Stem Air Classifier is an industrial-grade separation machine designed to sort agricultural products based on density and aerodynamic properties. By utilizing a high-velocity centrifugal air stream, this equipment effectively separates heavy materials (target product) from light materials (leaves, debris, or stems), ensuring high purity in your final production output.
Primary Application: Separation of heavy/light materials for vegetables, herbs, and various food crops.
Core Advantage: High throughput capacity combined with precise air-flow control for maximum separation efficiency.
|
Item |
Specification |
|
Model |
LG-Series Air Classifier |
|
Overall Dimensions |
$5300 \times 1700 \times 3150\text{ mm}$ |
|
Total Weight |
$800\text{ kg}$ |
|
Production Output |
$1000 – 5000\text{ kg/h}$ |
|
Fan Specification |
GB 4-72 No. 6 Centrifugal Fan |
|
Motor |
Y112M-4 B35 / $4\text{ kW}$ |
|
Air Flow |
$14500\text{ m}^3/\text{h}$ |
|
Full Pressure |
$723\text{ Pa}$ |
|
Component |
Height from Ground |
Dimensions |
|
Feed Inlet |
$760\text{ mm}$ |
Width: $530\text{ mm}$ |
|
Heavy Material Outlet |
$530\text{ mm}$ |
$600 \times 150\text{ mm}$ |
|
Light Material Outlet |
$1020\text{ mm}$ |
$250 \times 250\text{ mm}$ |
1.Installation: Place the machine on a flat, stable surface. Ensure the centrifugal fan motor is properly wired according to the Y112M-4 specifications.
2.Calibration: Adjust the air-flow velocity based on the weight difference between the heavy and light materials.

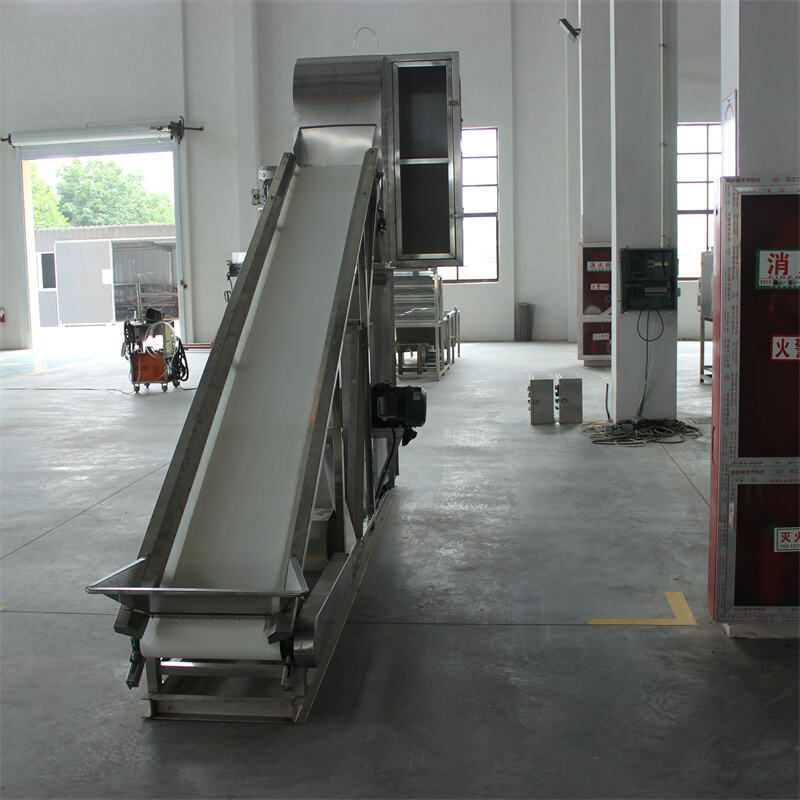

3.Feeding: Introduce the raw mixture through the $530\text{mm}$ feed inlet. The uniform distribution of material is essential for optimal separation.
4.Separation Process:

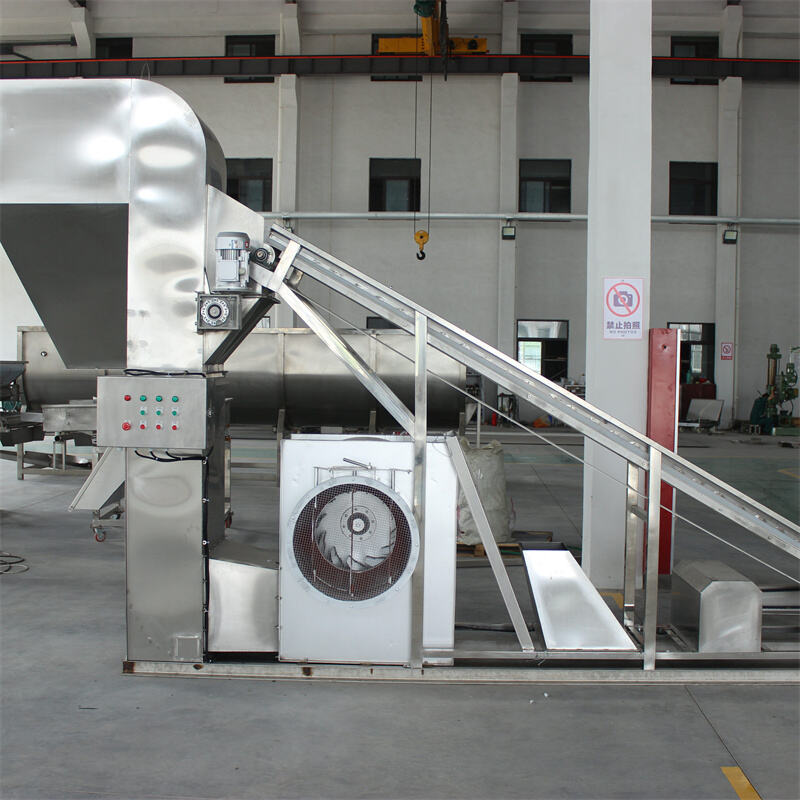

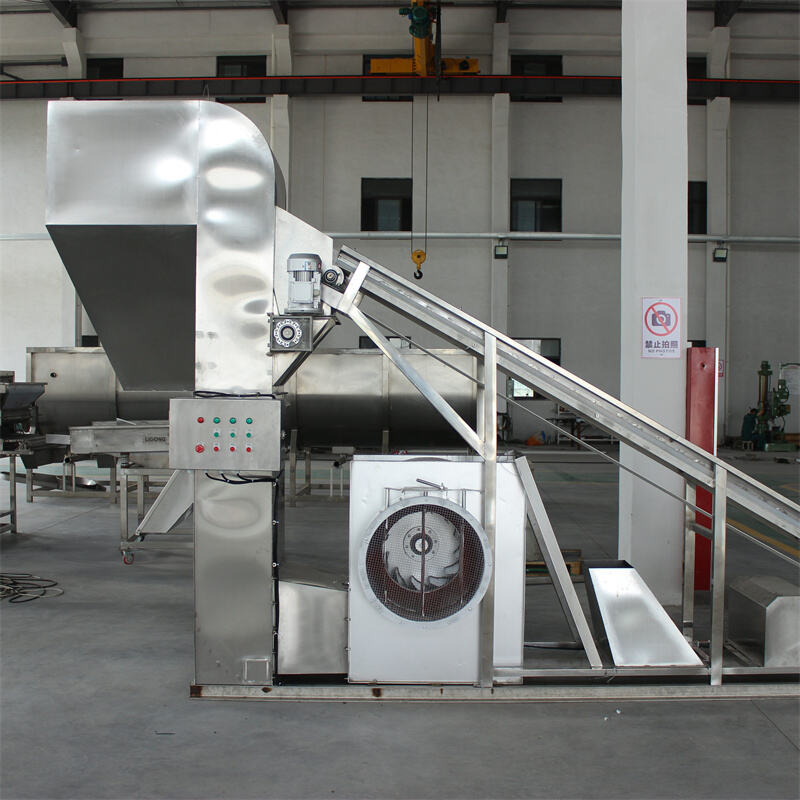

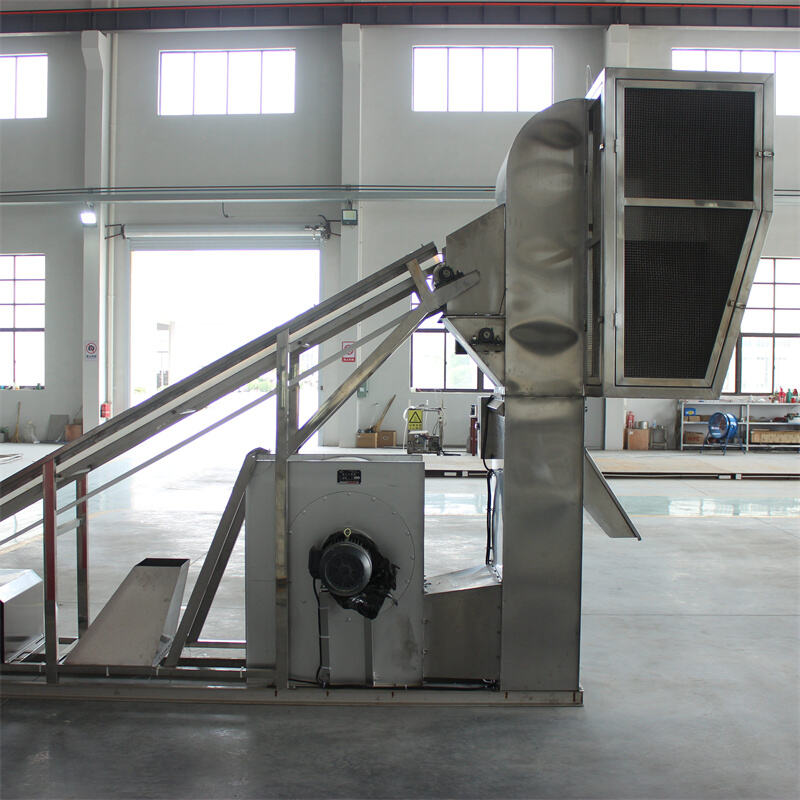

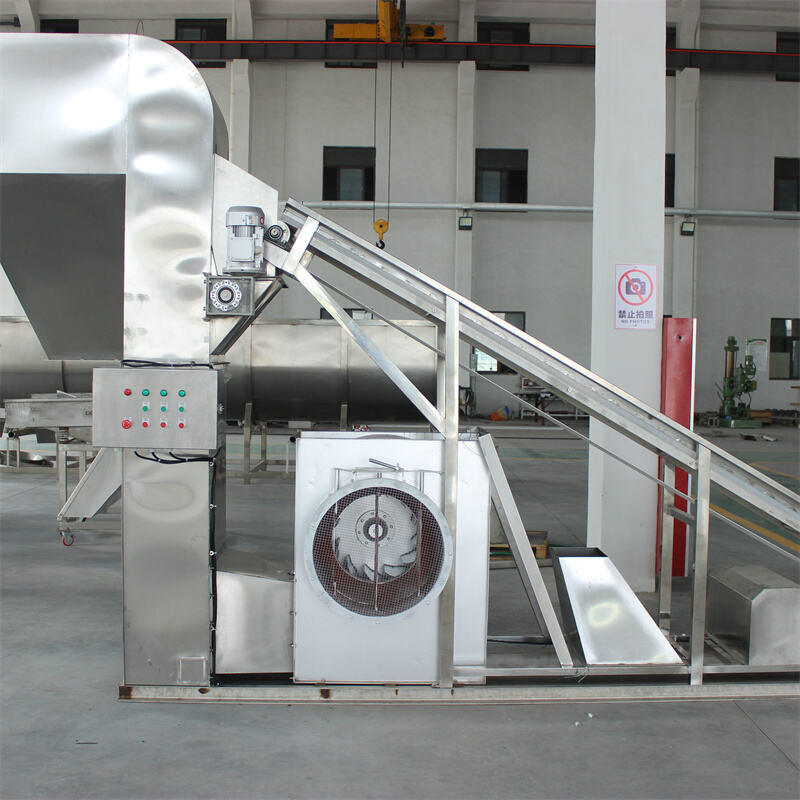

The Centrifugal Fan ($4\text{kW}$) generates a powerful air stream of $14500\text{ m}^3/\text{h}$ to lift the lighter components.
Light materials are propelled toward the Light Material Outlet ($1020\text{mm}$ high).
Target heavy materials fall into the Heavy Material Outlet ($530\text{mm}$ high) for collection.
Fan Maintenance: Periodically inspect the centrifugal fan impeller for buildup to ensure the full pressure of $723\text{Pa}$ is maintained.
Cleaning: The stainless steel structure allows for easy wash-down. Ensure the motor is protected from water during cleaning.
Safety: Do not operate the machine without the safety guards on the fan assembly. Ensure the unit is disconnected from the power supply before performing internal inspections.
Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD
Precision Engineering for Agricultural Processing.
