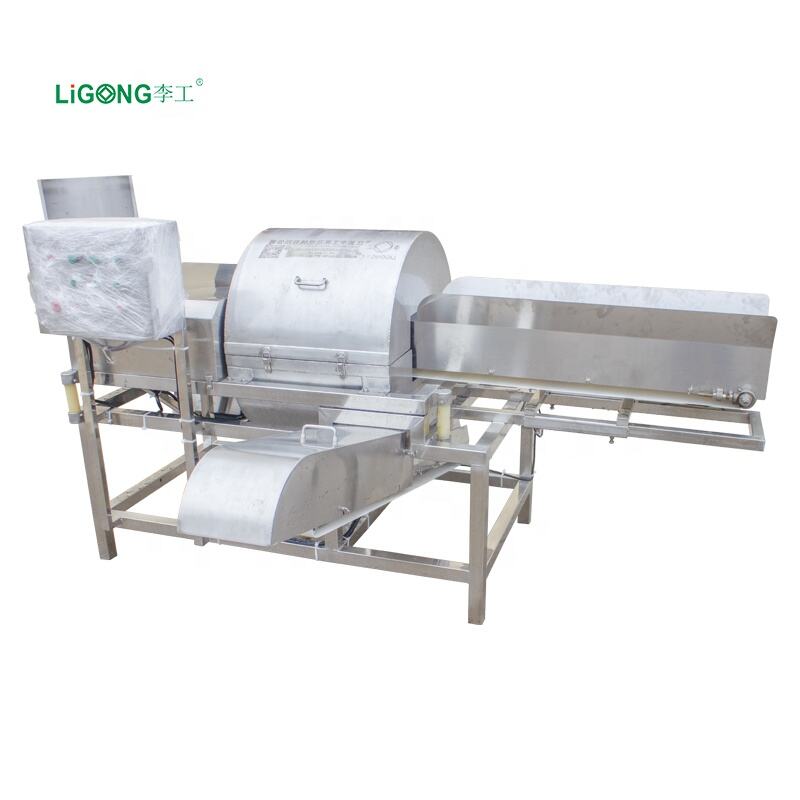

The LG-Series Continuous Dehydrator is a high-efficiency industrial machine engineered for the automated, continuous removal of water from vegetables, fruits, and food products. By integrating an automated feeding system, high-speed centrifugal drying bucket, and discharging conveyor, this machine is designed to streamline production lines and ensure consistent food processing quality.
|
Item |
Specification |
|
Model |
LG-Series Continuous Dehydrator |
|
Dimensions (L × W × H) |
$2400 \times 1850 \times 1350\text{ mm}$ |
|
Total Weight |
$500\text{ kg}$ |
|
Feeding (Inlet) Height |
$1000\text{ mm}$ |
|
Feeding (Inlet) Length |
$1180\text{ mm}$ |
|
Discharge (Outlet) Height |
$640\text{ mm}$ |
|
Discharge (Outlet) Width |
$200\text{ mm}$ |
|
Bucket Dimensions |
$\phi 650\text{ mm} \times 400\text{ mm}$ (Depth) |
|
Bucket Motor |
$3\text{ kW}$ |
|
Feeding Motor |
$0.55\text{ kW}$ |
|
Discharging Motor |
$0.55\text{ kW}$ |
|
Frame Material |
$50 \times 50 \times 3.0\text{ mm}$ SUS304 Square Pipe |
|
Machine Material |
Full SUS304 Stainless Steel |
Continuous Throughput: Unlike traditional batch-type centrifuges, this system supports continuous input and output, significantly increasing factory capacity.
Robust Construction: Built with a $50 \times 50 \times 3.0\text{ mm}$ SUS304 stainless steel frame, providing excellent stability and vibration resistance during high-speed operation.
Independent Drive Systems: The machine utilizes separate motors for the main dehydration bucket, feeding, and discharging systems, allowing for precise control over processing time and throughput.
Hygienic Design: Constructed entirely from high-grade SUS304 stainless steel to meet international food safety requirements, facilitating easy cleaning and rapid sanitization.
Leveling: Place the machine on a flat, solid surface. Adjust the leveling feet to ensure the machine is stable to prevent excessive vibration during operation.
Power Connection: Ensure the electrical supply matches the machine's requirements. Wiring should be carried out by a certified technician.
Feeding: Products enter the machine through the $1180\text{mm}$ long inlet. Adjust the feeding motor speed based on the product type to ensure a smooth, continuous flow into the dehydration bucket.
Dehydration: The $3\text{KW}$ bucket motor drives the centrifugal process to remove surface water.
Discharge: The finished product is transported out through the $200\text{mm}$ wide discharge outlet, ready for the next step in the production line.
Safety: Do not reach into the bucket while the machine is powered on. Ensure all covers are secured during operation.
Cleaning: After each shift, disconnect the power supply and clean the interior of the bucket, the inlet, and the discharge conveyor with food-grade detergent and water.
Maintenance: Periodically inspect the drive belts and electrical components for wear. Ensure the stainless steel frame remains free of heavy acid or salt buildup to maintain its anti-corrosive properties.
Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD
Leading the way in food processing automation.
