Brief Introduction |

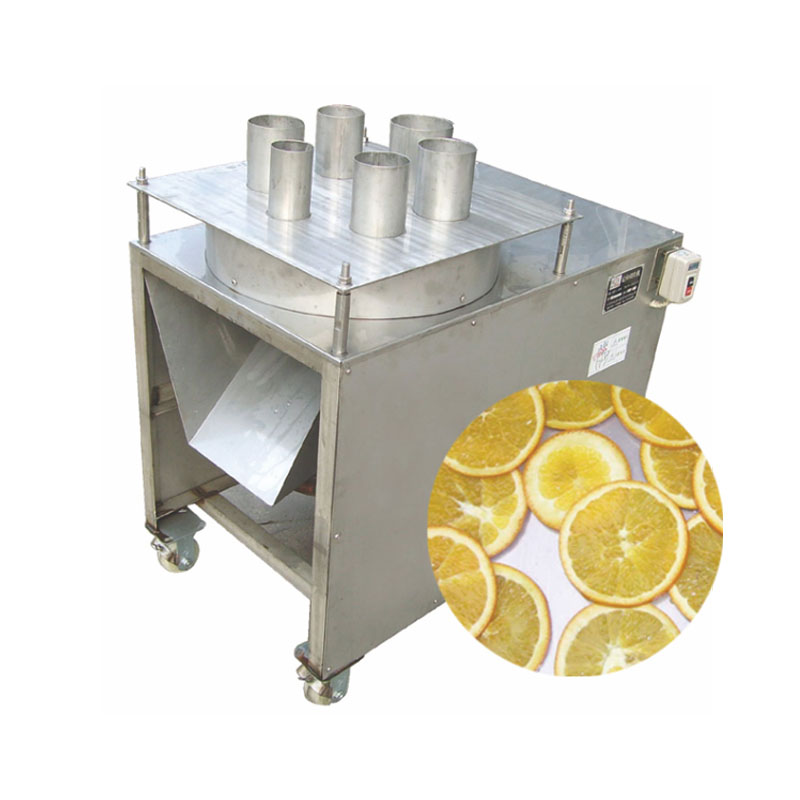

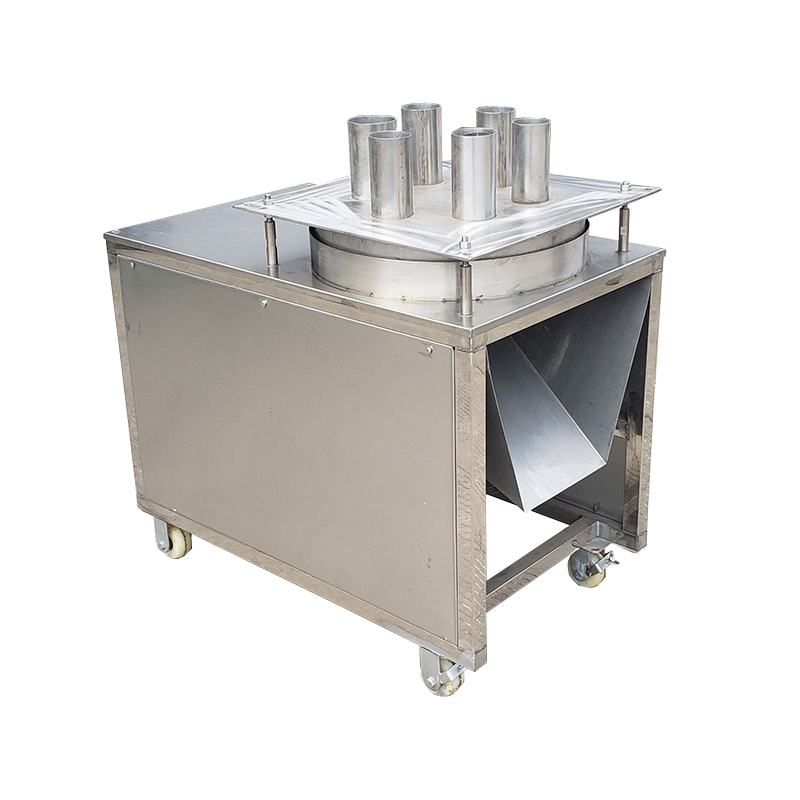

This machine is designed and manufactured in accordance with the increasing requirements of market product quality. According to the size of the material, choose the appropriate inlet, manually forward, one material after another, and manually press into the inlet. Bananas, wafers, ovals do not need to be pressed by hand. It has the characteristics of accurate orientation, adjustable sheet thickness, consistent thickness, and good finish. Suitable for carrots, incense sticks, onion rings, apple rings, lotus root, burdock, yam, bamboo shoots, sweet oranges and other potato, ball, root fruit and vegetable materials. |
||||
Technical parameters
Alternator Specifications
(100% Copper Wires Alternator)
Type |
Power |
Rated voltage |
Current |
Y90S-6 |
0.75kw |
380V |
2.3A |
Rated frequency |
Rated speed |
Power Factor |
Efficiency |
60HZ |
910rpm |
0.7 |
72.5% |
Material Insulation Class |
Protection class |
Cooling method |
|
B |
IP54 |
IC411 |
Product information
Dimension (mm) |
Cut specification (mm) |
Sheet thickness (mm) |
Capacity (kg) |

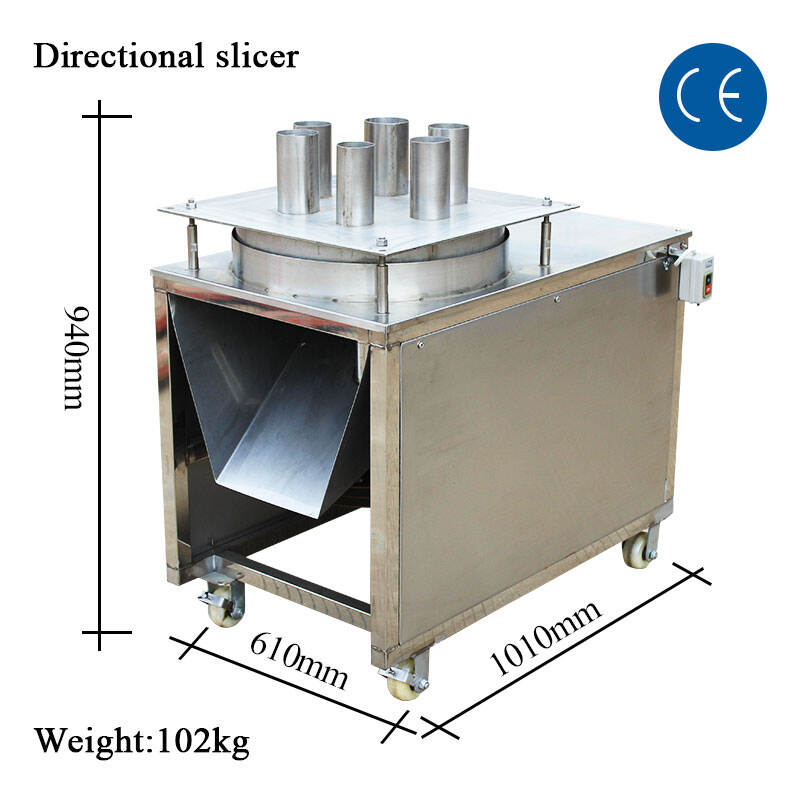

1010*610*940 |
1.6~30 |
1-6 |
300 |

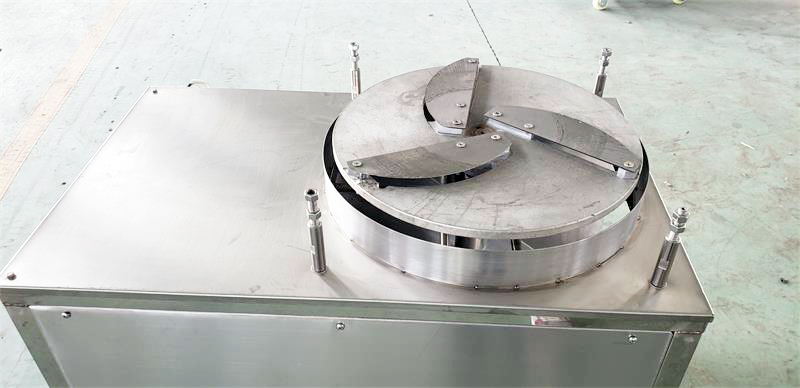

Cutter head (kg) |
Exit size (mm) |
Feed trough (mm) |
Texture |
10 |
370*270*370 |
Φ22~Φ120 |
304 stainless steel |

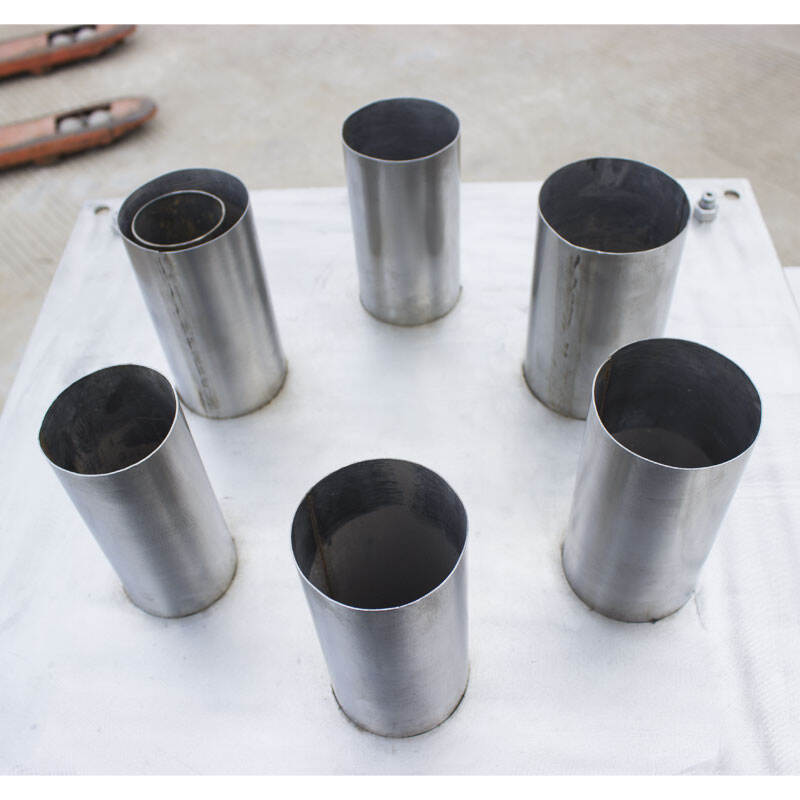

1. Normally supply feed hole specifications Φ76, Φ63, Φ51, Φ38, 2 holes each or order according to user needs.
2. The slice shape of the oblique installation of the inlet is an ellipse, and it is produced according to the users order specifications.
3. It can also be made into an oval-shaped inlet according to the material.
4.Sheet thickness: 1-6mm
We offer a full range of brand new high quality products. Each unit is strictly tested in the factory.
