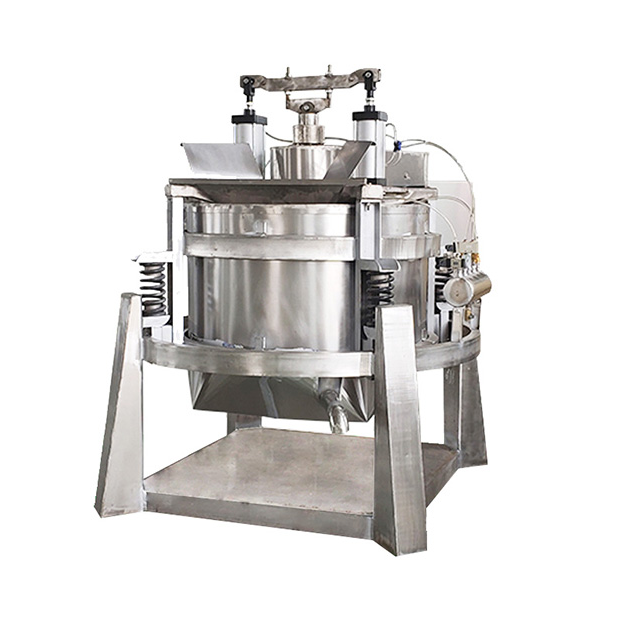

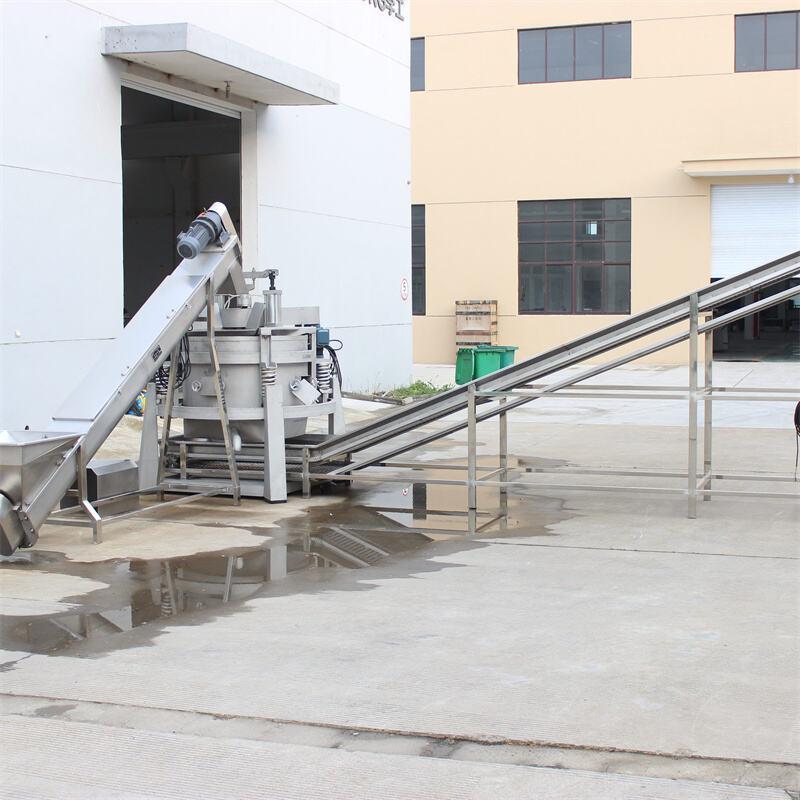

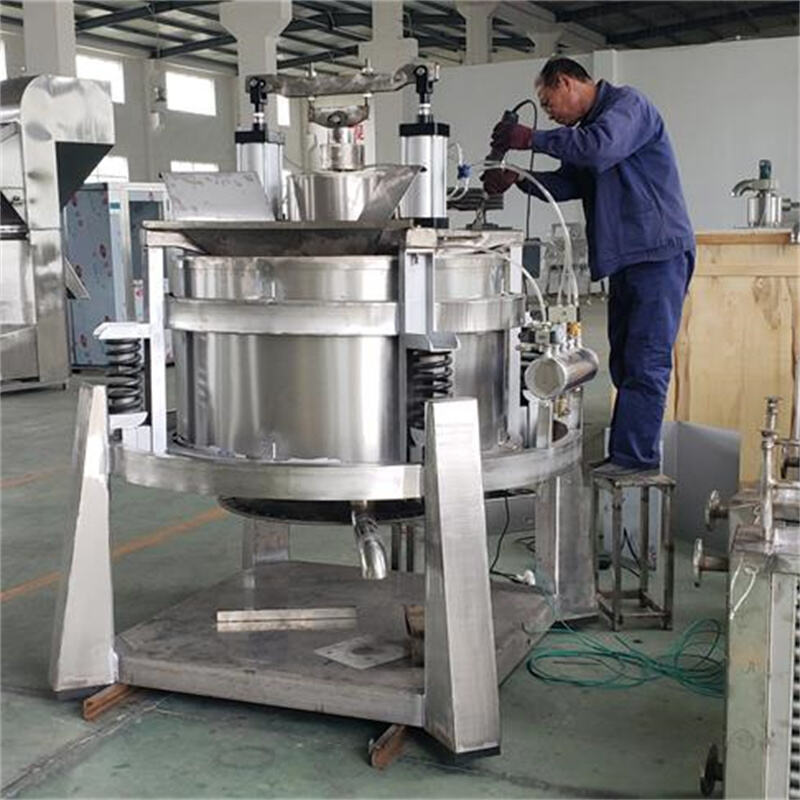

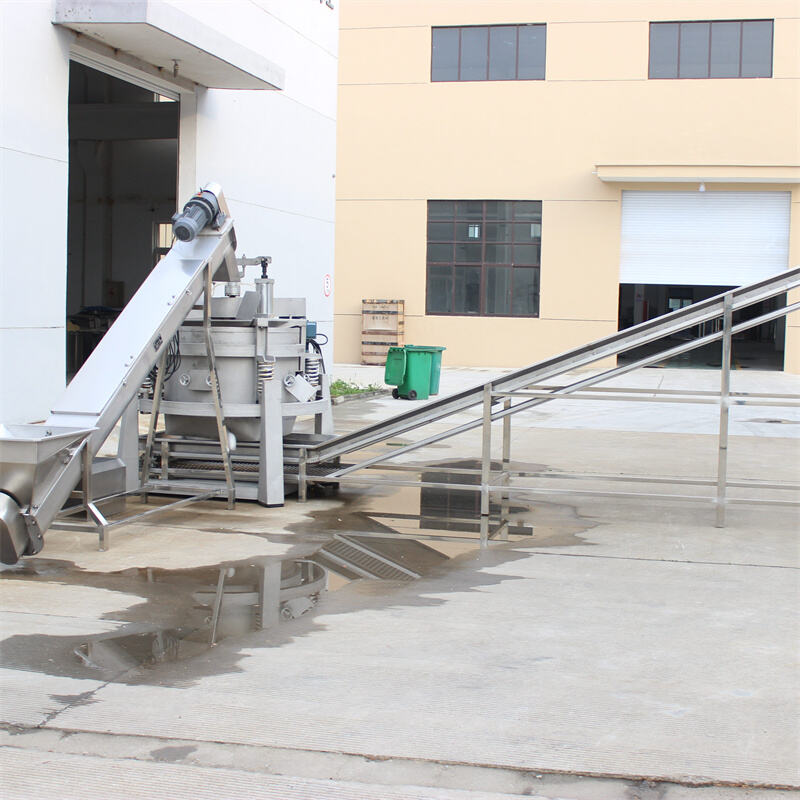

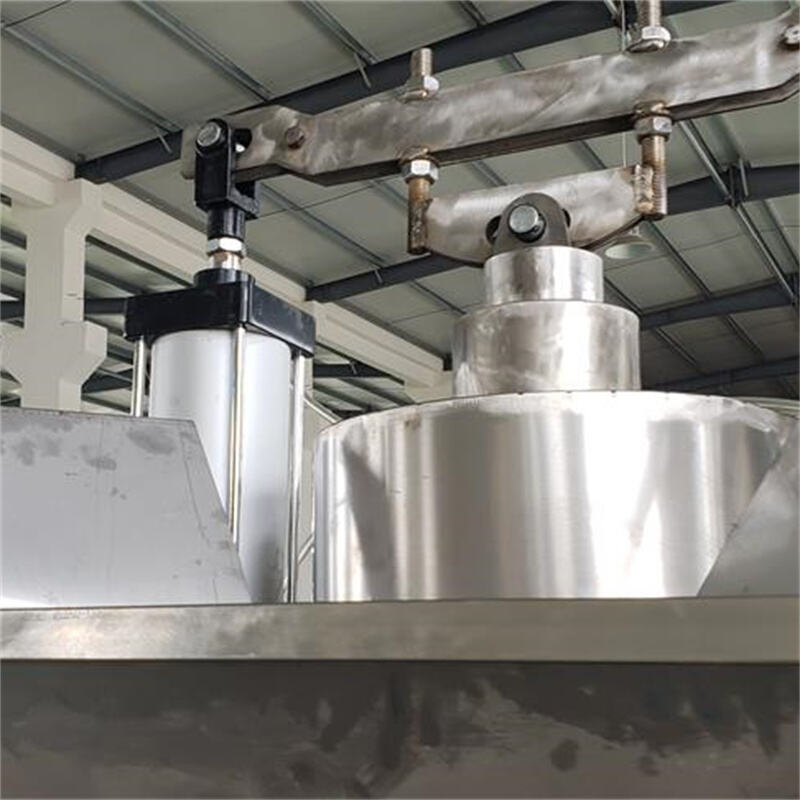

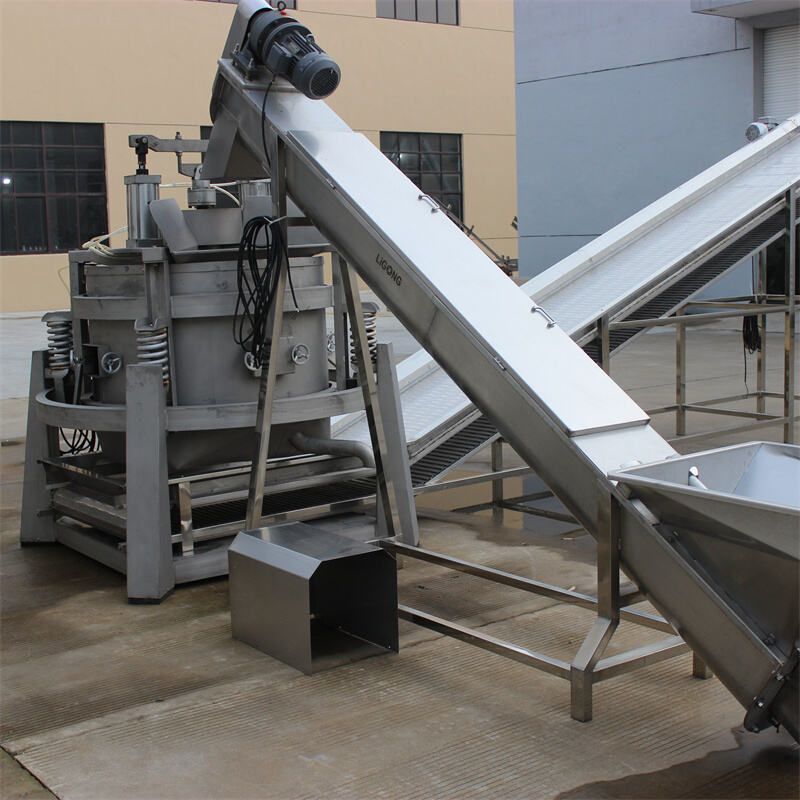

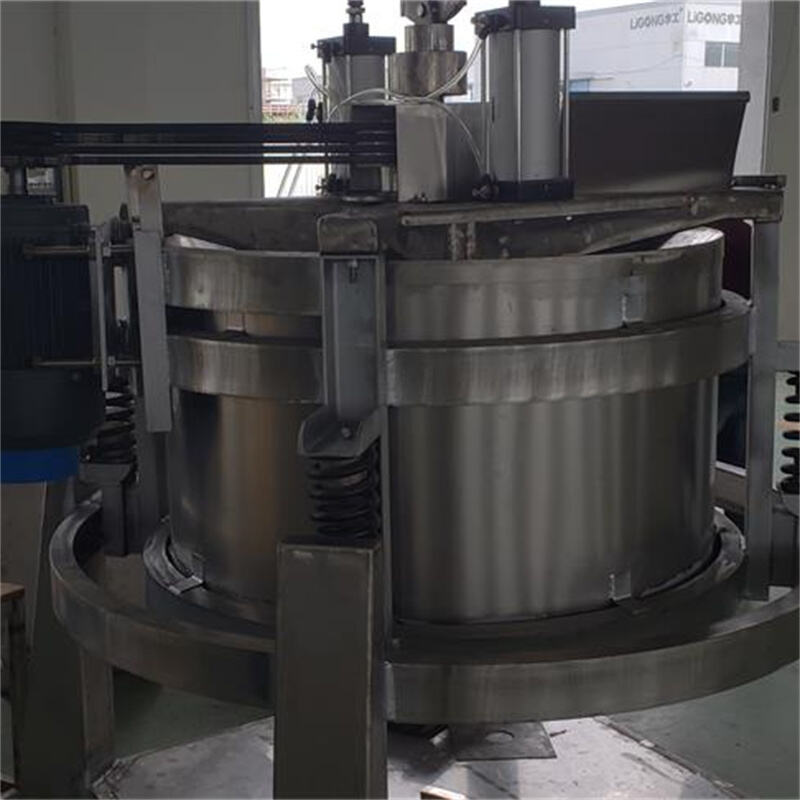

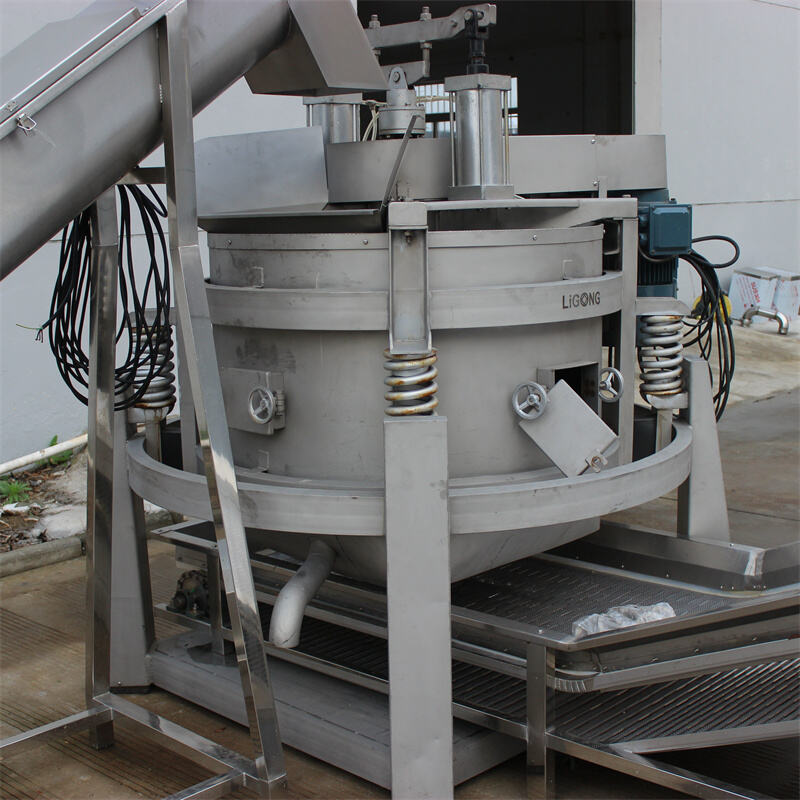

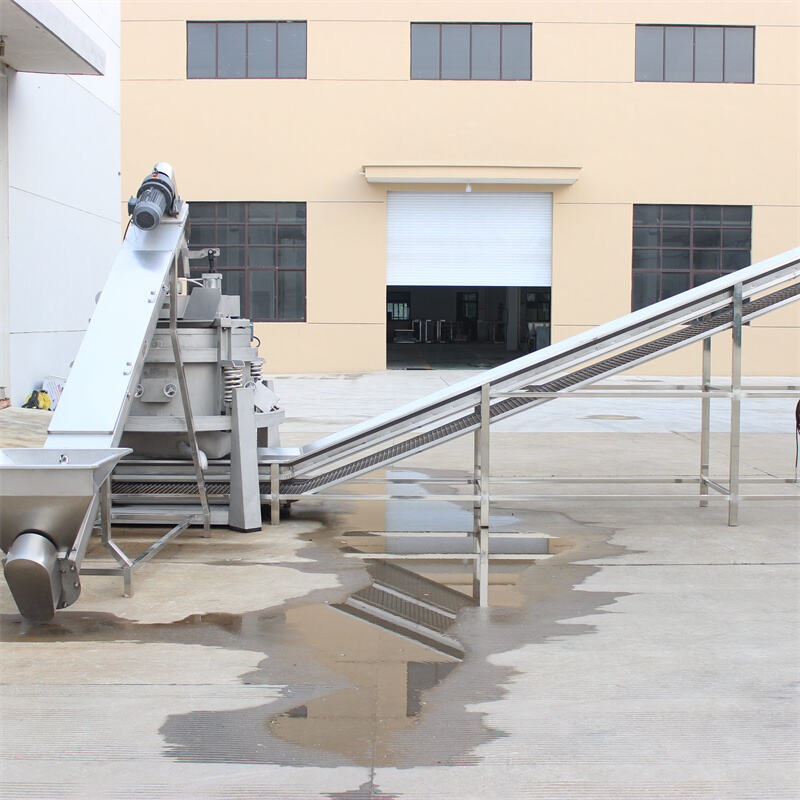

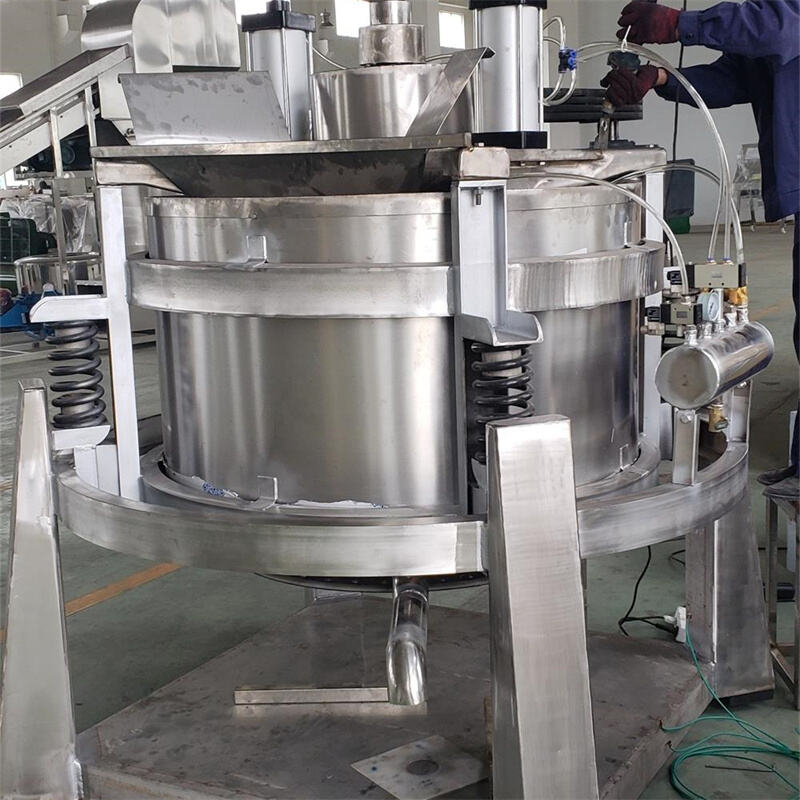

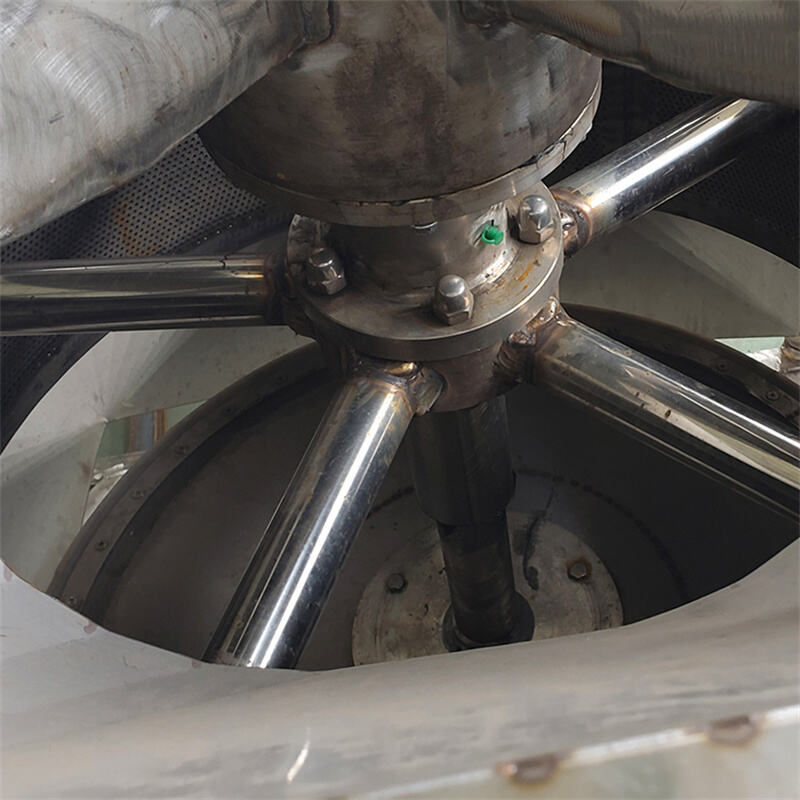

Automatic dewatering machine |

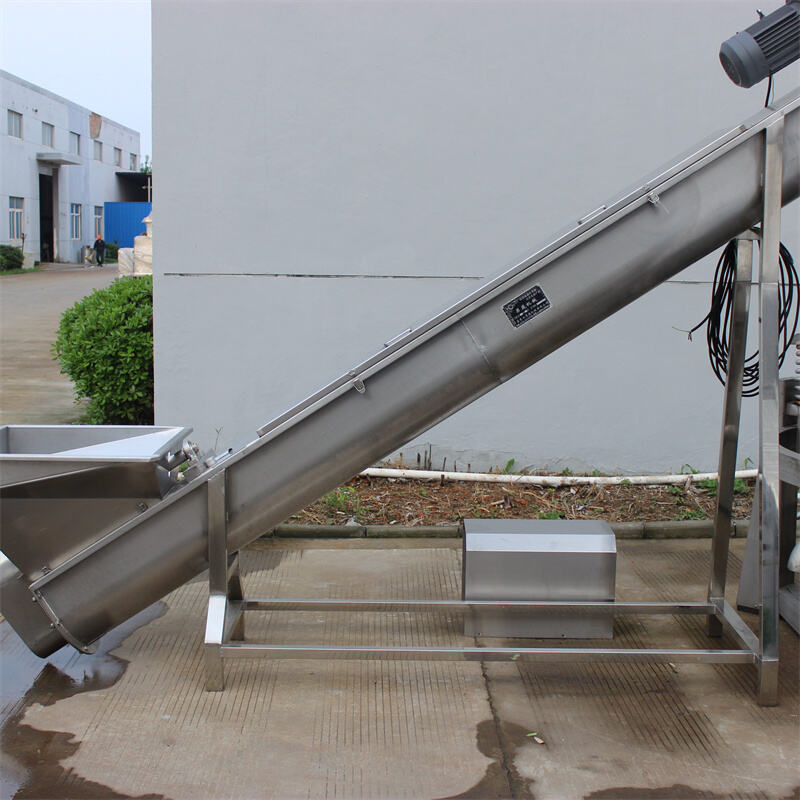

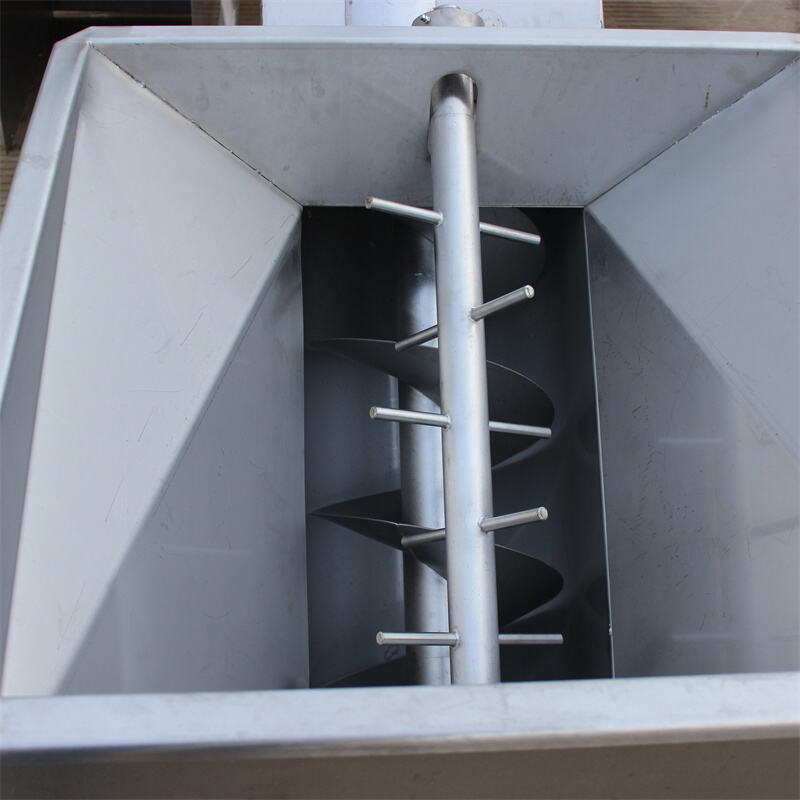

Production capacity: 1.5-2.0T /h Each feeding: 50-60kg, unlimited cycle operation, dry evenly.A. Overall dimension: 2000*2000*2200mm; B. The thickness of 304 stainless steel plate is 1.5mm; C, support material: 304 stainless steel square tube 150*100, 100*100, thickness of 5.0mm; The thickness of the flange used for the chassis of the water cooler is 20mm, and the plate thickness is 3mm(SUS304 stainless steel). D,The feeding time, water dumping time and discharging time program can be adjusted. Electric cabinet HLP converter box with 1 E, SUS304 stainless steel control cabinet integrated control, stable performance F, swing bucket dynamic balance control, even in the case of high speed rotation, shaking is very light, Greatly reduces the shaft, bearing the loss of connection part G, 11.0 KW variable frequency motor - feeding machine, dryer and discharging hoist, this 3 part is equipped with an electric cabinet, previously the feeding machine, more than about 10 seconds, and then dryer can set a time to dry for about 20 seconds, and then discharge approximately 20 seconds (dry and discharging of the more than 40 seconds time), the machine is stop working. The principle of dryer: the principle is the same as washing machine, through a large number of compressed air blow, air pressure to shake dry.- If the total centrifugation time is 50 seconds/time; One hour can be done 72 times, each time 21 kg; If the total centrifugation time is 40 seconds/time; One hour can be done 90 times.
|

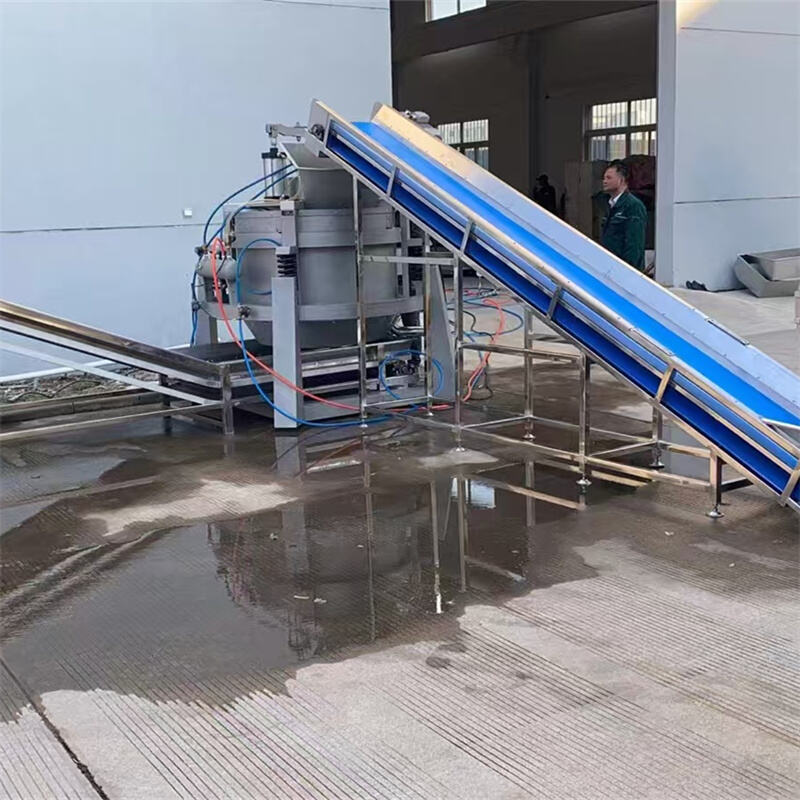

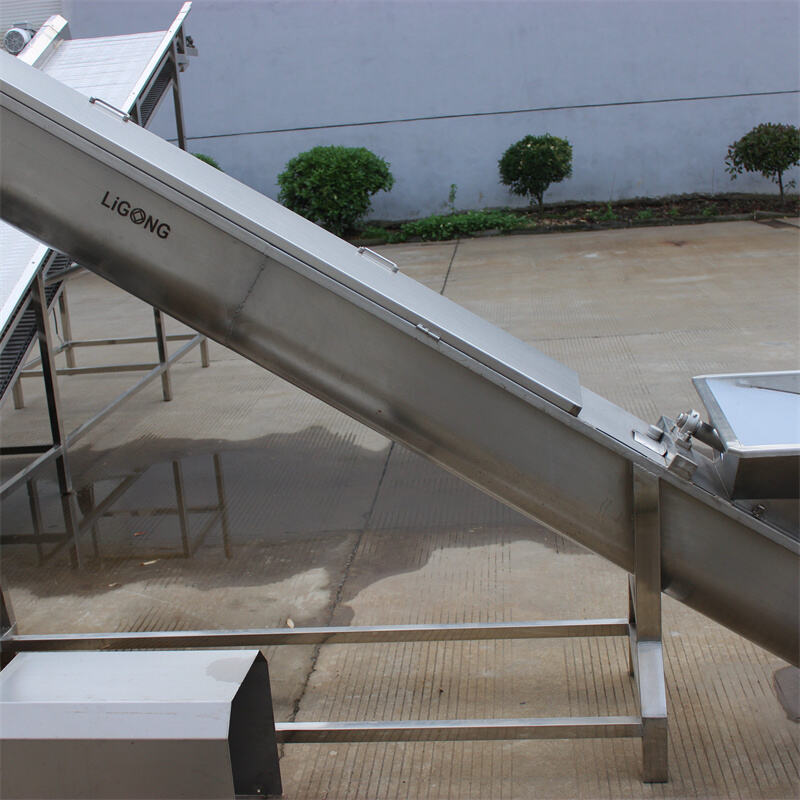

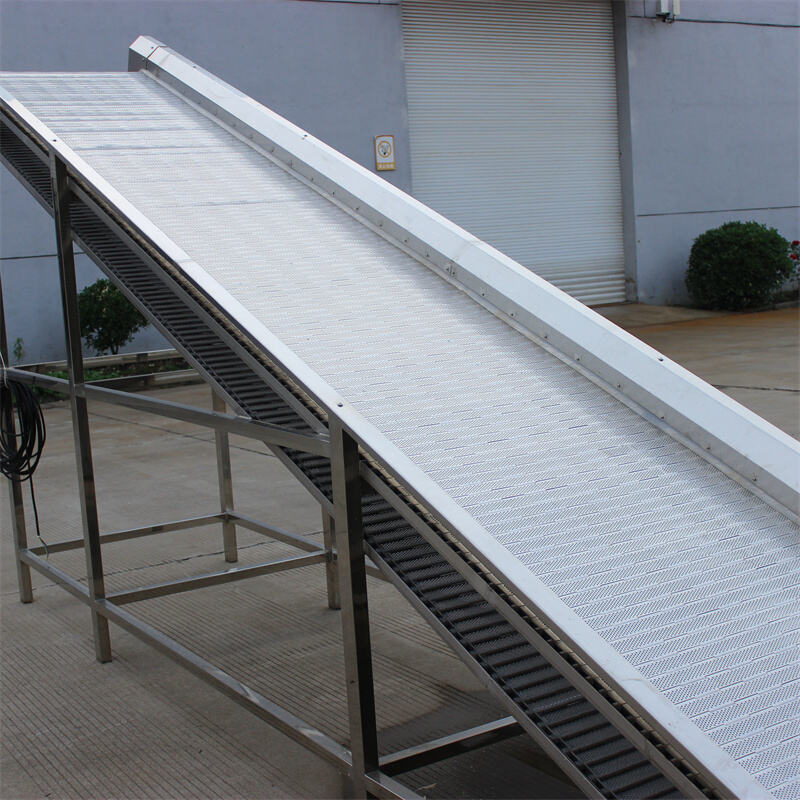

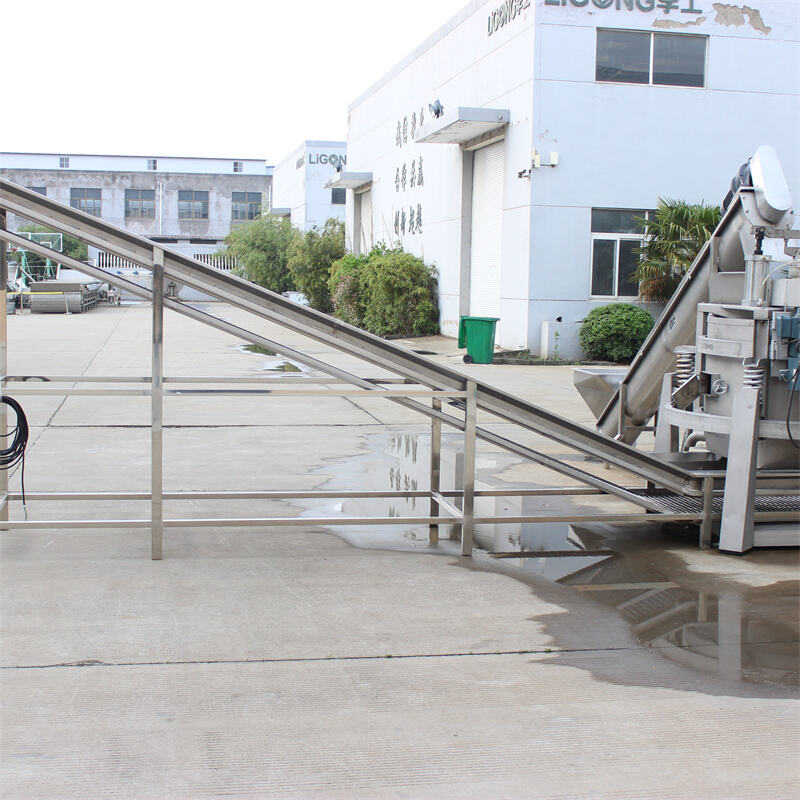

Discharging belt hoist |
Dimensions: Length 4600* width 1500* height 1600mm The width of the board is 1180, and the outer width is 1280 mm Height: 900 mm The motor power is 2.2KW Weight: about 240kg Wall plate 304 stainless steel thickness 1.5mm, square tube 40*60 thickness 2mm |
Screw air compressor |
Dimension: 1900*1200*160mm Weight:950kg Power:55kw, 380v, 50hz, 3-phase Machine material : Carbon steel
|
Storage tanks |
Dimension: 2300*1500*1590mm Volume: 2 cub Machine material : Carbon steel |
