Model |
Dimension (mm) |
Mixing bin size (mm) |
Power (kw) |
Weight (kg) |
LG-700 |
2230*950*1130 |
1500*850*760 |
5.5 |
440 |
|
Brief Introduction |
This mixer is a horizontal positive and negative spiral forced force type. The two inner and outer endless belts push the material axially in opposite directions from the left and right sides to cause convection, shear and diffusion of the materials to achieve uniform mixing If a material buildup is found, the motor is reversed. |
|||
Product information

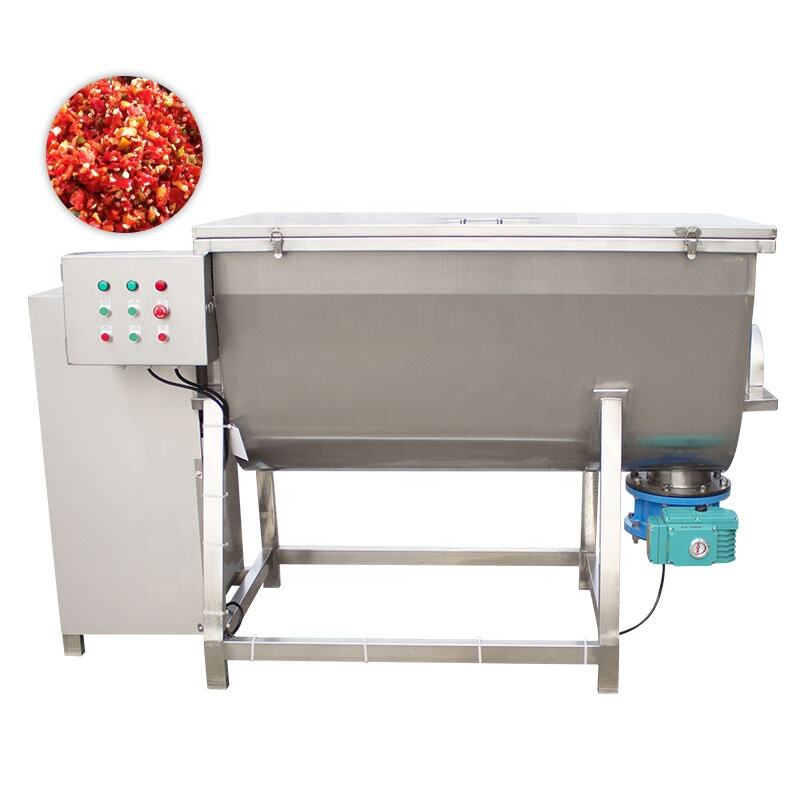

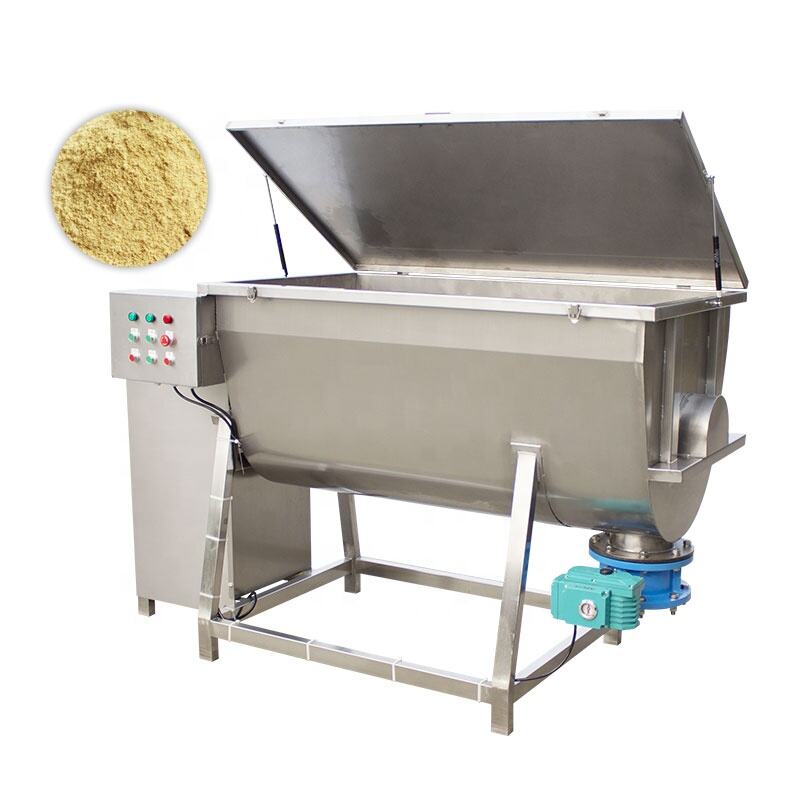

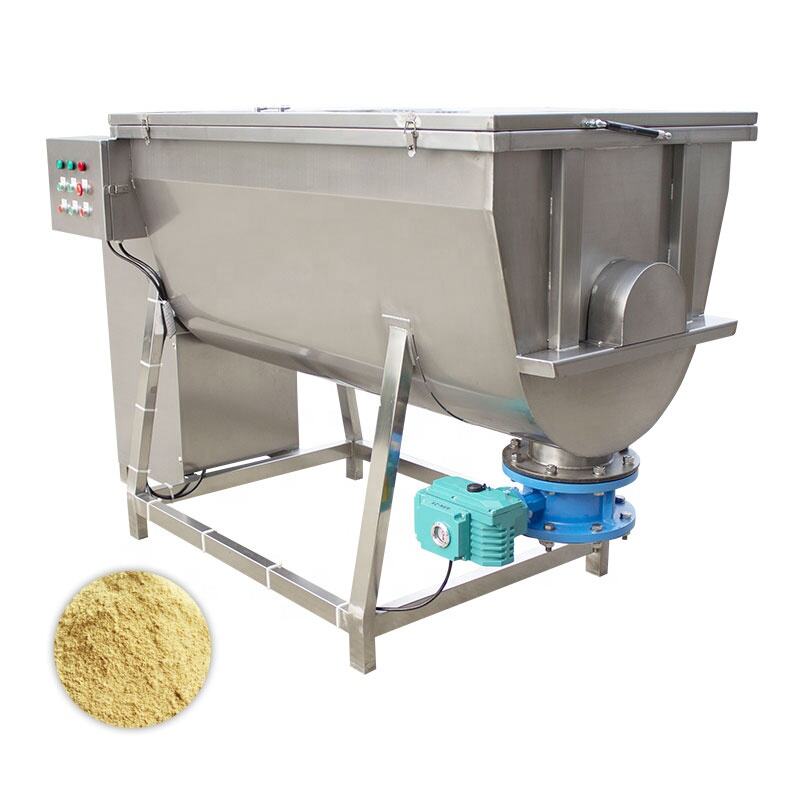

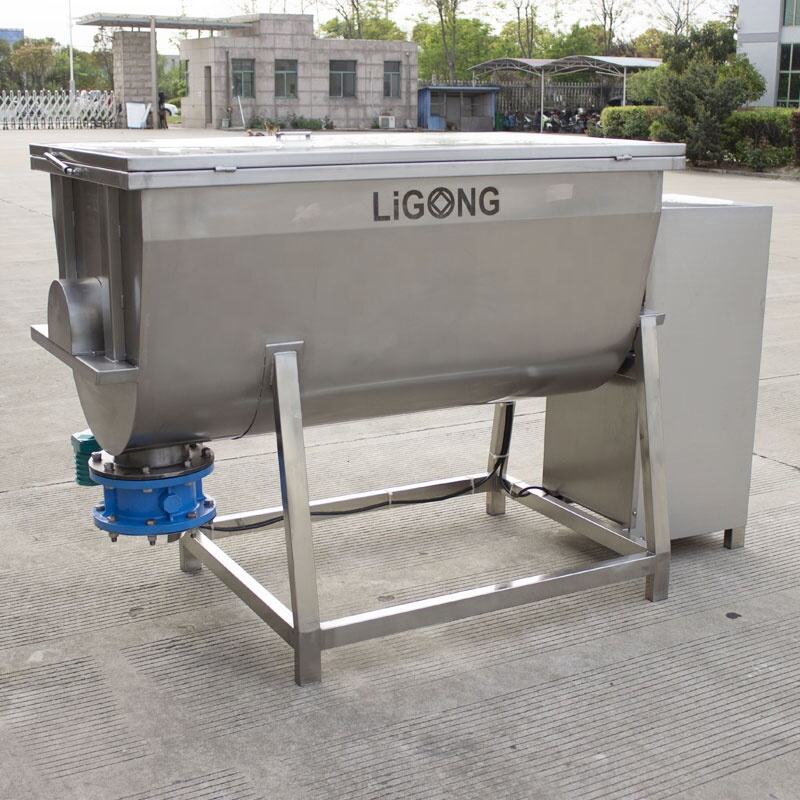

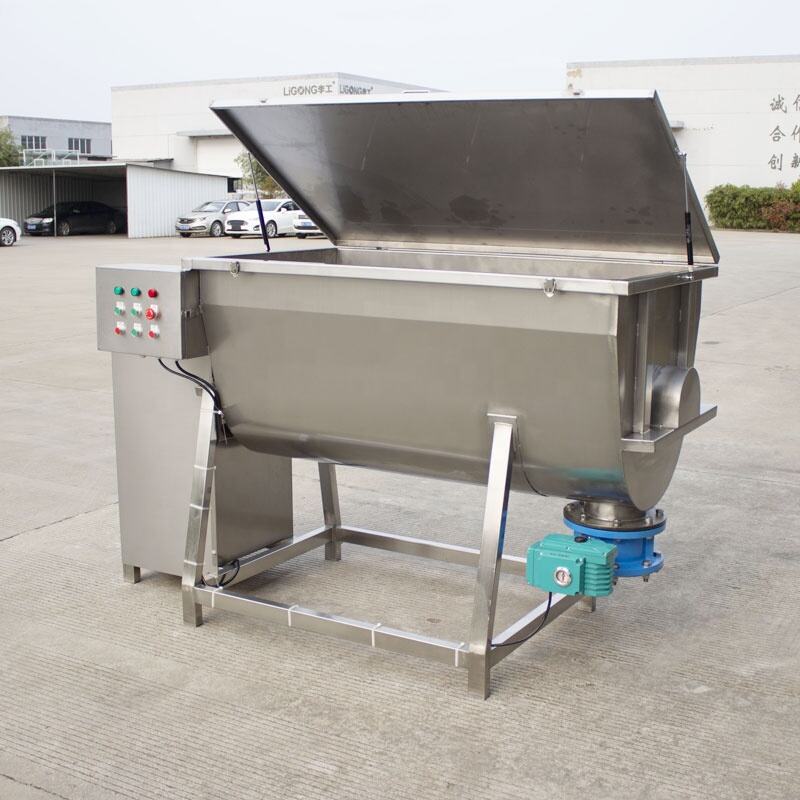

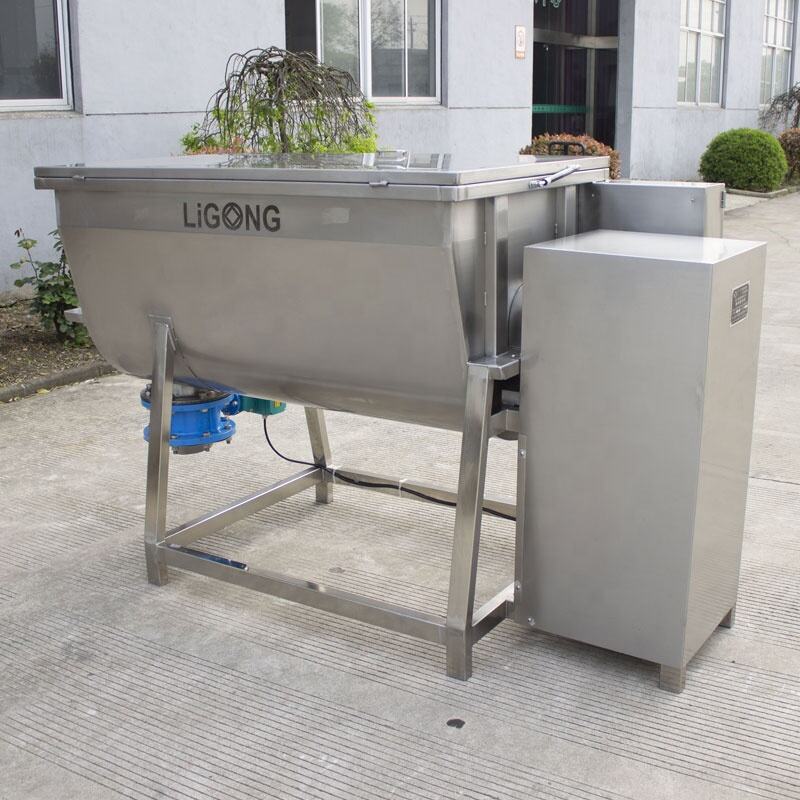

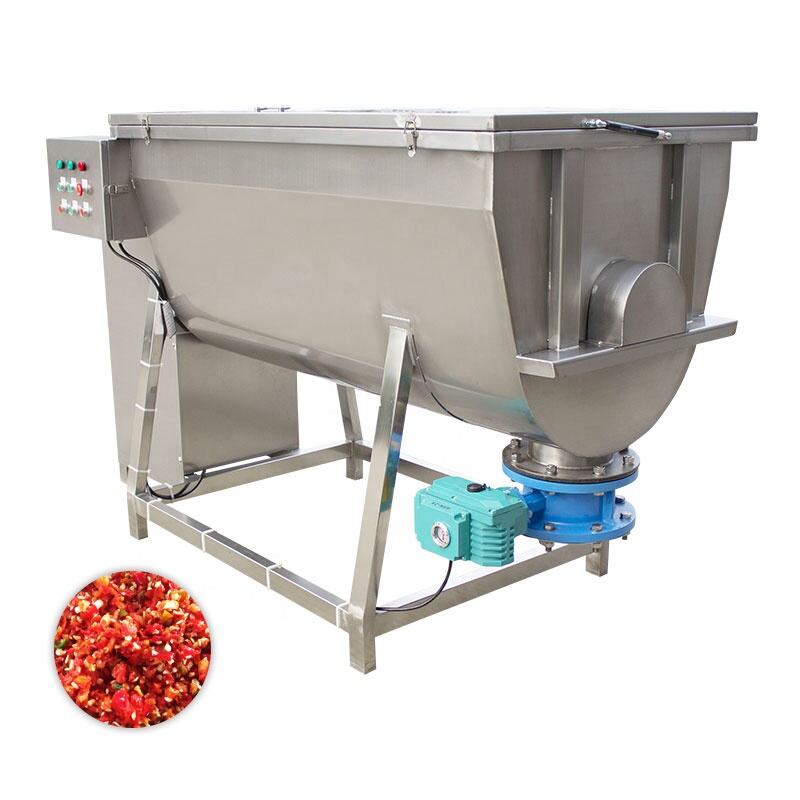

This mixer is a horizontal positive and negative spiral forced force type. The two inner and outer endless belts push the material axially in opposite directions from the left and right sides to cause convection, shear and diffusion of the materials to achieve uniform mixing.
This machine is widely used in the mixing of various elements in vegetable processing, seasoning, food, chemical, medicine, feed and other industries.
Technical parameters
Overall Dimension (mm) |
Imported material size (mm) |
Imported material height (mm) |
Net weight (kg) |
2230*950*1130 |
1500*850 |
1330 |
440 |
|
Mixing bin size (mm) |
Working volume (L) |
Drum volume (L) |
Designed to carry (kg) |
1500*850*760 |
380 |
750 |
300 |
|
Export material size (mm) |
Outlet height (mm) |
Power (kw) |
|
295*275 |
445 |
5.5 |
Note:
According to the different types of materials, you should add less and more, and the mixing time determines the uniformity. Do not mix the hard and sundries in the material, otherwise it will affect the life of the machine.
