Brief Introduction |

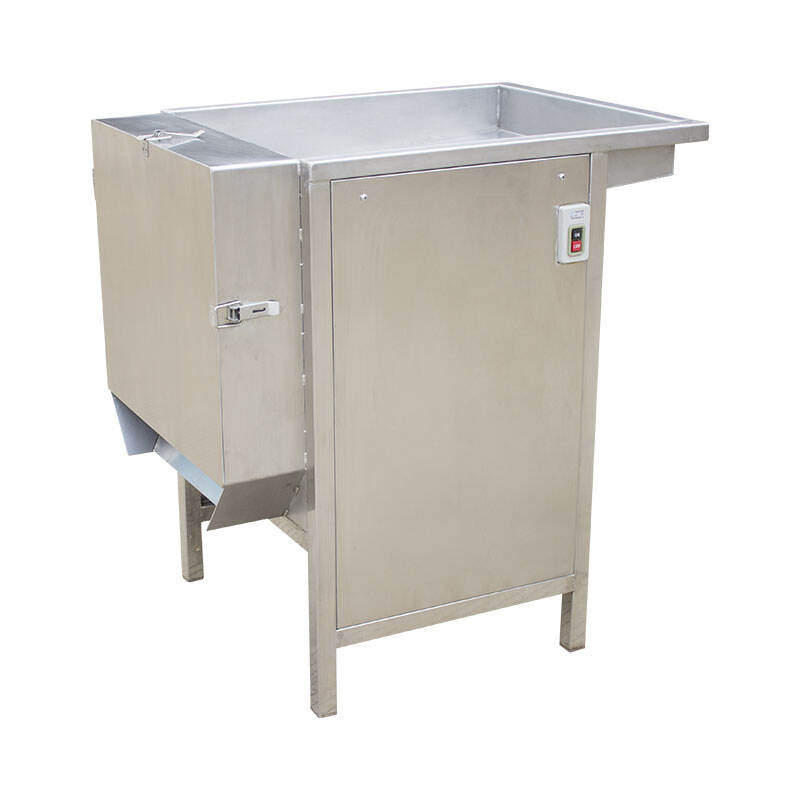

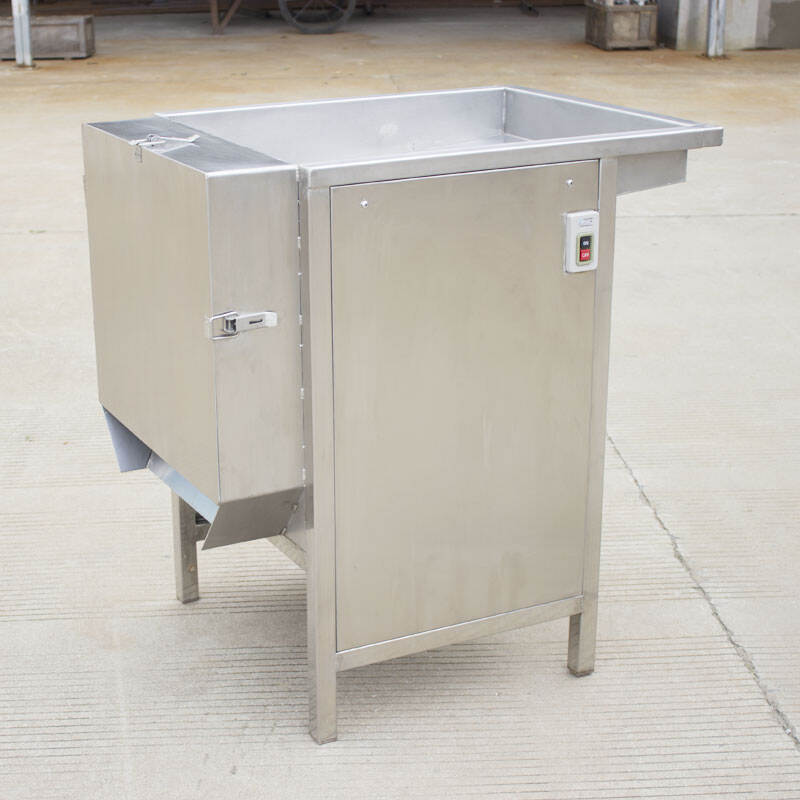

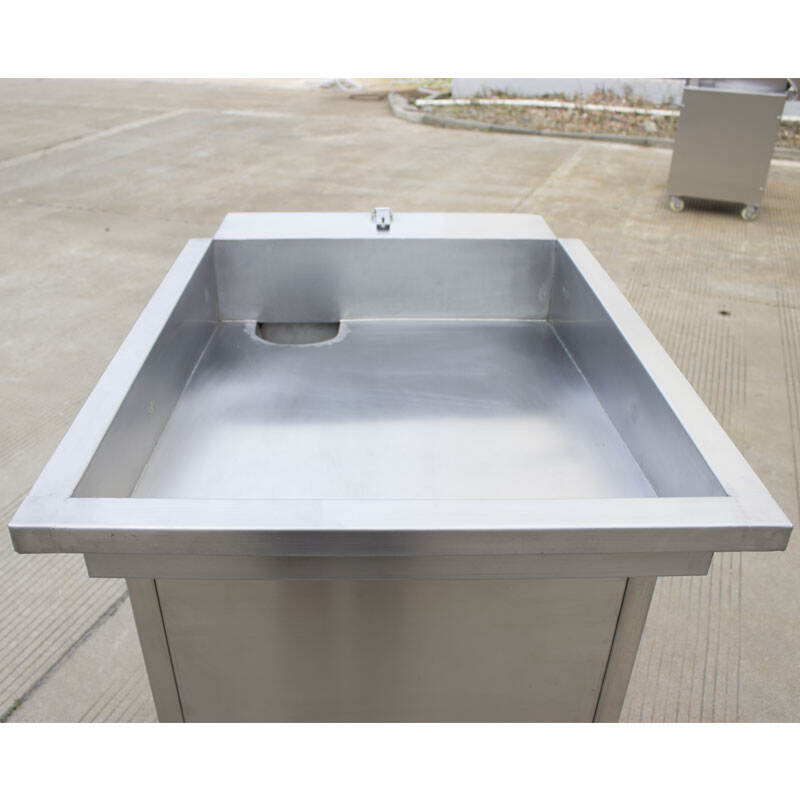

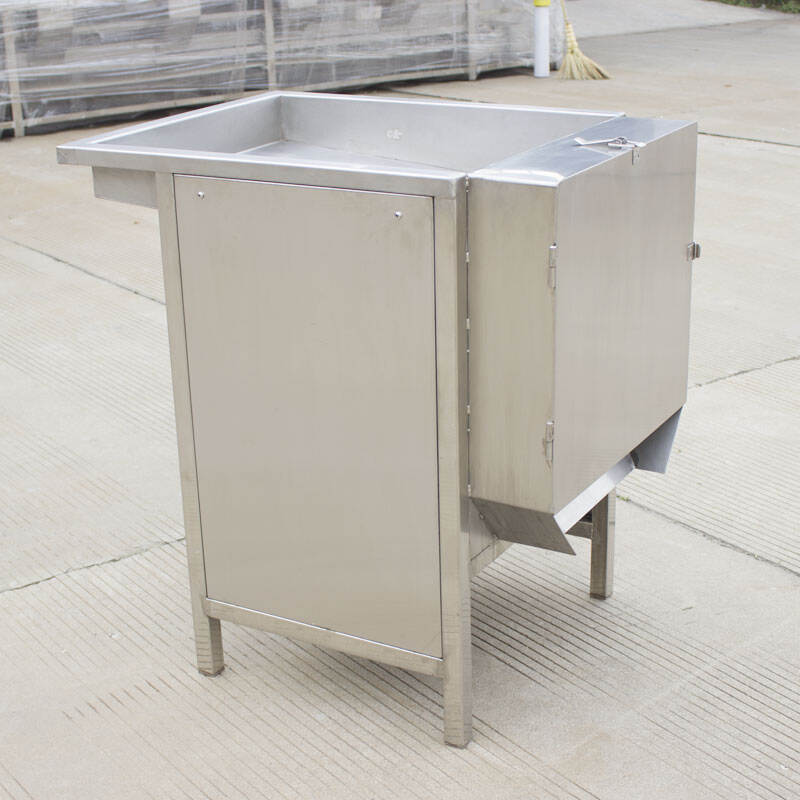

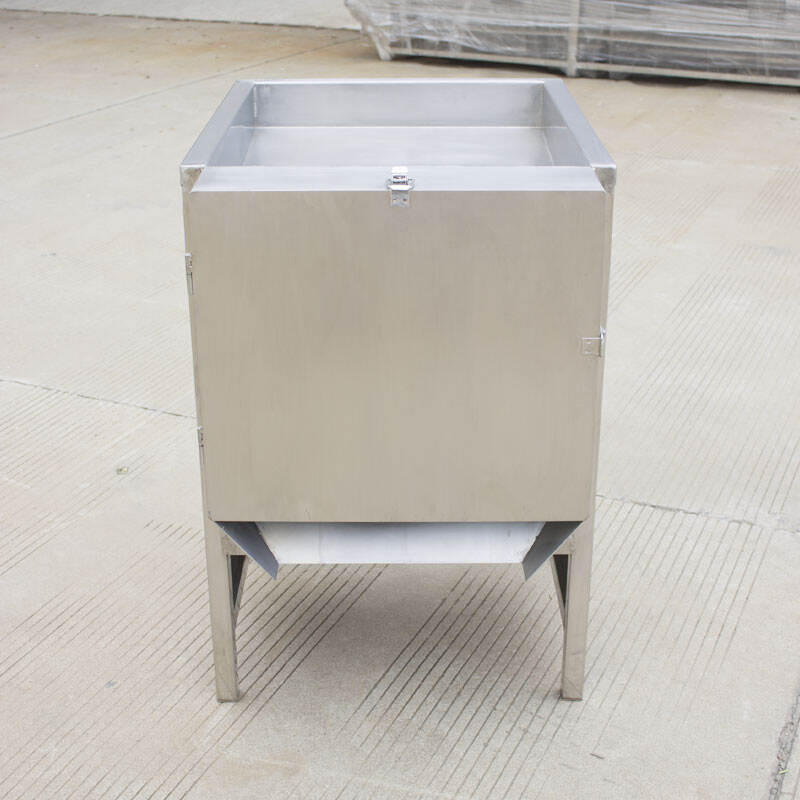

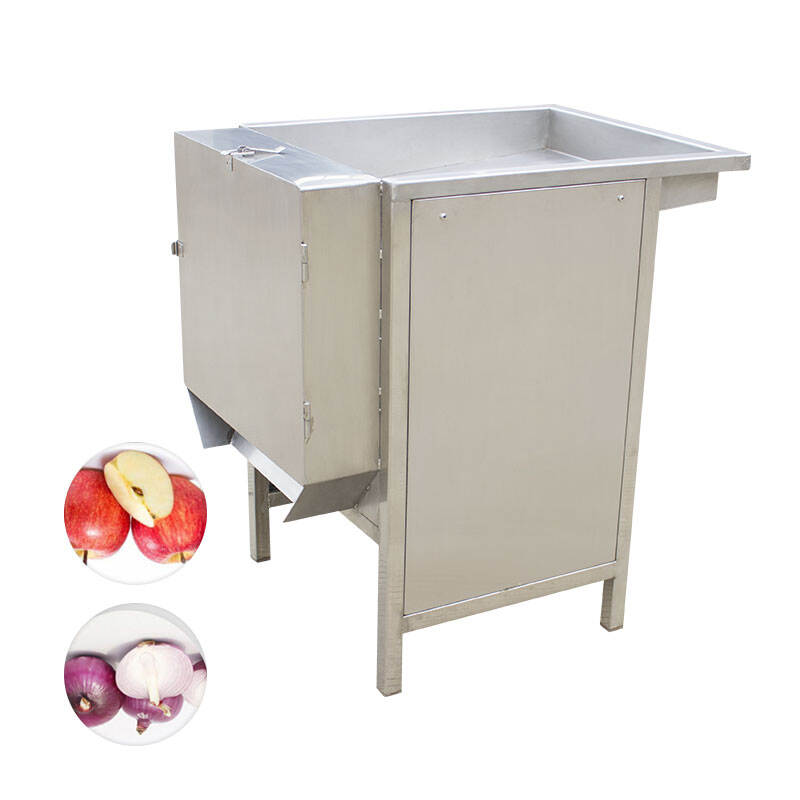

This machine is a new product recently developed by imitation import.Automatic orientation, neat shape, uniform thickness and good surface finish, simple structure. The slicer can easy to use and maintain. The slicer can increase production , where one set of cutter heads is in the opposite direction. Suitable for the food industry on garlic petals, onions, ginger, potatoes, mushrooms and sliced potato root material. |
||||
Technical parameters
Alternator Specifications
(100% Copper Wires Alternator)
Type |
Power |
Rated voltage |
Current |
Y90S-6 |
0.75kw |
380V |
2.3A |
Rated frequency |
Rated speed |
Power Factor |
Efficiency |
50HZ |
910rpm |
0.7 |
72.5% |
Material Insulation Class |
Protection class |
Cooling method |
|
B |
IP54 |
IC411 |
Product information
Dimension (mm) |
Sheet thickness (mm) |
Capacity (kg) |
Cutter head (kg) |

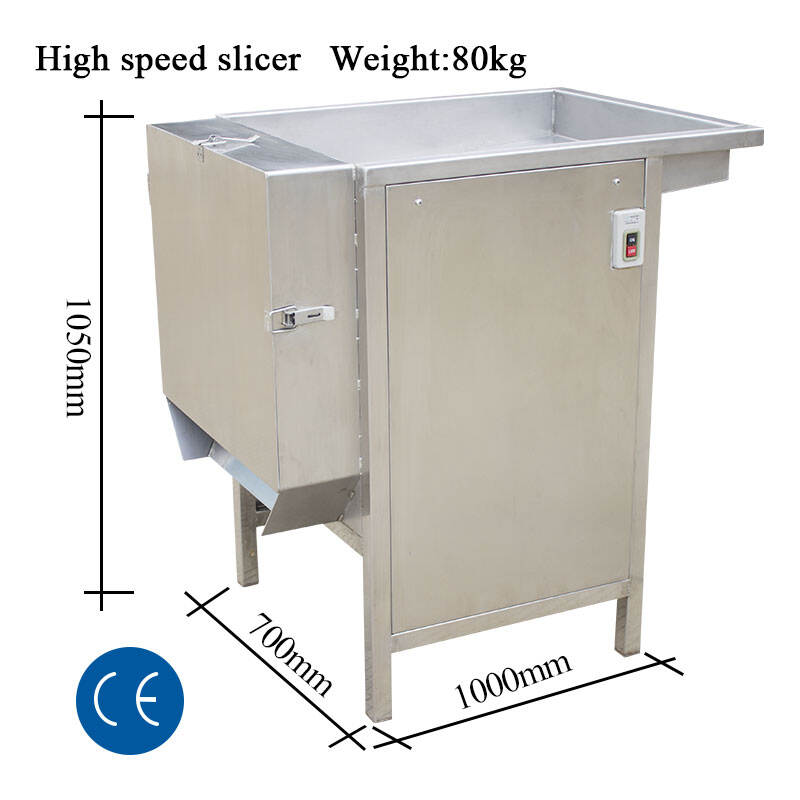

1000*700*1060 |
1.5-8 |
300-1000 |
8kg*2=16kg |
Knife head (mm) |
Texture |
||

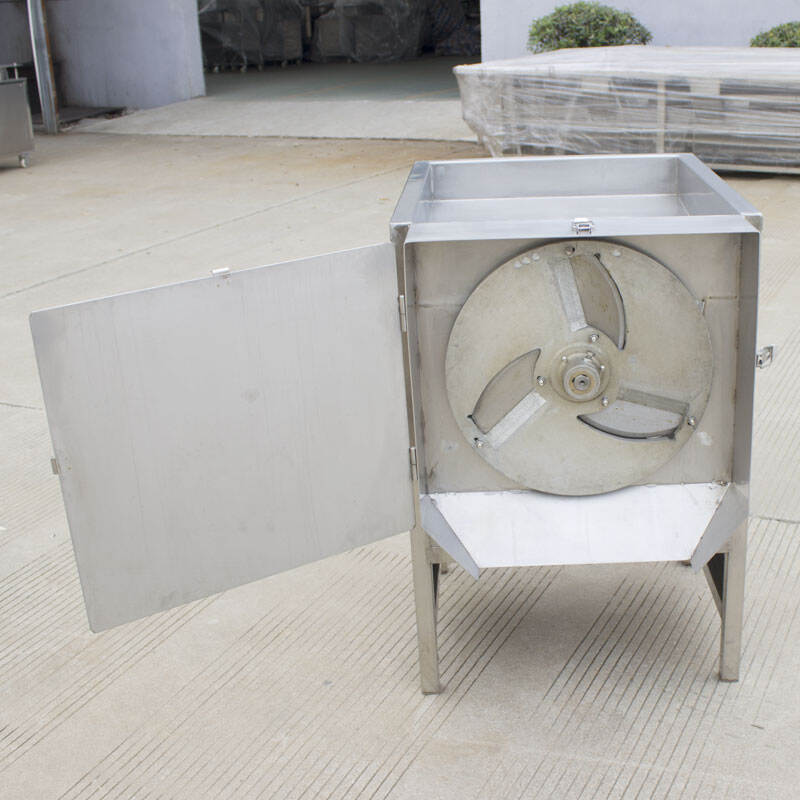

φ500 (3 arc knives) |
304 stainless steel |
Thickness adjustment: 1mm from the factory, blade size higher than the aluminum plate plane = required thickness. Factory with gasket 1~2mm, or as needed, but pay attention to the three knives and all cutting edge height is the same.
Note: no hard objects such as stones are allowed in the material.
We offer a full range of brand new high quality products. Each unit is strictly tested in the factory.
