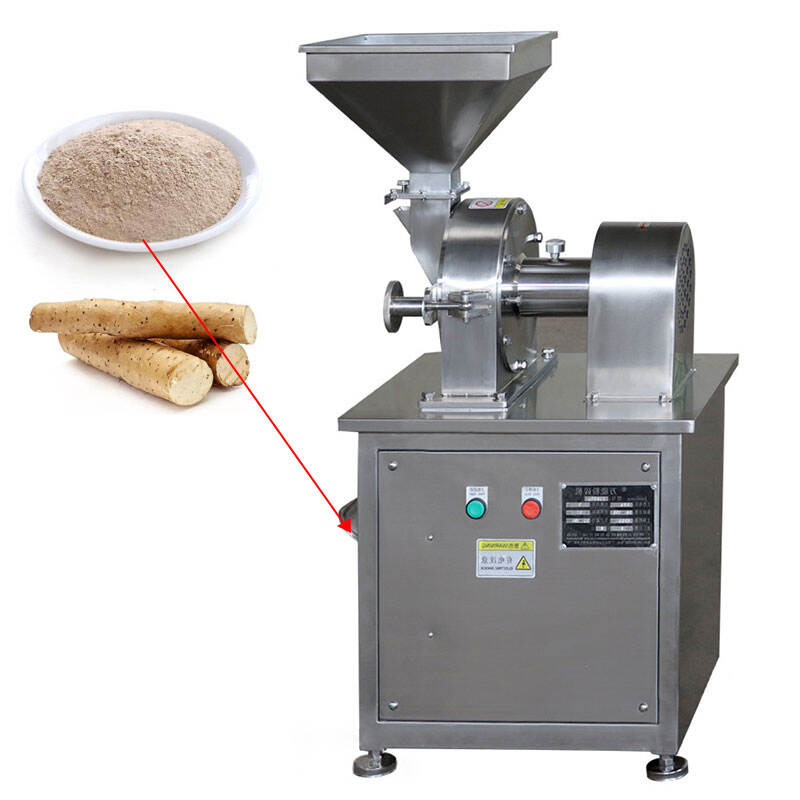

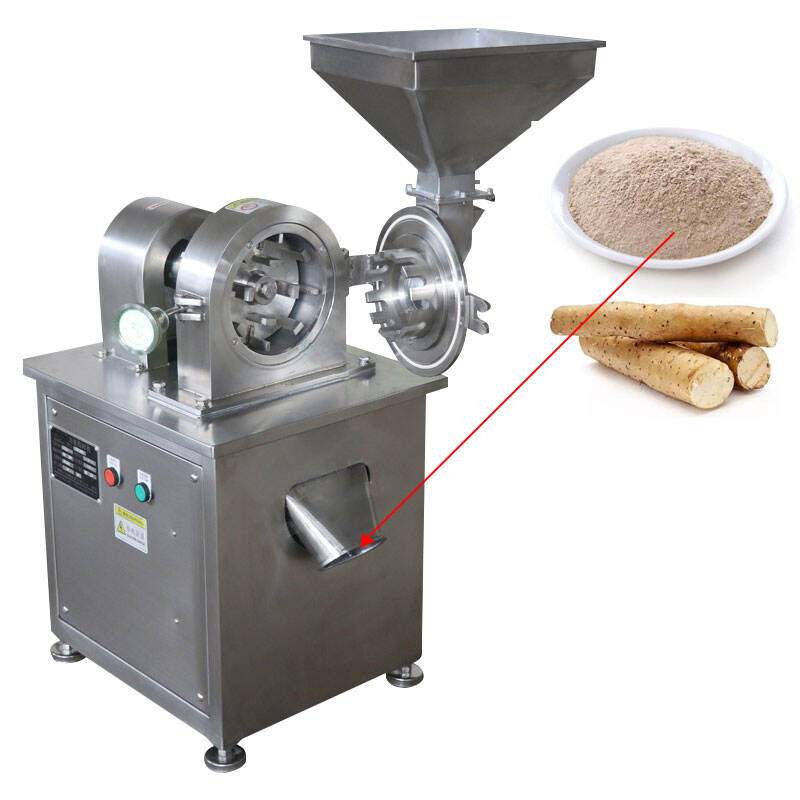

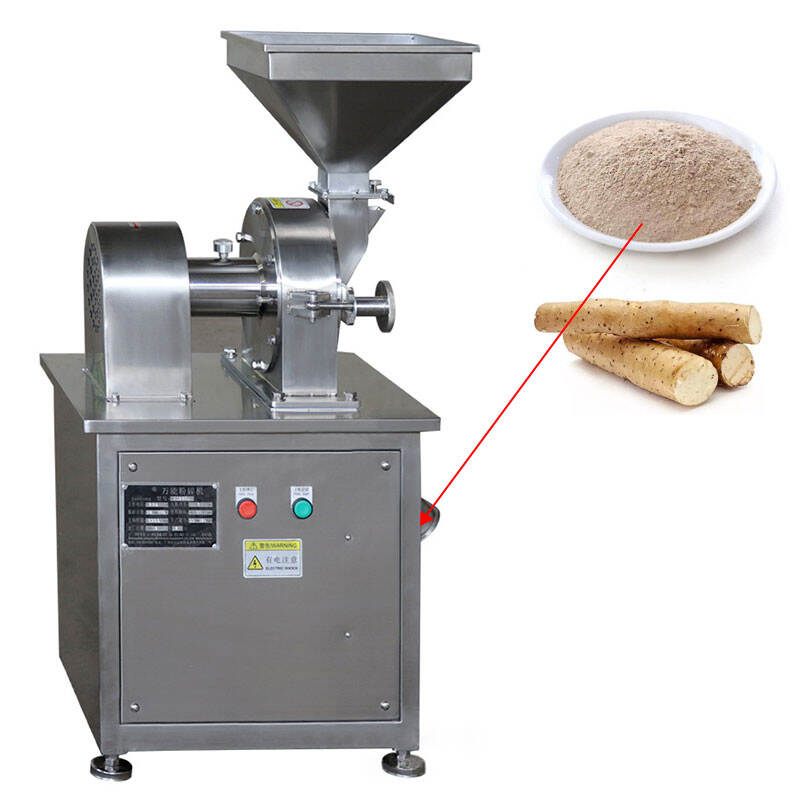

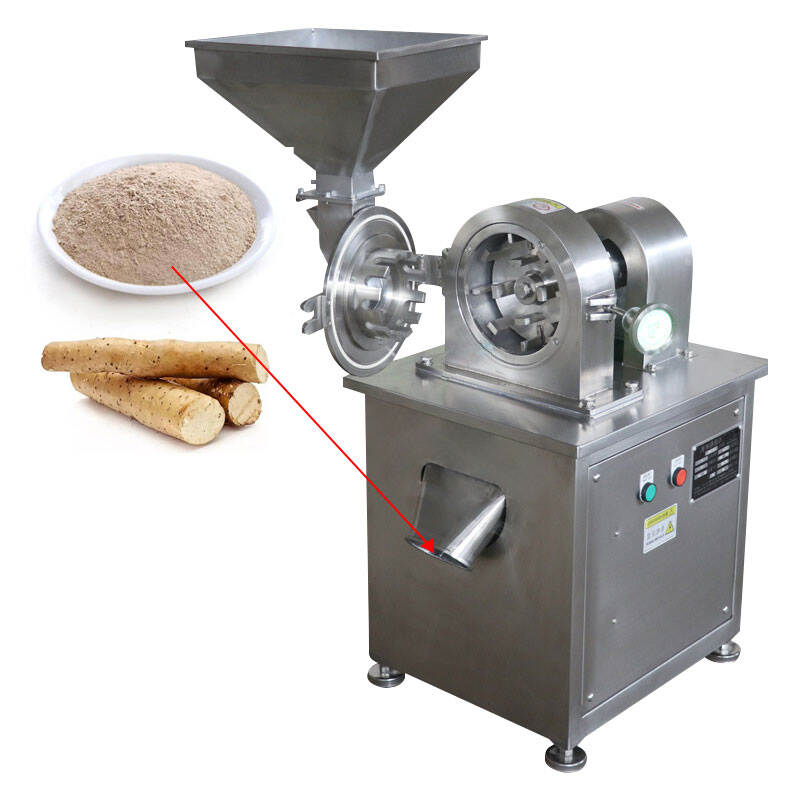

The B-Series Universal Pulverizer is an essential piece of equipment for the food, chemical, and pharmaceutical industries. Utilizing high-speed relative motion between the movable and fixed gear discs, materials are crushed through impact, friction, and collision.
This machine is highly effective for processing dehydrated vegetables (such as yam, ginger, garlic), spices, herbs, and grains into fine, uniform powder.
Below are the detailed parameters for our standard B-Series models. Please select the model that matches your production requirements.
|
Model |
Production Capacity (kg/h) |
Spindle Speed (r/min) |
Max Inlet Size (mm) |
Grinding Fineness (mesh) |
Main Motor (kW) |
Dust Collector (kW) |
Dimensions L×W×H (mm) |
|
20B |
60 - 150 |
4500 |
6 |
60 - 150 |
4.0 |
0.55 |
950×600×1500 |
|
30B |
100 - 300 |
3800 |
10 |
60 - 120 |
5.5 |
0.75 |
1150×650×1600 |
|
40B |
160 - 800 |
3400 |
12 |
60 - 120 |
7.5 |
1.1 |
1300×750×1700 |
|
50B |
200 - 1400 |
3200 |
12 |
60 - 120 |
11.0 |
3.0 |
1400×800×1750 |
Integrated Dust Collection: Equipped with a dedicated dust suction motor (0.55kW to 3kW) to ensure a clean, dust-free working environment.
High Efficiency: The high-speed spindle (up to 4500 r/min) ensures rapid processing of even hard, fibrous materials like dried yam.
Adjustable Fineness: Grinding results can be adjusted between 60 to 150 mesh by changing the internal sieve/screen.
Heat Dissipation: Designed for continuous operation with optimized airflow to prevent material degradation due to heat.
Inspection: Before startup, check the grinding chamber for any foreign metallic objects. Ensure the SUS304 screen is properly installed.
Startup: Turn on the dust collection system first, then start the main pulverizing motor.
Feeding: Gradually feed materials through the hopper. Ensure the particle size is within the model's limit (6mm - 12mm).
Discharge: The powder is automatically discharged through the outlet into the collection bin or bag.
Material Prep: Ensure materials are dry. Oily or sticky materials may require specialized blade configurations.
Sanitization: The polished SUS304 surface allows for easy wash-down. Use food-grade detergents.
Safety Warning: Never open the grinding chamber while the spindle is rotating. Wait for the machine to come to a complete stop.
Blade Care: Regularly inspect the movable gear discs for wear to maintain consistent fineness.
