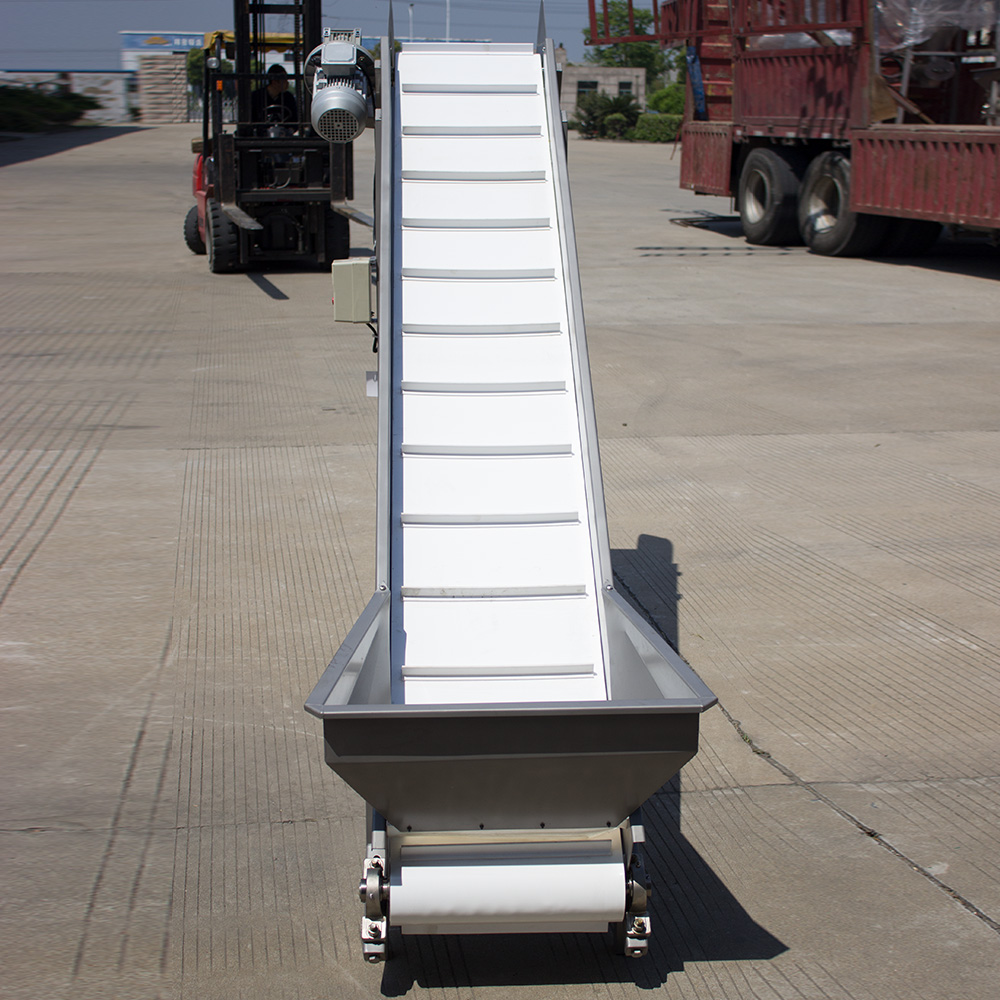

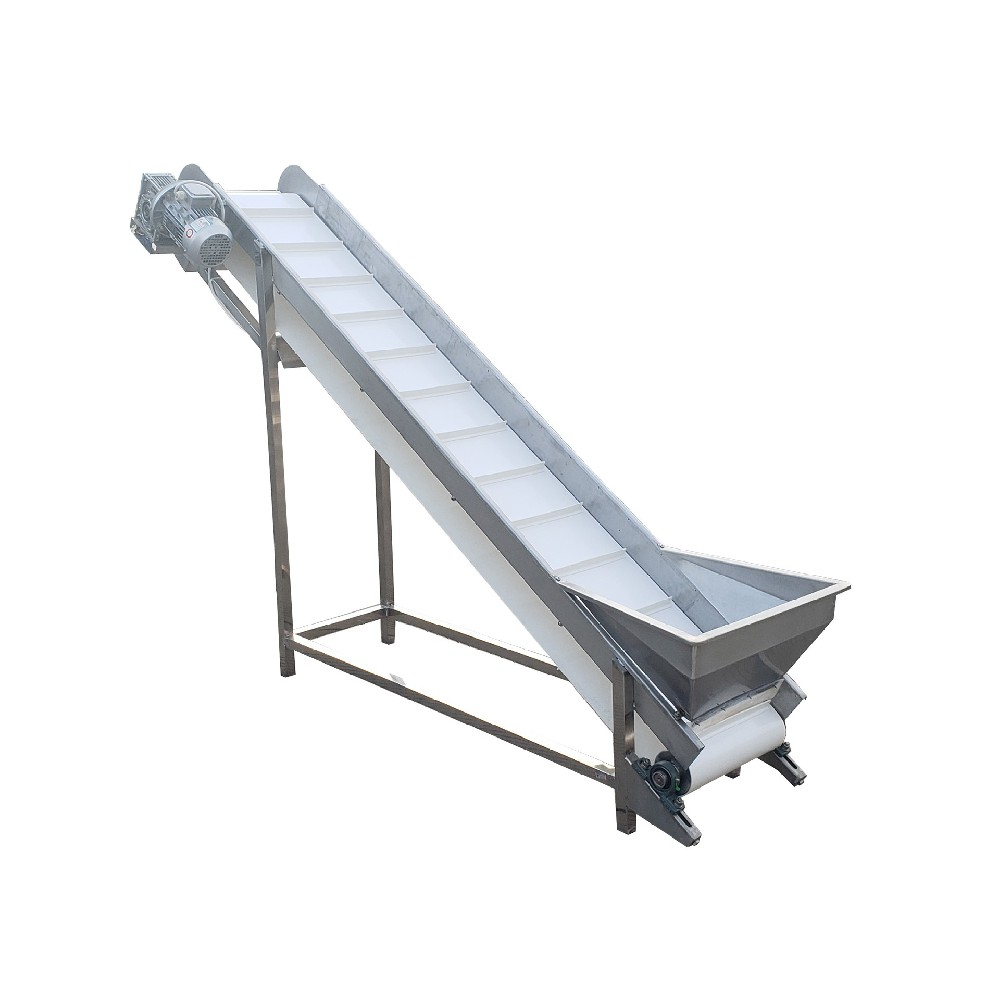

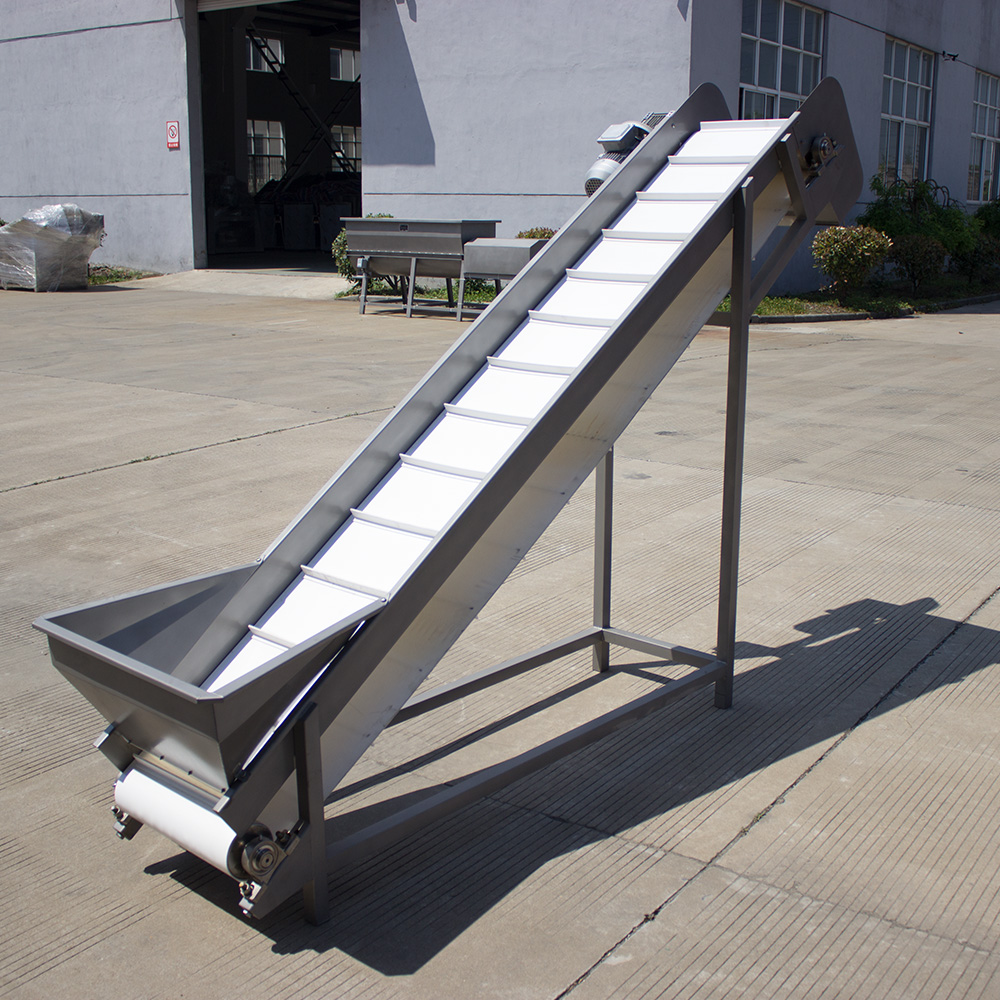

LG-1350 Belt Conveyor

The Industrial Belt Conveyor, manufactured by Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD, is a high-efficiency transport solution designed for the continuous movement of various fruits and vegetables. It is ideal for feeding materials into washing lines, sorting tables, or packaging systems.

• Target Materials: Carrots, green onions, leafy vegetables, fruits, and other root crops.
• Core Material: The frame is constructed from high-quality SUS 304 stainless steel, ensuring durability and hygiene in wet processing environments.

Food-Grade Belt: Uses a high-strength, food-grade PVC or PU belt that is non-toxic, odorless, and easy to sanitize.

Smooth Inclination: Designed with a gentle incline to ensure stable transport without damaging delicate produce.

Sanitary Design: The open-frame stainless steel structure allows for quick wash-downs and prevents the buildup of debris or bacteria.

Stable Base: Equipped with heavy-duty adjustable foot pads to ensure stability on uneven factory floors.

We specialize in bespoke engineering. All dimensions and configurations can be fully customized to match your existing production line.

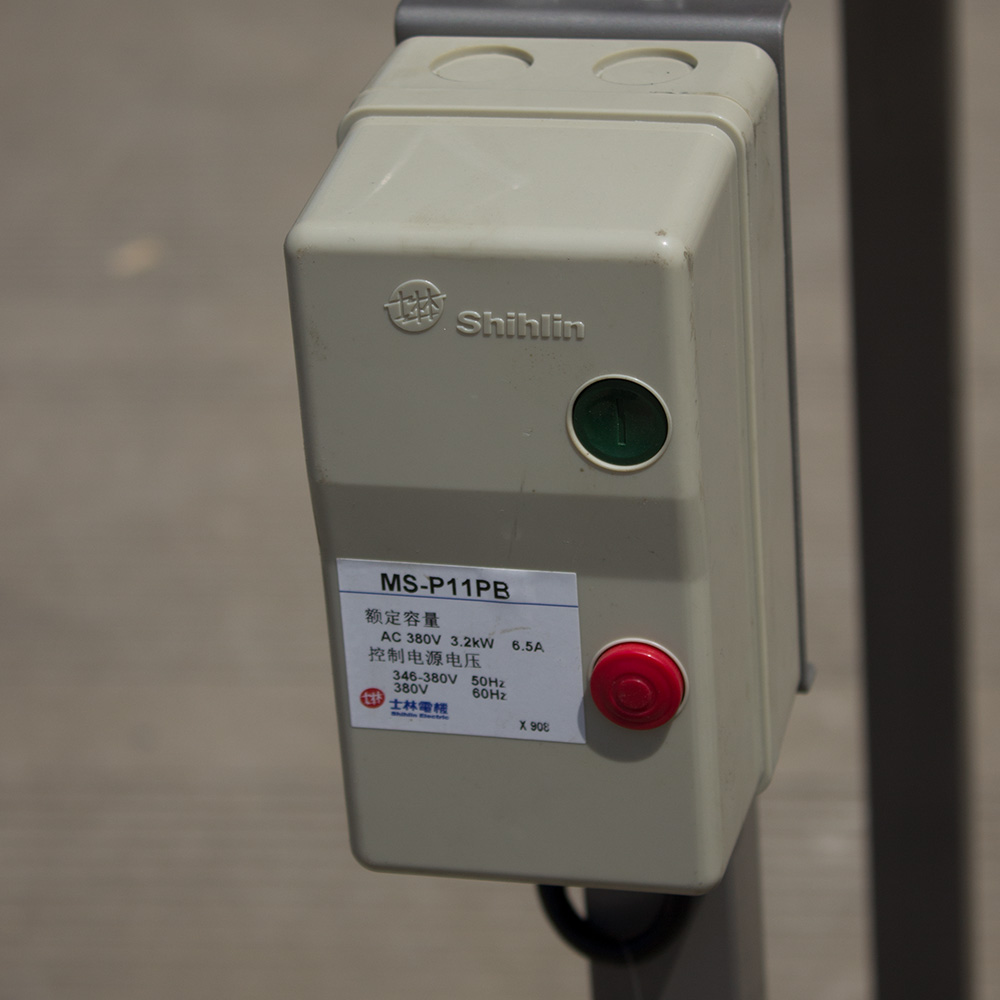

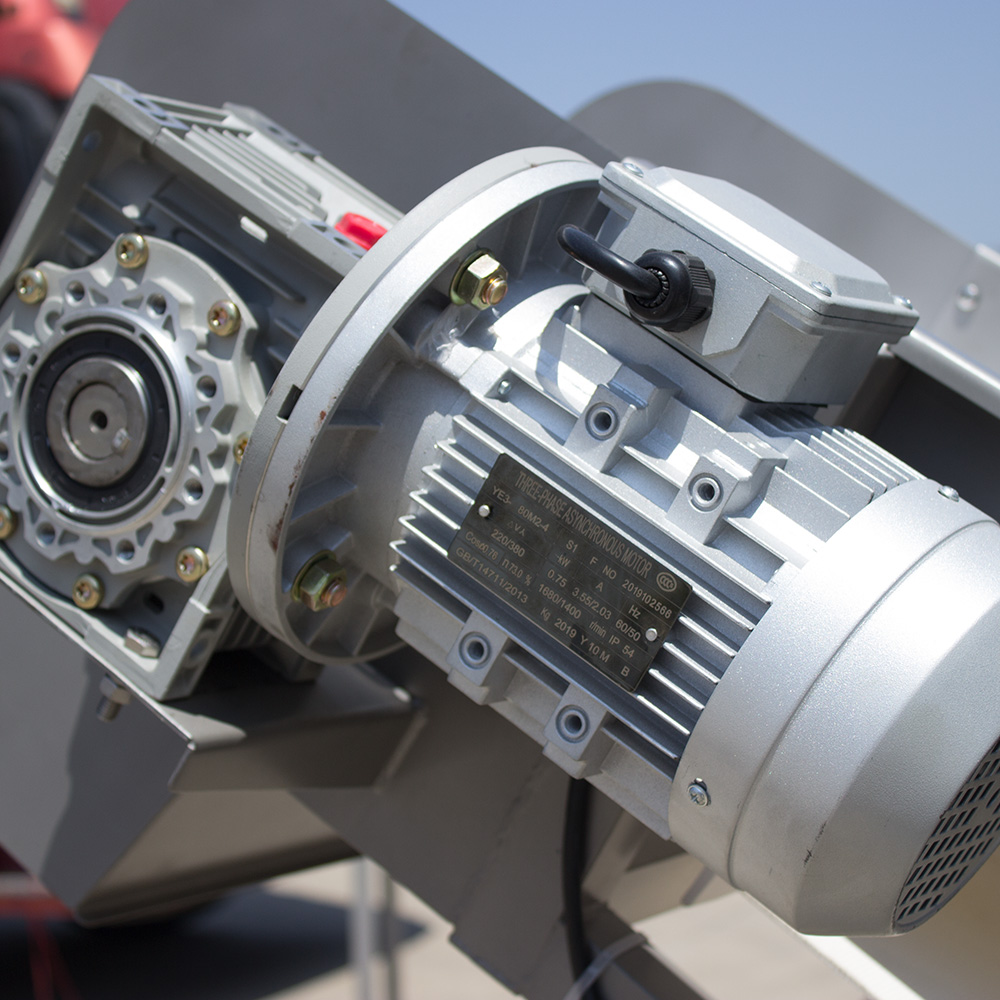

Preparation: Ensure the belt is properly tensioned and centered. Verify that the power supply matches the motor specifications.

Startup: Switch on the conveyor first. Once the belt is running smoothly, begin loading materials onto the intake section.

Speed Control: If equipped with a Variable Frequency Drive (VFD), adjust the belt speed to match the pace of your sorting or processing staff.

Shutdown: Stop the material flow and allow the belt to clear before turning off the power.

Daily Sanitization: After each production shift, wash the belt and the SUS 304 frame with food-grade detergent and high-pressure water.

Belt Tracking: Regularly check the belt alignment to prevent edge wear. Adjust the tension rollers if the belt drifts to one side.

Bearing Lubrication: Apply food-grade grease to the drive and tail rollers periodically to ensure smooth operation.

To provide an accurate technical drawing and quotation, please specify:

• Desired Conveying Length and Width.
• Input and Output Heights.
• Required Belt Speed (Fixed or Variable).

Jiangsu Ligong Fruit and Vegetable Machinery Co. LTD

A leading exporter of automated processing machinery for global agricultural markets.
