LG-1000 Chain-type Garlic

The LG-1000 is a high-capacity, industrial-grade garlic peeling solution. Engineered with a chain-driven conveyor and advanced pneumatic technology, it ensures continuous, high-speed production while maintaining the highest food safety standards.

• Model: LG-1000 Garlic
• Material: Full SUS304 Food-grade Stainless Steel
• Core Technology: High-pressure air peeling (Dry type)

The following parameters are specific to the LG-1000 model:

To ensure the 1,000 kg/h capacity and 98%+ peeling rate, please adhere to the following environmental requirements:

• Air Supply: A stable air compressor capable of delivering 8.5 m³/min is required.
• Pressure Stability: The working pressure must be maintained at 0.9 MPa for optimal peeling efficiency.
• Electrical: Ensure a stable 3-phase 380V power connection to support the 3 kW drive system.

High Volume Output: Designed for heavy-duty industrial use with a 1-ton per hour processing capacity.

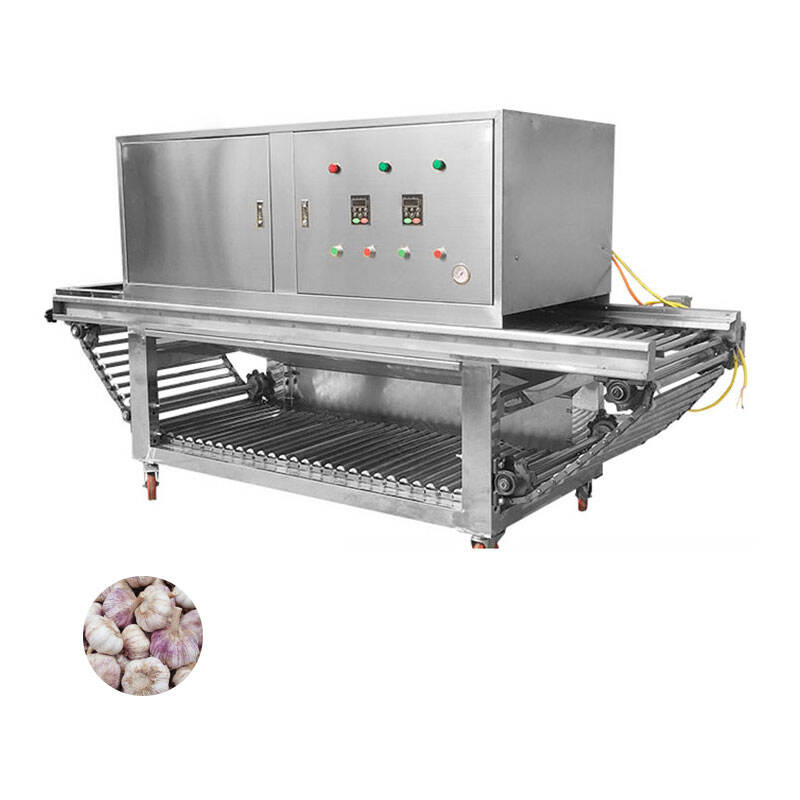

Chain-Driven Precision: The stainless steel chain conveyor ensures uniform movement through the peeling chamber, visible in photobank-2.jpg.

Dual Control System: Independent VFDs manage both the feeding speed and the peeling intensity.

SUS304 Durability: The entire frame and all contact parts are made of SUS304 for easy cleaning and long-term durability in wet environments.

Weight Handling: Due to the 560 kg weight, ensure the machine is placed on a reinforced, level concrete floor.

Pneumatic Care: Regularly discharge water from the air filters to protect the internal pneumatic valves.

Emergency Protocol: In case of pressure drops below 0.8 MPa, the peeling quality may decrease; check the air supply immediately.
